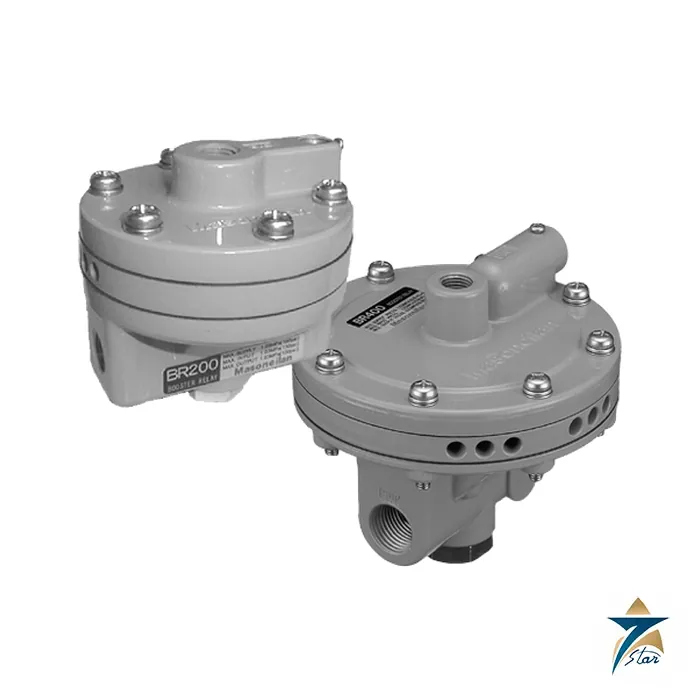

Masoneilan BR200 High Capacity Volume Booster Relay

Overview

The Masoneilan BR200 is a high-capacity pneumatic volume booster relay designed to accelerate the stroking speed of diaphragm and piston actuators on control valves. Manufactured by Baker Hughes under the Masoneilan brand, the BR200 sits between a positioner or controller output and the actuator, amplifying the available flow of instrument air so that large actuator volumes fill and vent far faster than the signal source alone could achieve. This makes it a standard accessory wherever a control loop demands fast, stable dynamic response – particularly on larger control valves where actuator volume would otherwise create sluggish, unstable stroking.

Seven Star LLC supplies the Masoneilan BR200 booster relay as an authorized-partner channel to control valve users across Oman and the GCC, supporting refineries, gas plants, and petrochemical facilities that standardize on Masoneilan control valve instrumentation. Because the BR200 is often specified as a matched accessory to a specific actuator and positioner combination, our engineering team can help confirm the correct booster relay sizing (BR200 versus the higher-capacity BR400) against your actuator volume and required stroking time before ordering.

Measurement and Operating Principle

The BR200 operates on a 1:1 input-to-output pressure ratio using a balanced diaphragm design. The controller or positioner’s signal pressure acts on the upper diaphragm, producing a force that is opposed by output pressure acting on the lower diaphragm through a seal plate orifice. When the input signal pressure rises, the upper diaphragm depresses and opens the pilot valve, admitting full supply pressure to the output until the output pressure re-balances the two diaphragms. When the input signal falls, the exhaust valve opens and vents the output rapidly until it matches the new, lower signal value.

Because the booster draws directly from the plant air supply rather than throttling it through the positioner’s small internal ports, the Masoneilan BR200 dramatically reduces actuator fill and exhaust time. A built-in bypass valve with a locking screw allows the flow sensitivity to be tuned in the field, letting technicians dial in stable, non-hunting control for small or slow-changing signals while retaining fast response to larger step changes – a key advantage on control valve applications with demanding stroking-time specifications.

Engineering Design

The Masoneilan BR200 is built with an aluminium alloy die-cast body and case, chloroprene/polyester upper and lower diaphragms, and austenitic stainless steel internals including the coil spring, plug, and bypass valve plug, giving it a corrosion-resistant construction suited to outdoor and coastal installations. Integrated filters on both the supply and signal ports protect the internal pilot mechanism from airline particulate, extending service life in plants where instrument air quality can vary. The BR200 delivers a maximum Cv of 1.2 on both supply and exhaust flow paths, handles signal and supply pressures up to 150 psi (10.3 bar), and operates across an ambient temperature range of -30 °C to +83 °C, with low-temperature (-55 °C to +60 °C) and high-temperature (0 °C to +100 °C) variants available for extreme climates.

Connections are 1/4-inch NPT or Rc on the supply, output, and signal ports, and the compact body (roughly 86 mm diameter, 82 mm depth, weighing approximately 0.7 kg) mounts easily onto existing positioner or yoke brackets without requiring major piping rework. For larger actuators needing more flow, the mechanically similar BR400 model steps up to a 2.6/2.4 Cv rating in a proportionally larger body, letting Masoneilan users standardize the same booster relay principle across a full range of valve sizes.

Masoneilan BR200 Key Features

• Masoneilan BR200 booster relay delivers a 1:1 input/output ratio with fast, stable stroking on diaphragm and piston actuators
• Built-in bypass valve with locking screw for field-adjustable sensitivity and dynamic response tuning
• Integrated supply and signal port filters protect internals from airline particulate
• Corrosion-resistant aluminium alloy die-cast body with stainless steel internals
• Maximum Cv of 1.2 (supply and exhaust) suited to a wide range of standard control valve actuators
• Rated to 150 psi (10.3 bar) maximum supply and signal pressure
• Operating temperature range of -30 °C to +83 °C, with low- and high-temperature variants available
• Compact 1/4-inch NPT/Rc connections mount directly onto existing positioner and yoke brackets

Industrial Applications for the Masoneilan BR200

The Masoneilan BR200 is fitted wherever a pneumatic control valve actuator needs faster fill and exhaust times than the positioner alone can deliver – large globe and butterfly control valves on refinery distillation columns, gas plant pressure control loops, and any process where stroking-time specifications are tight enough that actuator volume becomes the limiting factor. It is equally suited to diaphragm and piston actuators, making it a flexible accessory across a plant’s control valve population.

Seven Star LLC, as an authorized Masoneilan partner serving Oman and the GCC, supplies the BR200 to control and instrumentation teams in Muscat, Sohar, Duqm, and Salalah upgrading or maintaining Masoneilan-equipped control valve loops. Our team can verify the correct booster relay model, port sizing, and temperature variant against your actuator and positioner configuration prior to shipment, helping avoid stroking-time shortfalls discovered only after installation.

Masoneilan BR200 Technical Specifications

Request a Quote

Contact Seven Star LLC for pricing, lead time, and technical support on the Masoneilan BR200 booster relay for your control valve actuation project in Oman and the GCC.

Seven Star LLC maintains a dedicated Masoneilan BR200 supply channel for Oman-based EPC contractors and plant maintenance teams needing quick-turnaround booster relay replacements.
