Brand: JUMO

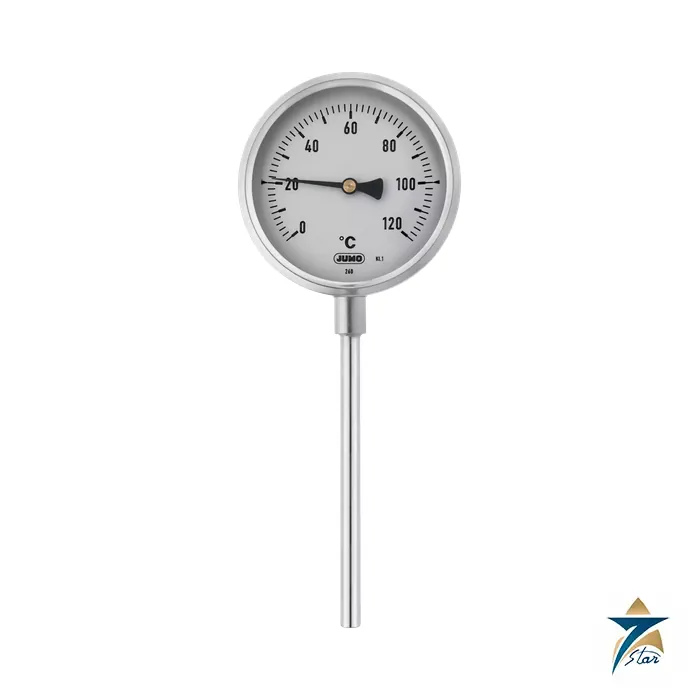

JUMO 608002 Bimetal Dial Thermometer, Industry Version

Name: JUMO 608002 Bimetal Dial Thermometer | Seven Star LLC
Brand: JUMO
SKU: 608002

Description

Local-reading bimetal dial thermometer for liquids and gases

The JUMO 608002 is a locally indicating bimetal dial thermometer in the industry version. A bimetal coil sits inside a stainless steel or brass protection tube and is exposed to the medium temperature. As the temperature rises or falls the coil rotates, and an axis passes that rotation straight to the pointer, so the reading is proportional to the temperature change and needs no auxiliary power.

All versions of the 608002 comply with DIN EN 13190, class 1. The case and bezel are stainless steel, the scale is polished aluminum with black lettering, and the front pane is glass. Case diameters of 60, 80 and 100 mm let you choose between a compact panel-side gauge and a larger dial that can be read from a distance.

Two design types are offered. Design type 01 is the radial form with the stem leaving the rear of the case, while design type 18 uses an adjustable aluminum bracket so the dial can be turned toward the operator. Both use the same measuring system and the same list of display ranges.

Because the measuring system is purely mechanical, the instrument keeps working during a power failure and adds no electronics that need maintenance. The time constant of about 20 seconds in flowing water means it follows normal process changes, though it is not meant to catch fast transients.

Technical specifications

Parameter	Specification
Type	608002; basic type extensions 0160, 0180, 0110 (design 01) and 1860, 1880, 1810 (design 18)
Measuring principle	Bimetal coil in a protection tube; pointer driven directly by the coil axis
Accuracy class	Class 1 according to DIN EN 13190, linear scale
Display ranges	Twelve ranges from -50 to +50 °C up to 0 to +500 °C (codes 632, 643, 469, 357, 810, 814, 818, 832, 834, 840, 848, 854)
Tolerance	+/-1.0 K on the small ranges, +/-2.0 K at 0 to 200 °C, +/-2.5 K at 0 to 250 °C, +/-5.0 K at 300 to 500 °C display ranges
Case sizes	60 mm, 80 mm or 100 mm diameter; case and bezel in stainless steel
Protection type	IP54 according to DIN EN 60529; IP65 with extra code 404
Front pane	Glass; acrylic glass (PMMA) with extra code 404
Time constant	Approx. 20 s (t0.632) in flowing water with a 10 mm stainless steel probe
Ambient influence	No influence of ambient temperature on the reading; limit temperatures -30 to +80 °C
Process connections	Protection tube types TA 01 to TA 08 and SH 04, SH 05, SH 07, SH 09; threads G 3/8, G 1/2, G 3/4 or 1/2-14 NPT
Probe diameter / material	6, 10, 12, 14 or 17 mm depending on connection; stainless steel CrNi 1.4571
Insertion length	100 mm, 150 mm, 200 mm or special lengths in 50 mm steps

Choosing the display range and connection

Select a display range so that the normal operating temperature falls in the middle of the scale. The data sheet gives a narrower measuring range inside each display range, for example 0 to +120 °C displayed with a measuring range of +20 to +100 °C, and the stated tolerance applies within that measuring range.

The process connection code covers fixed and displaceable fittings. TA 01 is a protection tube with collar, TA 02 and TA 03 use a union nut, TA 04 has a fixed hexagon, TA 06 has a displaceable threaded fitting rated to a maximum of 20 bar, and TA 08 uses a displaceable mounting plate. The SH series screw-in or weld-in tubes suit pipes and vessels. Details on tube diameters and special points are described in data sheet 608730.

Extra codes add a drag indicator (430), a drag indicator adjustable with a screwdriver and protected by a cover (434), IP65 (404) and a customized scale (522). The drag indicator needs a display range of at least 100 K, and IP65 cannot be combined with code 430.

Stock versions listed in the data sheet include 608002/0180-818-847-6-104-26-26-200/000 for 0 to +120 °C and 608002/0180-834-847-6-104-26-26-200/000 for 0 to +250 °C, both with a 6 mm by 200 mm stem and a G 1/2 displaceable fitting, with delivery stated within 3 working days after receipt of order. Ask us to confirm current availability for the code you need.

Typical applications

Bimetal thermometers of this type are used on pipework, tanks, heat exchangers, boilers, machine cooling circuits and compressed-air or process systems where an operator needs a quick local reading. The mechanical design needs no wiring, which also makes it useful as an independent check next to an electronic sensor.

The stainless steel case suits workshops, plant rooms and sheltered outdoor locations. For washdown or dusty places choose the IP65 version with extra code 404. Where a maximum value must be remembered between inspections, the drag indicator records the highest pointer position.

The ambient temperature has no influence on the displayed value, and the housing may be used between -30 and +80 °C. Mount the dial so the stem is immersed over its full insertion length, since a short immersion makes the pointer read low when the pipe wall is cooler than the medium.

Documents and quotation

This page carries the manufacturer PDF (JUMO 608002 data sheet (EN, 4 pages)) for checking dimensions and order codes. Use the quotation form to name the exact variant, options and delivery address, and we will answer with supply information. See also Temperature Instrumentation for similar instruments.
