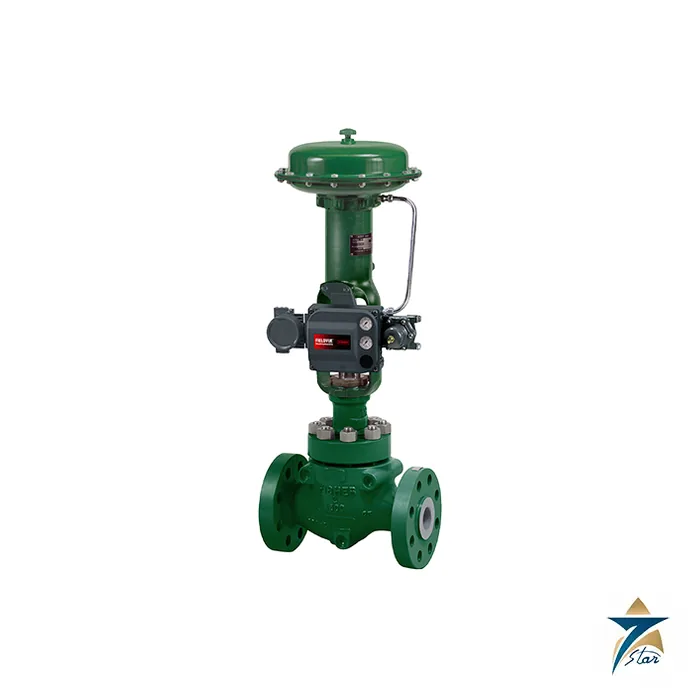

Fisher HPT Control Valve

Overview

The Fisher HPT control valve is a single-port, high-pressure globe or angle-body control valve engineered for the most demanding severe-service applications in power generation, hydrocarbon production, chemical processing, and refining. Built on Fisher’s HP series platform with metal seats, cage guides, and push-down-to-close plug action, the HPT is purpose-built for full pressure-drop capability where standard-class control valves cannot reliably hold up under sustained high-pressure throttling.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Fisher HPT control valve to power plants, gas processing facilities, and refineries across Oman and the wider GCC, backed by genuine Emerson-manufactured parts, factory-trained application engineering, and regional warehouse stock that shortens delivery on critical high-pressure severe-service valves.

Operating Principle

The Fisher HPT uses a cage-guided plug with push-down-to-close action, meaning the valve plug travels downward against the flow of process fluid to restrict or stop flow, an arrangement well suited to holding tight shutoff under full differential pressure. The rigid cage structure maintains plug alignment throughout the stroke, reducing the vibration and mechanical noise that high-pressure-drop service would otherwise induce, while metal seat construction is engineered to withstand full pressure-drop conditions without the wear that a soft-seated design would suffer at these energy levels.

Where flow-induced noise or cavitation is a concern at high pressure drops, the HPT accepts interchangeable Cavitrol III, Whisper Trim III, or WhisperFlo trim technologies that break the pressure drop into stages across multiple flow paths, attenuating noise and controlling cavitation damage that a single-stage trim could not manage safely. Optional balanced trim reduces the actuator thrust needed to stroke the valve smoothly even at the highest pressure drops the HP series is rated for.

Engineering Design of the Fisher HPT

Mechanically, the Fisher HPT is available in NPS 2 through 14 in globe or angle body configurations, with standard Class 900 and Class 1500 pressure ratings and an intermediate ANSI Class 3200 rating available on globe bodies from NPS 8 through 12 with weld-end fittings for the most extreme service. End connections include ISA 75.08.05 and ISA 75.08.06 long-pattern dimensions for NPS 4 and 6 sizes, giving engineers flexibility to match existing piping standards on retrofit and new-build projects alike.

Sealing at flanged joints relies on premium spiral-wound gaskets in alloy 600/graphite or alloy X750/graphite combinations, selected for reliability across the temperature and pressure extremes the HP series is rated for. Quick-change trim construction, using only standard tools, lets maintenance crews service the hardened cage, plug, and seat components without specialized equipment, while Micro-Flute and Micro-Form plug options extend the valve’s usable rangeability down to low-flow, high-turndown conditions with tight shutoff.

Key Features

The Fisher HPT control valve is engineered specifically for full pressure-drop capability in the most demanding high-pressure services.

• Cage-guided, push-down-to-close plug design provides stable, low-noise operation under sustained high differential pressure.
• Metal seat construction is rated for full pressure-drop conditions without the wear risk of soft-seated trim designs.
• Interchangeable Cavitrol III, Whisper Trim III, and WhisperFlo trims control noise and cavitation at severe pressure drops.
• Standard Class 900 and Class 1500 pressure ratings, with intermediate Class 3200 available on select globe sizes.
• Premium spiral-wound gaskets in alloy 600/graphite or alloy X750/graphite maintain reliable sealing at temperature and pressure extremes.
• Quick-change trim components require only standard tools, reducing maintenance downtime during scheduled outages.
• Micro-Flute and Micro-Form plug options extend usable rangeability for low-flow, high-turndown applications.
• Optional balanced trim reduces actuator thrust requirements even at the highest rated pressure drops.

Industrial Applications

The Fisher HPT is specified on the highest-pressure services in power generation plants, including boiler feedwater, steam bypass, and turbine bypass systems, as well as high-pressure gas production, gas lift, and wellhead choke applications in upstream oil and gas facilities. Refineries and chemical plants also rely on the HPT for high-pressure letdown stations where standard-class control valves cannot sustain the required pressure drop without excessive wear or noise.

With fast quotation turnaround and technical support, Seven Star LLC distributes the HPT control valve throughout Oman and the broader GCC, supporting power generation and gas processing projects in the Sohar and Salalah economic zones as well as upstream and downstream oil and gas facilities around Muscat, where local warehouse stock and factory-backed technical support reduce the downtime risk on critical high-pressure isolation and throttling valves. GCC-wide power and process operators specify the HPT on new-build high-pressure systems and on retrofit programs replacing valves that have reached the end of their service life under severe pressure-drop duty.

Technical Specifications

The table below summarizes the principal Fisher HPT specifications and control valve design data as published by the manufacturer.

Request a Quote for Fisher HPT Control Valve

Power plant and process engineers across Oman and the GCC can request a formal quotation for the Fisher HPT control valve directly from Seven Star LLC, including current lead times from regional warehouse stock, full technical datasheets, and trim selection guidance for noise and cavitation control at severe pressure drops. With regional stock and engineering support in Muscat, Seven Star LLC’s instrumentation and valve automation division is available to support valve sizing, high-pressure trim selection, and FIELDVUE digital valve controller integration, so contact our team today to specify a control valve engineered for your most demanding high-pressure service.
