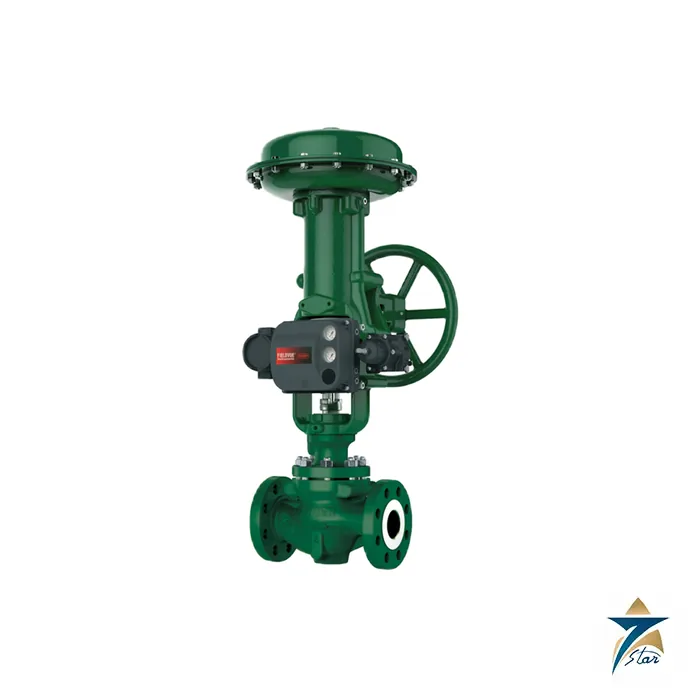

Fisher easy-e ES Control Valve
Overview
The Fisher easy-e ES control valve is a globe-style, sliding-stem control valve purpose-built for sour, corrosive, and high-integrity shutoff service across upstream and downstream oil and gas production. Offered in both globe and angle body configurations, the easy-e ES delivers Class V or Class VI shutoff and is fully qualified to NACE MR0175-2002, with optional trim materials extending compliance to NACE MR0103 and NACE MR0175/ISO 15156, making it a standard specification on sulfide- and chloride-stress-cracking duty found throughout wellhead, gathering, and gas processing systems.
With fast quotation turnaround and technical support, Seven Star LLC supplies the Fisher easy-e ES control valve to process plants, refineries, and gas facilities across Oman and the wider GCC, with application support and lead time confirmed at quotation for critical shutdown-service valves.
Operating Principle
The Fisher easy-e ES uses a cage-guided, sliding-stem globe mechanism in which the valve plug travels linearly inside a rigid cage bored to the required flow characteristic. As the actuator strokes the stem, the plug is guided precisely along the cage bore rather than by the stem alone, which keeps the plug centered in the seat ring under high differential pressure and turbulent, sand-laden, or multiphase well fluids. This rugged cage guiding is what allows the easy-e ES to hold tight Class V or Class VI shutoff even after repeated cycling in erosive service.
Sealing at the stem is handled by Fisher’s ENVIRO-SEAL packing system, available in PTFE or Graphite ULF configurations with live-loading, which maintains constant packing box compression as the packing wears and thermally cycles. The practical result is a valve with no moving parts exposed to atmosphere beyond the stem itself, virtually eliminates fugitive emissions at the packing, and provides a hardened stainless steel trim that resists the wire-drawing and erosion typical of H2S-bearing and chloride-laden process streams.
Engineering Design of the Fisher easy-e ES
Mechanically, the Fisher easy-e ES is built on Fisher’s easy-e globe body platform, available in straight globe or space-saving angle body arrangements to suit constrained skid and pipe-rack layouts common on Middle East gathering stations. Streamlined internal flow passages are engineered for high capacity relative to body size, reducing the footprint and weight of the valve versus older-generation globe designs while still meeting the flow coefficient required by the process. Optional construction routes the PTFE seal disk through controlled compression between metal components, protecting the soft-seat element from extrusion during high pressure-drop excursions and preserving Class VI bubble-tight shutoff over the service life of the trim.
The valve is topped with a pneumatic or electro-pneumatic actuator matched by Fisher sizing software to the specific Cv and shutoff class required, interfaced through a Fisher FIELDVUE digital valve controller for precise positioning feedback, diagnostics, and integration with plant control and asset-management systems. EN/DIN dimensional variants are available where European flange standards are specified, and the quick-change trim design lets maintenance crews swap cage, plug, and seat ring assemblies with standard tools, minimizing turnaround time during scheduled shutdowns.
Key Features
As a leading Fisher easy-e ES industrial control valve, it combines several engineering advantages that make it a preferred choice for sour and corrosive gas and oil service.
- Cage-guided trim provides rugged plug stability that reduces vibration and mechanical noise across the full stroke range.
- ENVIRO-SEAL packing systems with PTFE or Graphite ULF options and live-loading deliver an improved stem seal that helps prevent fugitive loss of process fluid.
- Hardened stainless steel trim components provide increased resistance to erosion and wear in sand-laden or multiphase streams.
- Class V and Class VI shutoff options give operators bubble-tight isolation for emergency and block-valve duty.
- Full NACE MR0175-2002 compliance, with optional materials for NACE MR0103 and NACE MR0175/ISO 15156, qualifies the valve for the harshest sulfide and chloride stress-cracking environments.
- Streamlined flow passages in both globe and angle body styles deliver strong flow capacity for a compact overall footprint.
- Quick-change trim construction with standard tooling shortens maintenance downtime during turnarounds.
- Compatibility with Fisher FIELDVUE digital valve controllers enables precise positioning, diagnostics, and integration with plant automation systems.
Industrial Applications
The Fisher easy-e ES is specified wherever oil and gas producers face sour service risk: wellhead choke and production manifolds, gas gathering and compression stations, amine and glycol treating units, and produced-water handling systems where H2S and chlorides threaten conventional valve trims. Refineries and gas processing plants across the Sultanate of Oman use the easy-e ES on critical shutdown and pressure-letdown duty, while GCC-wide upstream operators rely on its NACE-qualified trim for wellhead and flowline isolation in fields with elevated sulfide content.
With engineering support in Muscat, Seven Star LLC supplies the easy-e ES control valve throughout Oman and the broader GCC, supporting projects in the Sohar and Salalah economic zones as well as inland production fields in the interior, where technical support with selection helps reduce the risk of unplanned downtime on sour-service isolation valves. Muscat-based EPC contractors and operating companies specify the easy-e ES on new-build gas processing trains as well as retrofit packages replacing aging carbon-steel trim valves nearing the end of service life.
Technical Specifications
The table below summarizes the principal Fisher easy-e ES specifications and Fisher easy-e ES control valve dimensional data as published by the manufacturer.
| Parameter | Specification |
|---|---|
| Model | Fisher easy-e ES |
| Body Style | Globe or angle body |
| Trim Guiding | Cage-guided, sliding-stem plug |
| Shutoff Class | Class V or Class VI |
| Packing | ENVIRO-SEAL PTFE or Graphite ULF, live-loaded |
| Trim Material | Hardened stainless steel |
| Sour Service Compliance | NACE MR0175-2002; optional MR0103, MR0175/ISO 15156 |
| Dimensional Standards | ASME and optional EN/DIN |
| Actuation | Fisher pneumatic or electro-pneumatic actuators with FIELDVUE compatibility |
| Typical Service | Sour oil and gas, wellhead, gathering, and gas processing |
Request a Quote for Fisher easy-e ES Control Valve
Facility engineers and procurement teams across Oman and the GCC can request a formal Fisher easy-e ES quotation directly from Seven Star LLC, including current lead times, full technical datasheets, and NACE material certification packages. Backed by genuine manufacturer documentation, Seven Star LLC’s instrumentation and valve automation division is available to support valve sizing, trim material selection for sour service, and FIELDVUE digital valve controller integration, so contact our team today to move your sour-service valve package from specification to delivery with confidence.
Browse the full Fisher range or see more Control Valves products supplied by Seven Star LLC in Oman and the GCC.
- Datasheet Fisher ES Valve Product Bulletin Download
Fisher control valve and actuator families

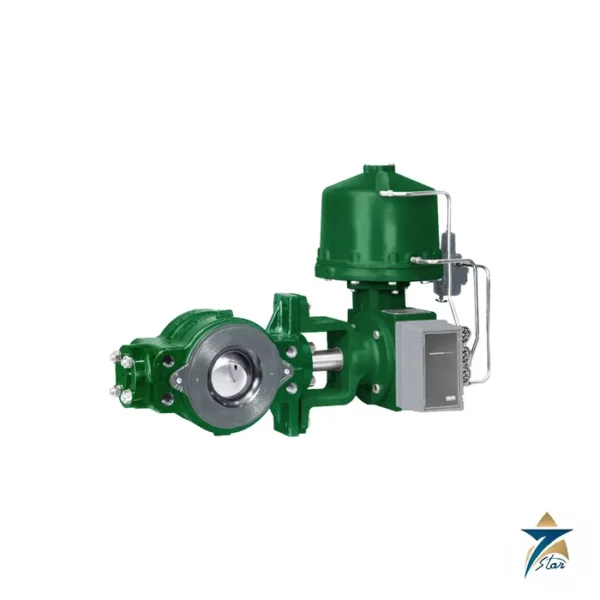

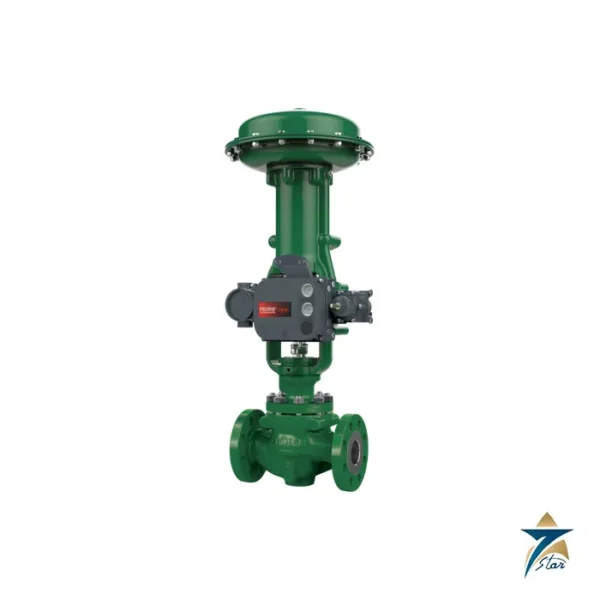

Fisher groups its valves by body style. On this page you will find sliding-stem globe valves such as the easy-e ET, the high-pressure HPT and HPAT, and the GX valve and actuator system. Rotary designs include the Vee-Ball V150, V200 and V300 segmented ball valves, the V250 Hi-Ball and the CV500 eccentric plug valve. Actuators include the 1052 spring-and-diaphragm rotary actuator and the easy-Drive electric actuator. Instruments complete the loop: FIELDVUE digital valve controllers, pneumatic positioners, the 2500 pneumatic level controller with displacer sensor and the DLC3100 digital level controller. Fisher regulators such as the 627 reduce pressure on fuel gas and instrument supply lines.Where Fisher valves are used
Fisher control valves handle throttling duty on separators, compressors, steam systems, gas dehydration, refining units and power plant feedwater across the GCC. Vee-Ball valves suit fibrous or erosive fluids and high capacity, easy-e globe valves are the general-purpose choice, and HP series bodies cover high pressure classes.Ordering Fisher valves and parts: what we need
Every Fisher assembly carries a serial number on the actuator and body nameplates, and the manufacturer's records link that number to the original build: body size and rating, trim, materials, actuator size and bench set. For spare parts, send the serial number or a nameplate photo and the part needed, such as trim set, packing kit, diaphragm or positioner. For a new valve, send the process data sheet with fluid, flow, inlet and outlet pressure, temperature, line size, rating, end connections, fail action and material or sour service requirements.Browse Fisher products by category: Control Valves, Valve Positioner, Valve Actuator, Regulators.
