Brand: TopWorx

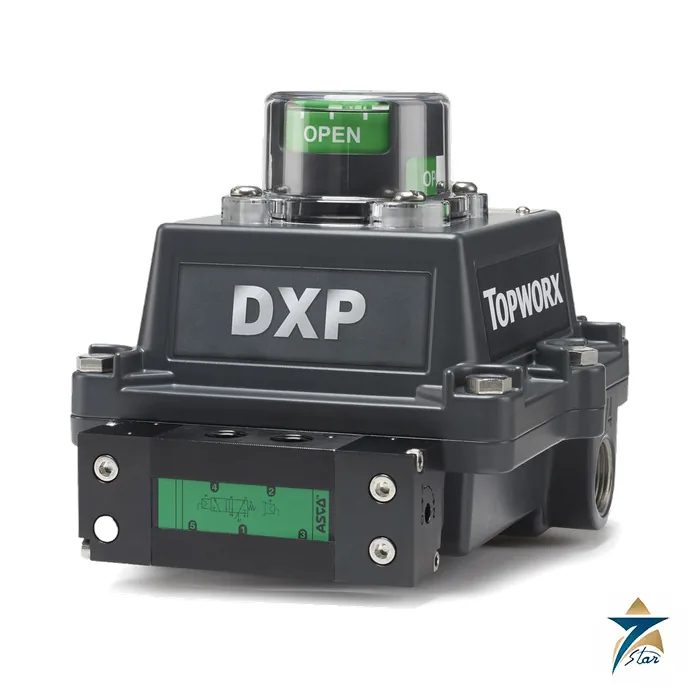

TopWorx D-Series DXP DXR DXS Discrete Valve Controllers
Description
Discrete valve controllers in three housing materials
The TopWorx D-Series valve controllers DXP, DXR and DXS monitor and control on/off valves and actuators. The DXP has a cast aluminium enclosure, the DXS a cast 316 stainless steel enclosure and the DXR a Valox 364 enclosure with a polycarbonate dome. The Master Installation, Operation and Maintenance Manual covers the whole range in one document: GO Switch sensors, mechanical switches, inductive sensors, 4-20 mA transmitters, HART devices, FOUNDATION Fieldbus (D2-FF), AS-i, other bus options, and integrated spool valves and pilots with proof-testing guidance for emergency shutdown duty.
Technical specifications
| Parameter | Specification |
|---|---|
| Models | DXP (flameproof Ex d IIC variant also documented), DXR, DXS |
| DXP enclosure | Cast A360 aluminium, dichromate conversion coating, epoxy exterior rated 250 hours salt spray per ASTM B117; bronze bushing |
| DXS enclosure | Cast 316 stainless steel |
| DXR enclosure | Valox 364; Delrin 500P bushing; polycarbonate UV F1 dome |
| Fasteners / shaft | 304 stainless steel standard; 316 optional |
| GO Switch L2/L4 | SPDT Form C; 4 A at 120 VAC, 2 A at 240 VAC, 3 A at 24 VDC; response 8 ms; repeatability 0.002 in (0.05 mm) |
| GO Switch Z2/Z4 | DPDT Form CC; 4 A at 120 VAC, 2 A at 240 VAC, 3 A at 24 VDC, 0.5 A at 125 VDC |
| Mechanical switches | Options M2/M4/M6/K2/K4/K6/T2 |
| Inductive sensors | Options E2/E4/E6/V2/V4; NAMUR sensors rated IP67 |
| 4-20 mA transmitter | Options LX, MX, KX, EX, TX, ZX, 0X; HART variants LH, MH, KH, EH, TH, ZH, 0H |
| HART terminal voltage | 10 to 39 VDC, 24 VDC typical; operating temperature -40 to 80 C |
| FOUNDATION Fieldbus (D2-FF) | Operating voltage 9 to 32 VDC; bus length up to 1,900 m |
| DeviceNet | Device power 11 to 25 VDC per specification |
| Storage | -40 to 160 F (-40 to 71 C), 10% to 95% relative humidity |
| Certification | ATEX, IECEx and other schemes listed in the manual certification pages; match the nameplate |
Choosing the model and option
Select the housing from the environment: aluminium DXP for general industrial use, 316 stainless DXS for corrosive atmospheres, and DXR where a non-metallic enclosure is preferred. Then choose the sensing option (GO Switch, mechanical, inductive, transmitter or bus) and whether a spool valve or pilot is integrated. The manual states that the unit does not support its IP/NEMA rating until conduit, conduit covers and spool valve port connections are properly installed, since it ships with temporary covers. Proof testing for safety functions is described in a dedicated section, which should be read for emergency shutdown applications.
Documents and quotation
The TopWorx D-Series master IOM is hosted on this page, and other valve controllers are listed under Valve Positioners. Send the full model code from the nameplate or the required options, certification, voltage and communication protocol for a quotation.
Datasheets & Documents
- Manual TopWorx D-Series Master IOM (2022 PDF) Download
Reviews (0)
About brand
TopWorx is the valve controls and limit switch brand of Emerson, based in Louisville, Kentucky, USA. Its products mount on valve actuators to show whether a valve is open or closed, send switch or analog signals back to the control system and, in some models, operate the actuator pilot valve. Seven Star LLC, an independent supplier in Muscat, lists products from the manufacturer's manuals and datasheets and quotes against the exact model code.
TopWorx product groups
The documents on this site cover GO Switch leverless limit switches, the D-Series, TX-Series, TV-Series and K-Series discrete valve controllers, the DVR valve position monitor and the PD Series smart valve positioner. Options in these documents include GO Switch, mechanical and inductive sensors, 4-20 mA and HART transmitters, FOUNDATION Fieldbus, AS-i, DeviceNet and PROFIBUS communication, integrated pilots and explosion-protected enclosures.
Ordering TopWorx products: what we need
Send the full model code from the nameplate or the datasheet nomenclature, the actuator make, mounting pattern and size, the supply voltage and signal type, the hazardous-area certification and the quantity. Many options cannot be combined, so we confirm the code against the manufacturer's documentation before quoting.
Related products
Frequently Asked Questions
Which models make up the D-Series?
DXP with a cast aluminium housing, DXS with a cast 316 stainless steel housing and DXR with a Valox 364 housing.
Which sensing options does the manual cover?
GO Switch, mechanical switches, inductive sensors, 4-20 mA transmitters, HART devices, FOUNDATION Fieldbus, AS-i and other bus options.
How is the DXP enclosure protected?
Cast A360 aluminium with dichromate conversion coating and epoxy exterior rated for 250 hours of salt spray per ASTM B117.
Can it control a valve as well as monitor it?
Yes, the manual describes integrated spool valves and pilots with proof testing for safety functions.
Where can I find the hazardous area certification?
In the certification pages of the manual and on the nameplate of the unit supplied.
