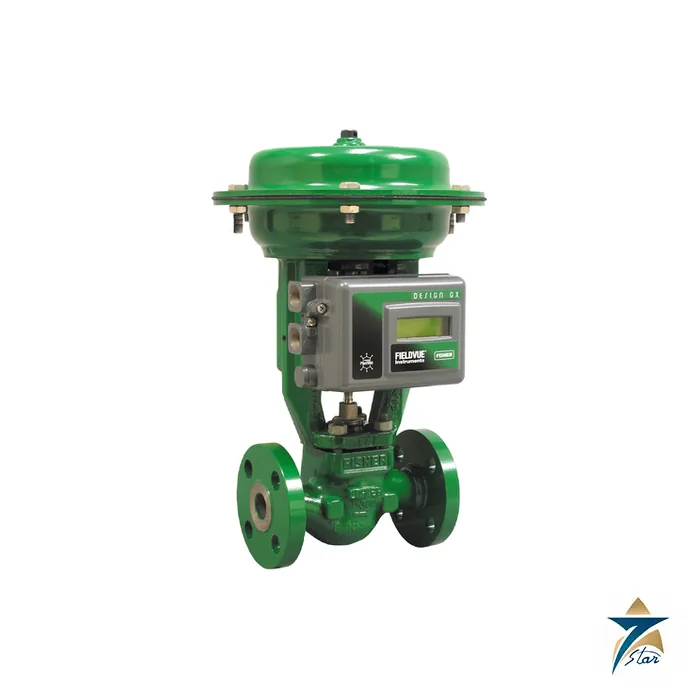

Fisher GX Control Valve and Actuator System

Overview

The Fisher GX control valve and actuator system is an integrated globe control valve and pneumatic actuator package engineered to simplify sizing, selection, and ordering for general process throttling and pipeline flow control. Unlike valves specified with separately sourced actuators and accessories, the GX arrives as a factory-matched valve-and-actuator assembly with automatic actuator selection logic, reducing engineering time and eliminating compatibility guesswork for a wide range of flow and pressure conditions, including an optional three-way body configuration for precise temperature-blending duty.

As the official authorized partner and exclusive regional representative for Fisher, Seven Star LLC proudly supplies the Fisher GX control valve and actuator system to process plants, utilities, and industrial facilities across Oman and the wider GCC, backed by genuine Emerson-manufactured parts, factory-trained application engineering, and regional warehouse stock that shortens delivery on standardized, easy-to-specify control valve packages.

Operating Principle

The Fisher GX operates as a conventional globe-style, sliding-stem control valve in which engineered internal flow passages within the valve body create a stable flow pattern and deliver reliable capacity for smooth throttling across the operating range. What distinguishes the GX is the pre-engineered pairing of valve and actuator: Fisher’s sizing and selection software automatically matches the correct actuator size, spring rate, and air supply configuration to the specified valve body and process conditions, removing the manual actuator sizing calculations that traditionally added time and risk of error to a control valve specification.

The optimized actuator design accommodates a wide range of air supply pressures, giving the GX flexibility across many plant air systems without custom actuator engineering. In three-way configurations, the valve blends or diverts two flow streams through a single body, giving temperature-control and stream-splitting applications a compact, factory-matched solution rather than requiring two separate two-way valves piped together.

Engineering Design of the Fisher GX

Mechanically, the Fisher GX uses a robust, low-profile actuator design that reduces the overall installed footprint compared to conventional spring-and-diaphragm actuators of similar thrust output, an advantage in congested pipe racks and skid-mounted packages common on Middle East process facilities. The replaceable trim component allows maintenance teams to service or upgrade the valve’s flow characteristic without replacing the entire valve body, extending the useful service life of the installed base.

A key engineering objective behind the GX platform is reduced parts count and increased part commonality across the valve and actuator range, which simplifies spare parts inventory and technician training for plants standardizing on the platform across multiple process units. The valve integrates with Fisher FIELDVUE digital valve controllers for positioning feedback and diagnostics, and its simplified maintenance design, low parts count, and shared component architecture combine to lower total cost of ownership relative to control valve packages assembled from mismatched components.

Key Features

The Fisher GX control valve and actuator system is engineered to remove complexity from control valve specification, ordering, and maintenance.

• Factory-matched valve and actuator pairing with automatic actuator selection eliminates manual sizing calculations and specification errors.
• Engineered internal flow passages provide capacity and a stable flow pattern across a wide range of pipeline sizing requirements.
• Optimized actuator design accommodates a wide range of air supply pressures without custom actuator engineering.
• Optional three-way body configuration enables precise temperature blending or stream diversion in a single compact valve.
• Robust, low-profile actuator design reduces installed footprint in congested pipe racks and skid packages.
• Replaceable trim components allow flow characteristic changes and maintenance without replacing the entire valve body.
• Low parts count and high part commonality simplify spare parts inventory and technician training across plant fleets.
• Compatibility with Fisher FIELDVUE digital valve controllers provides precise positioning feedback and diagnostic capability.

Industrial Applications

The Fisher GX is well suited to general process plants, utilities, and pipeline facilities that need dependable, easy-to-specify control valves across a broad range of standard flow and pressure duties, including cooling water systems, general process throttling, and temperature-blending loops using the three-way configuration. Its simplified specification process makes it a common choice on multi-unit projects where engineering time and parts standardization matter as much as individual valve performance.

As the officially authorized partner for Fisher, Seven Star LLC distributes the GX control valve and actuator system throughout Oman and the broader GCC, supporting industrial and utility projects in the Sohar and Salalah economic zones as well as general process facilities around Muscat, where local warehouse stock and factory-backed technical support help plant engineers standardize on a single, well-supported control valve platform. Sultanate of Oman utilities and GCC industrial operators specify the GX where a straightforward, factory-matched valve and actuator package reduces engineering effort across new-build and expansion projects.

Technical Specifications

The table below summarizes the principal Fisher GX specifications and control valve and actuator system design data as published by the manufacturer.

Request a Quote for Fisher GX Control Valve and Actuator System

Process and utility engineers across Oman and the GCC can request a formal quotation for the Fisher GX control valve and actuator system directly from Seven Star LLC, including current regional stock availability, full technical datasheets, and guidance on two-way versus three-way body selection. As the authorized partner for Fisher in Oman and the GCC, Seven Star LLC’s instrumentation and valve automation division is ready to assist with GX sizing, actuator selection, and FIELDVUE digital valve controller integration, so contact our team today to specify a simplified, factory-matched control valve package for your project.
