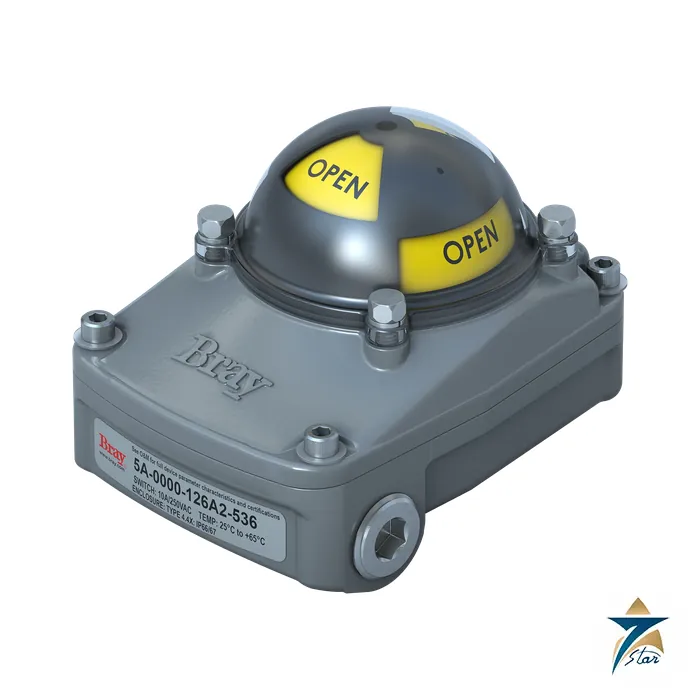

Bray Series 5A Valve Status Monitor Switch Box, IP66/67

Name: Bray Series 5A Valve Status Monitor Switch Box – Datasheet
Brand: Bray International
SKU: Series 5A

Description

Compact limit switch box for any VDI/VDE 3845 quarter-turn actuator

The Bray Series 5A is the compact member of Bray’s valve status monitor (VSM) range. It gives visual and electrical open and closed indication on any VDI/VDE 3845-compliant quarter-turn device, and Bray designs it as the lightweight housing for the tightest installation spots. The enclosure is weatherproof to IP66/67 and NEMA Type 4 and 4X, offered either in die-cast aluminum coated with two layers of polyester or in a fiberglass-reinforced PBT resin body.

A switch box is the small part that tells the control room whether a pneumatic or electric quarter-turn valve is really open or closed, so reliability and simple wiring matter more than features. The 5A holds up to two switches and a four or eight pole terminal strip with angled, clearly marked terminals, a captive-bolt cover with an O-ring seal outside the wet area, and a tool-free cam system for setting switch points.

Technical specifications

Parameter	Specification
Housing sizes in family	5A compact; 5B larger (up to 6 switches); 5C explosion-proof
Body material	Die-cast aluminum, grey polyester coated (536); or fiberglass-reinforced PBT resin (517)
Indicator dome	Polycarbonate; standard red closed / yellow open, three other colour schemes
Enclosure rating	IP66/67; NEMA Type 4 and 4X
Conduit entries	Two; 1/2 inch NPT or M20
Terminals	4 or 8 pole
Mounting pattern	VDI/VDE 3845 (NAMUR); F05 pattern
Ambient temperature	-25 to 65 deg C (-13 to 149 deg F)
Weight (aluminum, 2 SPDT)	About 0.5 kg (1.2 lb)
O-rings	EPDM
Maximum switches	2
Mechanical SPDT	10 A 250 V AC; 0.5 A 125 V DC; cULus and SIL 3 capable
Mechanical SPDT low power (gold plated)	0.1 A 125 V AC or 30 V DC; 1 mA 4 V minimum
3-wire DC proximity	PNP/NPN, NO or NC; 10-30 V DC; load 100 mA maximum
2-wire proximity	140 V (20-140 V AC / 10-140 V DC) or 250 V (20-250 V AC / 10-300 V DC)
NAMUR intrinsically safe	Switch type P+F NJ2-V3-N; 16 V, 25 mA, 64 mW maximum
Reed switch	SPDT 180 mA 110 V AC; 830 mA 24 V DC; 20 W maximum
Certification	cULus on most models; CE; ATEX, IECEx and cULus for intrinsic safety (optional)

Source: Bray brochure B-1068 and technical data sheet TM-1090 (Rev. 10, 2022) for the aluminum 5A. Resin and hazardous-area versions have their own sheets.

Hazardous areas, mounting and ordering code

For intrinsic safety Bray offers the 5A with NAMUR switches, certified NEC 500 Class I Division 1 Groups A to D T6 and Class II Division 1 Groups E, F and G T85 deg C, NEC 505 Class I Zone 0 and Zone 1 AEx ia IIC T6, ATEX II 1G Ex ia IIC Ga T6, II 2G Ex ia IIC Gb T6 and IECEx. Ambient limits for the NAMUR switch are -25 to +49 deg C in Zone 0 and -25 to +65 deg C in Zone 1 or 2.

A universal NAMUR bracket in stainless steel or resin mounts the box on rack-and-pinion, scotch yoke and other quarter-turn actuators with NAMUR 30 x 80 and 30 x 130 pads, including all Bray Series 92, 93 and 98 actuators. The monitor can sit perpendicular or parallel to the conduit run without changing brackets, and the dome can be rotated 90 degrees to invert the indication. The part code follows the pattern 5A000X-126X X XXX / E X: thread type (0 imperial or 5 metric), switch option letter (for example A for SPDT mechanical, C for PNP NO), switch configuration, language and indicator colour.

Switch option (brochure table)	Maximum quantity 5A / 5B / 5C
Mechanical SPDT or gold-plated SPDT	2 / 6 / 6
PNP or NPN 3-wire proximity	2 / 6 / 6
140 V 2-wire proximity	2 / 6 / 6
250 V 2-wire, reed SPDT, NAMUR IS	2 / 6 / not offered
DPDT-DB mechanical, CommPro network modules	not offered / 2 / 2 (network modules 4)

Choosing 5A, 5B or 5C

Take the 5A when two switches are enough and weight and space count. Choose the 5B when up to six switches, 20 terminal points or a network module are needed, and the 5C when the area is hazardous and a flameproof enclosure is required.

Model	Switches and terminals	Protection
Series 5A (this page)	Up to 2 switches, 4 or 8 poles	IP66/67, NEMA 4/4X, Ex ia option
Series 5B	Up to 6 switches, up to 20 terminals	IP66/67, Ex ia option, AS-i, DeviceNet, PROFIBUS DP
Series 5C	Up to 6 switches, 12 or 20 poles	Ex db IIB+H2, Ex tb IIIC, IP66/67/68

Documents and quotation

The Bray brochure B-1068 covering the 5A, 5B and 5C is attached as the datasheet; the page also lists a technical manual, installation manual, safety manual and hazardous-location selection guides. Please confirm the actuator mounting pattern, number and type of switches, supply voltage, area classification and conduit thread before ordering.

See the wider range of valve positioners and accessories on our catalogue, or send the model name and order number for a quotation.
