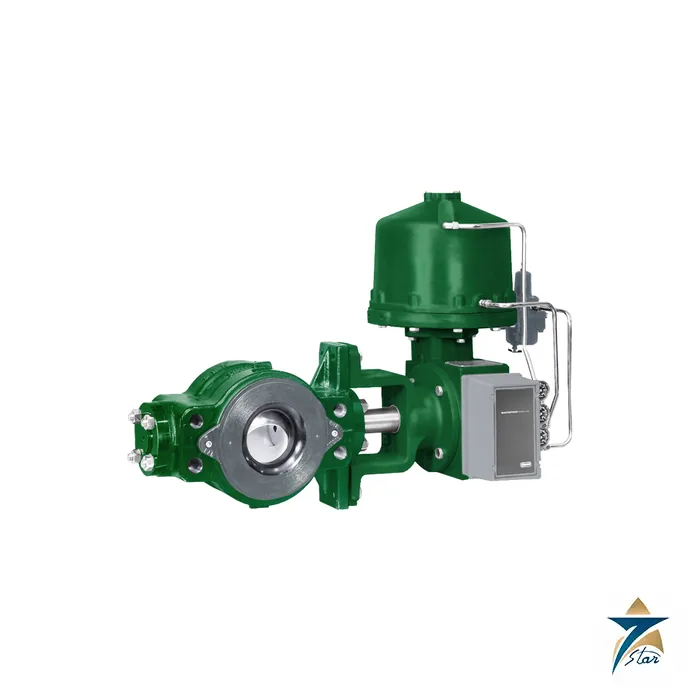

Fisher V250 Hi-Ball Rotary Control Valve
Overview
The Fisher V250 Hi-Ball is a rotary control valve designed for heavy-duty throttling and on-off service. It is a flangeless ball valve that installs between two CL600 or CL900 pipeline flanges, depending on size, and is typically used for throttling and controlled flow applications on gas transmission lines, downstream gas supply networks and liquid pipelines. The valve is available with a single ball seal, a flow ring, or a dual-seal construction, giving users a choice between tight unidirectional shutoff, higher temperature capability and bidirectional shutoff.
Seven Star LLC supplies the Fisher V250 to pipeline operators, gas utilities and EPC contractors in Oman and across the GCC. Large-diameter gas transmission and city gate stations in the region need valves that combine high capacity with stable throttling, and our engineers in Muscat help customers specify the Fisher V250 size, seal construction, trim and actuator package using the official Fisher V250 datasheet.
Operating Principle
The valve uses a reduced-port ball that rotates up to 90 degrees to vary the flow area. The reduced ball port gives a modified equal percentage flow characteristic and an excellent response characteristic, while the ball construction delivers greater capacity than conventional globe valves for both compressible and incompressible fluids. Controllable flow begins once the ball has rotated past a small dead angle, which ranges from 8 to 17 degrees depending on valve size, and the rest of the rotation provides the throttling range.
In the closed position, POM (polyoxymethylene) ball seals bear against the ball to provide shutoff of 0.0001 percent of maximum valve capacity. The Fisher V250 drive train uses a tapered-polygon ball-to-shaft connection and a clamped splined actuator connection, which remove lost motion and dead band so the valve responds accurately to small changes in controller output. A pressure-balanced drive shaft with PTFE-lined bearings and a pressure-assisted shaft sealing arrangement supports long, reliable service.
Engineering Design of the Fisher V250
Sizes NPS 4 through 12 fit between CL600 or CL900 raised-face or ring-type joint flanges to ASME B16.5, and sizes NPS 16 through 24 fit between CL600 flanges. The valve body, body outlet and seal protector or flow ring are LCC carbon steel as standard, with WCC steel or CF8M stainless steel as options. Shafts are 17-4PH stainless steel with S20910 optional, the ball is chrome-plated WCC steel or chrome-plated 316 stainless steel, bearings are PTFE-lined 316 stainless steel, and the seal carrier is 316 stainless steel.
A two-piece ball and shaft assembly allows a complete trim overhaul with minimal parts replacement. An optional live-loaded PTFE packing system with Belleville springs and very smooth shaft surfaces gives excellent stem sealing. The Fisher V250 can be installed in any position, though the recommended orientation is in a horizontal pipeline with the shaft horizontal and the ball closing downward, and the actuator can be mounted right-hand or left-hand as viewed from the inlet. Approximate weights range from 73 kg for NPS 4 to 2404 kg for NPS 24.
Key Features
Emerson Bulletin 51.3:V250 lists these Fisher V250 design features.
- High pressure drop capability of up to 103 bar at 82 °C for CL600 and 155 bar at 38 °C for CL900 constructions.
- Tapered-polygon ball-to-shaft and clamped splined actuator connections remove lost motion for throttling control.
- A reduced ball port provides a modified equal percentage characteristic and excellent response.
- Single-seal and dual-seal constructions shut off to 0.0001 percent of maximum capacity.
- Ball valve construction offers greater capacity than conventional globe valves.
- Sour service materials are available to NACE MR0175-2002.
- A pressure-balanced drive shaft with PTFE-lined bearings gives a long service life.
- Options include line flange bolts, buried service actuator adaptation, dual seal and live-loaded PTFE packing.
Industrial Applications
The Fisher V250 is aimed at the high-capacity end of pipeline control. Typical duties include pressure and flow control at gas transmission compressor and metering stations, city gate and network pressure control, flow control on crude, condensate and refined product pipelines, and on-off or throttling service on large headers where a globe valve would be oversized and costly. The dual-seal construction with a double block and bleed test connection suits bidirectional pipeline sections, and the buried service adaptation supports underground installations. In Oman these applications are found along the national gas network, at processing plants feeding power and desalination stations, and at export and storage terminals near Muscat, Sohar and Duqm.
Seven Star LLC supports pipeline valve projects across Oman and the GCC with application review and regional delivery coordination. The Fisher V250 is commonly automated with the Fisher 1061 pneumatic piston rotary actuator and positioned by the Fisher FIELDVUE DVC6200 digital valve controller. For smaller lines and general process throttling, see the Fisher V150 Vee-Ball segmented ball control valve.
Technical Specifications
The following Fisher V250 data is taken from Emerson Product Bulletin 51.3:V250.
| Parameter | Specification |
|---|---|
| Model | Fisher V250 Hi-Ball rotary control valve |
| Configuration | Flangeless ball valve with single ball seal, flow ring or dual ball seal |
| Sizes | NPS 4, 6, 8, 10, 12, 16, 20, 24 |
| End connections | Between CL600 or CL900 (NPS 4 to 12) or CL600 (NPS 16 to 24) RF or RTJ flanges, ASME B16.5 |
| Maximum inlet pressure | Consistent with CL600 or CL900 per ASME B16.34 |
| Shutoff | 0.0001% of maximum capacity (seal constructions); 1% (flow ring) |
| Flow characteristic | Modified equal percentage |
| Maximum ball rotation | 90 degrees |
| Seal temperature (POM seals) | –46 to 82 °C |
| Flow ring temperature | –46 to 93 °C (nitrile); –46 to 204 °C (fluorocarbon) |
| Body material | LCC carbon steel standard; WCC steel or CF8M optional |
| Shaft material | S17400 (17-4PH SST) standard; S20910 optional |
| Ball material | Chrome-plated WCC steel or chrome-plated S31600 |
| Sour service | NACE MR0175-2002 trim available |
| Approximate weight | 73 kg (NPS 4) to 2404 kg (NPS 24) |
How to Order
For a formal RFQ on the Fisher V250, send Seven Star LLC the line size and flange class, flange facing, seal construction and flow direction, process fluid, pressures, temperatures and flow rates, sour service needs, and the required actuator, positioner and accessories. Our instrumentation division will confirm the selection against the Fisher V250 datasheet, check current availability and lead time, provide the product bulletin for download and offer engineering support from Muscat for pipeline control projects across Oman and the GCC.
- Datasheet Fisher V250 Rotary Control Valve Product Bulletin 51.3:V250 (D100053X012), December 2020 Download
