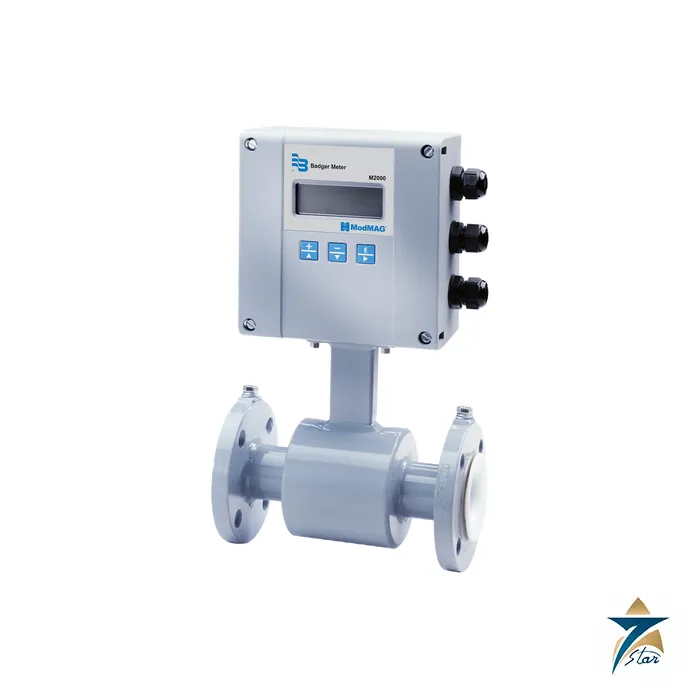

Badger Meter M2000 Electromagnetic Flow Meter

Overview

The Badger Meter M2000 is a full-bore electromagnetic flow meter that pairs a magnetic flow detector with a processor-based signal converter to deliver accurate, repeatable flow measurement on water, wastewater, and other conductive fluids. Combining the detector and amplifier into a single field-verifiable package, the M2000 was engineered for utilities and industrial plants that need dependable readings without the pressure drop, moving parts, or maintenance burden of mechanical meters. Its advanced signal processing and BTL-certified BACnet integration make it one of the most field-proven electromagnetic flow meters on the market today.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the M2000 electromagnetic flow meter to municipal utilities, contractors, and industrial facilities across the Sultanate of Oman and the wider GCC. Every unit supplied through Seven Star LLC comes with manufacturer calibration documentation and access to regional technical support, giving buyers in Muscat and beyond Badger Meter equipment with local technical assistance.

Operating Principle

The Badger Meter M2000 measures flow using Faraday’s law of electromagnetic induction. A pair of energized coils generates a magnetic field across the flow tube, and as conductive liquid passes through that field, it induces a voltage directly proportional to the fluid’s velocity. Electrodes mounted flush with the pipe wall pick up this induced voltage, and the meter’s onboard processor converts the signal into a precise volumetric flow rate, achieving accuracy of ±0.2% of rate with proper straight-run piping and ±1% even with zero straight run.

Because the M2000 has no impeller, turbine, or moving mechanical element in the wetted flow path, there is nothing inside the tube to wear, clog, or foul over time. This translates directly into practical operating advantages: zero obstruction-related pressure drop, no risk of mechanical jamming from suspended solids in wastewater, and a measurement accuracy that remains stable for years without the recalibration drift typical of mechanical meters. For plant operators, that means fewer shutdowns for maintenance and more confidence in billing and process-control data.

Engineering Design of the Badger Meter M2000

The Badger Meter M2000 is built around a rugged flanged flow tube available from 6 mm up to 1981 mm (1/4 in. to 78 in.), with a wide selection of liner and electrode materials so the wetted parts can be matched to the chemistry of the process fluid, whether that is potable water, raw wastewater, or an aggressive industrial effluent. The compact converter housing mounts directly on the flow tube or remotely on a wall bracket, keeping the local display and keypad accessible for field technicians while protecting the electronics in a general-purpose enclosure rated for outdoor and indoor installation.

Wiring and commissioning are handled through cable-gland entries on the converter housing, with terminals for power, output signal, and communication wiring kept physically separated to reduce electrical noise on the low-level flow signal. The local keypad and digital display allow flow rate, totalized volume, and diagnostic parameters to be configured and verified directly at the meter, and the converter’s field-verification test mode lets technicians confirm calibration integrity with a handheld device without removing the meter from the line, dramatically reducing recommissioning downtime.

Key Features

The Badger Meter M2000 combines measurement accuracy with practical installation and communication flexibility. The Badger Meter M2000 key features include:

• Delivers accuracy of ±0.2% of rate ±1 mm/s under standard straight-run conditions, with ±1% accuracy maintained even under zero straight-run installation.
• Uses a fully processor-based signal conversion architecture for sophisticated, stable flow signal processing across varying process conditions.
• Offers a wide range of liner and electrode material combinations to match abrasive, corrosive, or chemically aggressive fluid compatibility requirements.
• Communicates natively via RS232 Modbus RTU as standard, with HART, Profibus DP, BACnet/IP, BACnet MS/TP, Modbus TCP/IP, and EtherNet/IP available through daughterboard modules.
• Was the first full-bore inline electromagnetic flow meter to complete the BACnet Testing Laboratories (BTL) Certification Program, confirming verified protocol interoperability.
• The Badger Meter M2000 supports flow velocities from 0.03 to 12 m/s (0.10 to 39.4 ft/s), covering both low-flow monitoring and high-velocity distribution main applications typical of a Badger Meter M2000 installation.
• Operates reliably across a temperature range up to 150°C (302°F), suitable for both ambient water lines and warmer process fluids.
• Accepts flexible power input of 10–36V DC or 85–265V AC, simplifying integration into existing panel and utility power infrastructure.

Industrial Applications

The Badger Meter M2000 is widely deployed across municipal water distribution networks, wastewater treatment plants, and industrial process lines where dependable, non-intrusive flow measurement is essential to both billing accuracy and process control. In the Sultanate of Oman and across the GCC, utilities managing potable water networks and desalination-fed distribution systems rely on electromagnetic meters like the M2000 to minimize non-revenue water losses, while wastewater treatment operators value the meter’s ability to handle solids-laden effluent without mechanical fouling or blockage.

With engineering support in Muscat, Seven Star LLC supplies the M2000 to district cooling plants, commercial and hospitality developments, hospital complexes, and industrial facilities operating within the Sohar and Salalah economic free zones, where accurate flow accounting supports both utility billing and energy-efficiency programs. Food and beverage processors, chemical plants, and oil and gas support facilities across the region also depend on the M2000’s chemical-resistant liner options and communication flexibility to integrate flow data directly into their SCADA and plant historian systems.

Technical Specifications

The table below summarizes the core technical specifications of the Badger Meter M2000, confirming why the Badger Meter M2000 electromagnetic flow meter is specified across regional utility projects.

Request a Quote for Badger Meter M2000 Electromagnetic Flow Meter

Seven Star LLC invites utilities, EPC contractors, and industrial procurement teams across Oman and the GCC to submit a formal RFQ for the Badger Meter M2000 electromagnetic flow meter. Lead time and availability are confirmed at quotation, and our instrumentation division can provide the full technical datasheet, wiring diagrams, and sizing support to match the correct liner, electrode, and communication configuration to your application. Seven Star LLC supplies the equipment with manufacturer documentation and dedicated local technical support — contact our team today to request a quotation or arrange a technical consultation.
