Brand: ABB

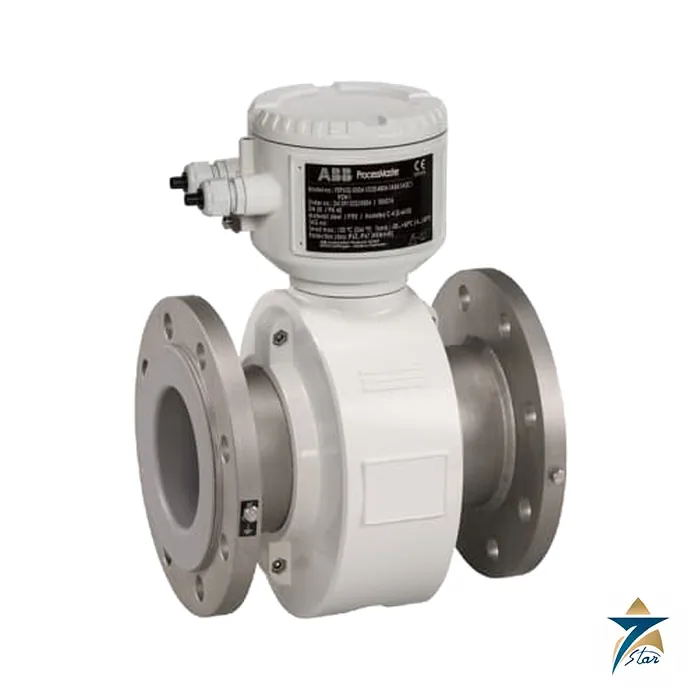

ABB Electromagnetic flowmeter ProcessMaster FEP630
Description
Overview
The ABB ProcessMaster FEP630 is the top-tier model in ABB’s ProcessMaster electromagnetic flowmeter range, described by ABB as “the first choice for all industrial applications,” built for process points where the highest measurement confidence and the most extensive self-diagnostics justify the premium over the mid-tier FEP610 and entry-level FEP300. It measures conductive liquids down to a minimum conductivity of just 5 µS/cm, roughly four times more sensitive than the FEP610’s 20 µS/cm threshold, extending reliable measurement to weakly conductive process fluids the lower tiers cannot handle.
Operating Principle
Flow measurement follows the same Faraday’s-law induction principle as every ABB electromagnetic flowmeter – a conductive fluid moving through an induced magnetic field generates a voltage at the measuring electrodes proportional to velocity – but the FEP630 carries ABB’s most extensive onboard diagnostic and self-verification functionality, built around an on-board health check that uses sensor and transmitter “fingerprint” technology to confirm measurement integrity without removing the meter from the line. Standard accuracy is 0.4% of measured value, with an optional enhanced-accuracy configuration tightening this to as low as 0.2%.
This self-verification capability allows an operator to confirm the meter’s calibration integrity between scheduled proving events, a meaningful advantage on process points where the cost or disruption of physically removing a meter for calibration is high. The FEP630’s diagnostic suite extends to gas bubble detection, partial-fill monitoring, electrode impedance tracking, and continuous conductivity monitoring, giving operators visibility into process conditions that could otherwise silently compromise measurement confidence.
Engineering Design of the ProcessMaster FEP630
The FEP630 carries the full range of liner and electrode material options across the ProcessMaster platform, spanning DN 3 to DN 2000 (1/8 to 80 inch), with HART 7.1 communication supported as standard for integration into demanding digital process control architectures. Medium temperature is rated up to 180°C, a meaningful step above the FEP610’s 130°C standard rating, extending the FEP630 into higher-temperature process duty that the mid-tier model cannot cover.
Where the FEP610 adds electrode-coating and empty-pipe detection, the FEP630 extends this further with the platform’s most comprehensive self-verification and diagnostic suite, including installation-time noise and grounding verification and ongoing service interval monitoring, reflecting its position as the instrument ABB engineers for applications that cannot tolerate an undetected drift in measurement accuracy. The platform is also designed for backward compatibility, protecting the wiring and process-connection investment of customers upgrading from earlier ProcessMaster generations.
Key Features
The FEP630 represents the top of ABB’s ProcessMaster range, combining the widest sensitivity range with the deepest diagnostic capability.
- ABB’s most extensive ProcessMaster diagnostic and self-verification suite, including fingerprint-based health checks.
- Minimum conductivity threshold of just 5 µS/cm, covering weakly conductive fluids the FEP610 cannot measure reliably.
- Standard accuracy of 0.4%, with an optional configuration down to 0.2%.
- Medium temperature rating up to 180°C.
- Continuous validation of sensor and transmitter health between calibrations.
- HART 7.1 communication standard.
- No moving parts, no pressure drop across the meter.
- Full liner and electrode material options across the ProcessMaster platform.
Industrial Applications
The ProcessMaster FEP630 is used at critical process flow points, high-value chemical dosing, weakly conductive process streams, and custody-adjacent measurement locations across Muscat, Sohar, Salalah, and the wider GCC, where the cost of an undetected measurement error outweighs the premium of the top ProcessMaster tier. Its 5 µS/cm sensitivity and 180°C temperature rating also make it the correct choice for demineralized water, high-temperature process streams, and other duty at the edge of what a standard electromagnetic flowmeter can reliably measure.
Technical Specifications
The table below summarizes the ProcessMaster FEP630’s core specifications as supplied by Seven Star LLC.
| Parameter | Specification |
|---|---|
| Model | ABB ProcessMaster FEP630 |
| Technology | Electromagnetic (Faraday’s law induction) |
| Line size range | DN 3 to DN 2000 (1/8 to 80 inch) |
| Accuracy | 0.4% of measured value standard; optional down to 0.2% |
| Minimum conductivity | 5 µS/cm |
| Medium temperature | Up to 180°C |
| Diagnostics | Fingerprint health check, gas bubble/partial-fill detection, electrode impedance and conductivity monitoring |
| Communication | HART 7.1 standard |
| Media | Conductive liquids, critical/high-value applications |
| Positioning | Top-tier ProcessMaster model |
Request a Quote for ABB Electromagnetic flowmeter ProcessMaster FEP630
Contact Seven Star LLC to submit a formal RFQ for the ABB ProcessMaster FEP630, request the full technical datasheet, or check current availability and lead time across Oman and the GCC.
Related Products
- pFlow E3RO Ultrasonic Thermal Energy Meter
- Siemens SITRANS FM MAG 5100W Electromagnetic Flow Sensor
- ABB-Vortex flowmeter VortexMaster FSV450
- Cameron NuFlo FE-1000E/FE-1000F Liquid Turbine Flowmeter Assembly, 3-inch ANSI 150#
- ABB FPD160 Orifice Flange Assembly
- pFlow QMF Inline Micro Flow Sensor
Where the ABB ProcessMaster FEP630 is used
- Water and wastewater lines
- Chemical process lines
- Weakly conductive liquids
- Process points needing diagnostics
- Industrial plant flow measurement
Selection checklist for the ABB ProcessMaster FEP630
- Line size
- Liner material
- Electrode material
- Fluid conductivity
- Medium temperature
- Output and communication
- Diagnostic needs
- Remote or integral transmitter
Installation, commissioning and maintenance notes for the ABB ProcessMaster FEP630
Fit the sensor in the line with the flanges aligned and ground it as the manual shows. Connect the transmitter and set the range. Run the built-in health check at regular intervals.
Requesting a quotation for the ABB ProcessMaster FEP630
Please send the line size, the fluid and the liner and electrode materials needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
FEP630 meter type
It is an electromagnetic flowmeter.
FEP630 maker
It is made by ABB.
FEP630 range position
It is the top-tier model in the ProcessMaster range.
FEP630 lower models
The FEP610 is the mid-tier model and the FEP300 is the entry-level model.
FEP630 fluids
It measures conductive liquids.
FEP630 conductivity
The minimum conductivity is 5 microsiemens per cm.
FEP630 versus FEP610
The FEP610 threshold is 20 microsiemens per cm.
FEP630 weak fluids
It reaches weakly conductive fluids that the lower tiers cannot handle.
FEP630 principle
It uses Faraday induction to find the flow velocity.
FEP630 health check
An on-board health check confirms measurement integrity.
FEP630 fingerprint
The check uses sensor and transmitter fingerprint technology.
FEP630 in-line check
The meter stays in the line during the check.
FEP630 between provings
It confirms calibration integrity between scheduled proving events.
FEP630 gas bubbles
Diagnostics include gas bubble detection.
FEP630 partial fill
Diagnostics include partial-fill monitoring.
FEP630 electrode impedance
Diagnostics include electrode impedance tracking.
FEP630 conductivity monitoring
Diagnostics include continuous conductivity monitoring.
FEP630 materials
It carries the full range of liner and electrode material options.
FEP630 size range
Sizes run from DN 3 to DN 2000.
FEP630 inch sizes
These sizes are 1/8 to 80 inch.
FEP630 communication
HART 7.1 communication is supported as standard.
FEP630 digital integration
It connects to digital process control systems.
Flow records for the ABB ProcessMaster FEP630
Record the line size, the range setting and the date of each health check.
Choosing the right ABB ProcessMaster FEP630 liner
Choose the liner and the electrodes from the fluid and the temperature.
Datasheets & Documents
- Instruction Manual ABB-Electromagnetic flowmeter ProcessMaster FEP630 Manual Download
Reviews (0)
About brand
ABB is the Swiss-Swedish engineering group for electrification and automation: low voltage drives, motors, circuit breakers and motor control, process instruments and analysers, control systems and robots. It was formed on 5 January 1988 by the merger of two older companies. ASEA was founded in Västerås, Sweden, in 1883 by Ludvig Fredholm to make electric lighting and generators. BBC Brown Boveri was founded in Baden near Zurich in 1891 by Charles E. L. Brown and Walter Boveri. ABB Ltd is incorporated in Switzerland, headquartered in Zurich and listed on the SIX Swiss Exchange and Nasdaq Stockholm.
ABB company profile
| Formed | 5 January 1988, by the merger of ASEA (Sweden) and BBC Brown Boveri (Switzerland), each holding 50% |
|---|---|
| ASEA | Founded 1883 in Västerås, Sweden, by Ludvig Fredholm; first products electric lighting and generators |
| Brown, Boveri & Cie | Founded 1891 in Baden, Switzerland, by Charles E. L. Brown and Walter Boveri |
| Headquarters | Zurich, Switzerland; ABB Ltd became the group holding company in 1999 |
| Ownership | Public company listed on SIX Swiss Exchange and Nasdaq Stockholm |
| Brands in the group | Baldor (US motors, acquired 2011), B&R (machine automation, acquired 2017), K-TEK level instruments, Endura and Navigator analysers, SACE breakers |
| Product families | Low and medium voltage drives (ACS series), motors, SACE Tmax and Emax breakers, contactors and soft starters, flow, pressure, temperature and level instruments, liquid and gas analysers, Contrac actuators, AC500 PLCs, Ability System 800xA and S800 I/O, protection relays, robots |
Milestones
- 1883: ASEA is founded in Västerås, Sweden.
- 1891: Brown, Boveri & Cie is founded in Baden, Switzerland.
- 1987–1988: The merger is announced on 10 August 1987; ABB Asea Brown Boveri starts operating on 5 January 1988.
- 1999: ABB Ltd, incorporated in Switzerland, becomes the single holding company of the group.
- 2011 and 2017: Baldor Electric and B&R join ABB.
- 2020: ABB sells its power grids business to Hitachi, focusing on electrification, motion, process and machine automation.
Choosing an ABB drive
ABB's ACS drive codes are easy to read once you know the pattern. In ACS580-01-046A-4, "ACS580" is the drive family, "01" means a wall-mounted single drive, "046A" is the rated output current (about 46 A) and "-4" means a 380–480 V supply. The family is chosen by application: ACS355 for compact machinery, ACS310 for simple pumps and fans, ACS580 as the general-purpose drive, ACQ580 for water and wastewater with pump functions such as pipe fill and dry-run protection, and ACS880 for heavy industrial duty with direct torque control. Size the drive on the motor's full-load current, not only its kW rating, and allow derating for the high ambient temperatures common in Gulf electrical rooms.
Where ABB products are used
In Oman and the GCC, ABB drives and motors run pumps, fans and compressors in water and wastewater plants, district cooling, oil and gas and industry. ABB flowmeters, level instruments and analysers are used in water utilities, power and desalination plants and refineries, and SACE breakers protect switchboards in buildings and plants.
ABB products we list
| Family | Examples |
|---|---|
| AC drives | ACS580, ACS580-01-046A-4, ACQ580, ACS355, ACS310, ACS880-01, FEN-31 encoder module |
| Breakers, motor control and protection | SACE Tmax XT, XT3N 250, SACE Emax 2, AF09 contactor, PSR soft starter, REM615 relay |
| Flow measurement | ProcessMaster FEP300, AquaMaster4, CoriolisMaster FCB430, VortexMaster FSV430, SwirlMaster FSS430, OriMaster FPD500 |
| Pressure, temperature and level | 266DRH, 267CS multivariable, TTH300, K-TEK AT100, LMT200, MT5000 GWR, KM26 gauge |
| Analysers | Endura AZ20, AK100 hydrogen purity, Navigator AW641 silica, AW402 chlorine, AWT210 |
| Control systems and actuators | AC500, AC500-S, S800 AI810, AC 800F SA 811F, Contrac RSD50, Contrac RHD4000 |
Ordering ABB products: what we need
Send the full type code from the nameplate (for example ACS580-01-046A-4 or 266DSH...) and, for spare parts, the ABB ID number (such as 3BSE008508R1 or 1SBL176001R3010). For drives, add the motor power and current and any option codes (+...). For instruments, send the complete order code, which sets range, materials and approvals. Baldor motors are listed on their own brand page.
Facts checked against ABB company filings and published histories of ASEA and Brown, Boveri & Cie, October 2026.
Related products
Frequently Asked Questions
What sets the FEP630 apart from the FEP610?
The FEP630 extends the FEP610's coating and empty-pipe detection with ABB's most comprehensive self-verification suite, continuously validating sensor and transmitter health between calibrations.
When does the FEP630's extended diagnostic capability matter most?
It matters most at critical or high-value process flow points where an undetected measurement drift would carry real financial or operational consequences.
What communication protocols does the FEP630 support?
HART, PROFIBUS PA, and FOUNDATION Fieldbus are all supported, covering the most demanding digital process control integration requirements.
Does self-verification replace the need for periodic calibration?
It does not replace formal calibration, but it lets operators confirm calibration integrity between scheduled proving events, reducing the risk of an undetected drift going unnoticed.
Is Seven Star LLC an experienced supply partner for ABB products?
Yes, Seven Star LLC is a trusted ABB supplier supplying and specifying the ProcessMaster FEP630 across Oman and the GCC.
