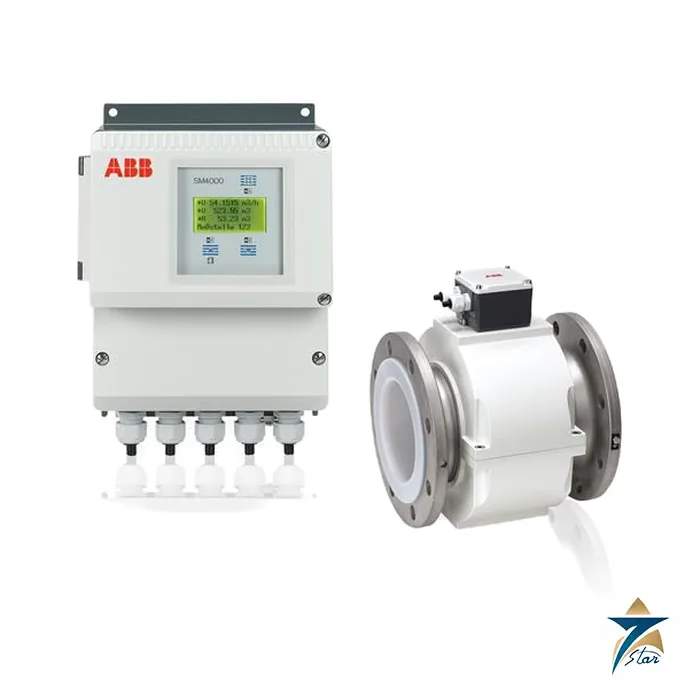

ABB Electromagnetic flowmeter FSM4000

Overview

The ABB FSM4000 is a robust electromagnetic flowmeter built for heavy-duty applications – high-solids content, high pulp-stock content, pulsating flows, and other demanding process noise conditions that push a standard-duty electromagnetic meter like the ProcessMaster FEP500 (see related product) beyond its intended service. It covers a dramatically wider line size range, from DN3 to DN1000 (1/10 to 40 inches), spanning applications from tiny sample lines to the largest industrial process and raw water mains, with an accuracy of ±0.5% of measured value above 0.05 QmaxDN.

Seven Star LLC supplies the FSM4000 as a trusted supplier of ABB products across Oman and the GCC, specifying it for pulp and paper, mining slurry, wastewater, and other demanding process lines where a standard electromagnetic flowmeter would struggle with signal noise or liner wear, and backing every installation with genuine ABB hardware and full calibration documentation.

Operating Principle

Like every electromagnetic flowmeter, the FSM4000 applies Faraday’s law – a conductive fluid moving through an induced magnetic field generates a voltage proportional to its velocity – but its signal processing electronics are specifically engineered to remain stable in the presence of the electrical noise that high-solids and pulsating flows introduce, noise that can otherwise corrupt the measurement of a less-robust electromagnetic meter. The transmitter continuously monitors signal-to-noise ratio and can detect changes in the fluid itself, such as gas bubbles or shifts in solids content, flagging conditions that would degrade measurement confidence on a standard meter.

This noise immunity is what allows the FSM4000 to deliver dependable readings in applications like concentrated sludge, pulp stock, mining slurry, and raw sewage, where solid content and flow pulsation are routine operating conditions rather than occasional upsets. Configurable damping from 0.07 to 20 seconds lets engineers tune the meter’s response to match the severity of pulsation in a given line, smoothing out noise without masking genuine flow changes.

Engineering Design of the FSM4000

The meter is rated for nominal pressures from PN10 to PN40, or ASME Class 150 and 300, and is available with a choice of liner materials – PFA, PTFE, hard rubber, soft rubber, or ceramic carbide – selected to match the abrasiveness and chemistry of the process fluid, with the harder rubber and ceramic carbide options specifically suited to abrasive slurry service that would quickly wear a standard PTFE-lined meter. Electrode material options include stainless steel 1.4571 (316 Ti) as the default for rubber-lined meters, along with 1.4539 (904L), Hastelloy B-3, Hastelloy C-4, platinum-iridium, tantalum, and titanium for more aggressive or corrosive media.

Medium temperature is rated from -25°C to 130°C in standard configuration, extending to 180°C in the high-temperature design, with the ambient transmitter range of -20°C to 60°C well suited to Oman’s climate, and stainless-steel-flanged variants supporting medium temperatures down to -40°C for cold process or refrigerated slurry lines. Communication is via HART as standard, with PROFIBUS PA and FOUNDATION Fieldbus available for integration into process control systems, matching the digital connectivity of the rest of ABB’s electromagnetic flowmeter range while adding the mechanical and signal-processing robustness the FSM4000 name implies.

Key Features

The FSM4000 brings ABB’s electromagnetic measurement platform to the demanding, high-solids, and pulsating-flow duty that standard meters cannot handle reliably.

• Engineered for high-solids, high pulp-stock, concentrated sludge, and pulsating flow applications.
• Exceptionally wide size range: DN3 to DN1000 (1/10 to 40 inches).
• Measurement accuracy of ±0.5% of measured value above 0.05 QmaxDN.
• Pressure ratings from PN10-40 or ASME Class 150/300.
• Liner options including hard rubber and ceramic carbide for abrasive slurry duty.
• Noise-resistant signal processing with configurable damping from 0.07 to 20 seconds.
• Signal-to-noise monitoring that flags gas bubbles or changes in solids content.
• HART standard; PROFIBUS PA and FOUNDATION Fieldbus available.

Industrial Applications

The FSM4000 is used in pulp and paper mills, mining and mineral processing, and municipal wastewater and raw sewage lines across Muscat, Sohar, Salalah, and the wider GCC wherever high solids content, abrasive slurry, or pulsating flow would compromise a standard electromagnetic flowmeter’s reliability. Its wide DN3-1000 size range also makes it suitable for everything from small sludge-recirculation sample lines to the largest raw sewage and mineral-slurry mains found at municipal treatment works and mining processing plants across the region.

Seven Star LLC, as a trusted ABB supplier, reserves the FSM4000 for these heavy-duty conditions and specifies the standard ProcessMaster FEP500 for conventional process liquids, so customers across Oman’s industrial and municipal utility sectors pay for the FSM4000’s added robustness only when the application genuinely requires it.

Technical Specifications

The table below summarizes the FSM4000’s core specifications as supplied by Seven Star LLC.

Request a Quote for ABB Electromagnetic flowmeter FSM4000

Contact Seven Star LLC to submit a formal RFQ for the ABB FSM4000 heavy-duty electromagnetic flowmeter, request the full technical datasheet, or check current availability and lead time for high-solids or pulsating flow service across Oman and the GCC. With engineering support in Muscat, Seven Star LLC’s instrumentation division can help specify the correct liner, electrode, and damping configuration for your slurry or sludge application.
