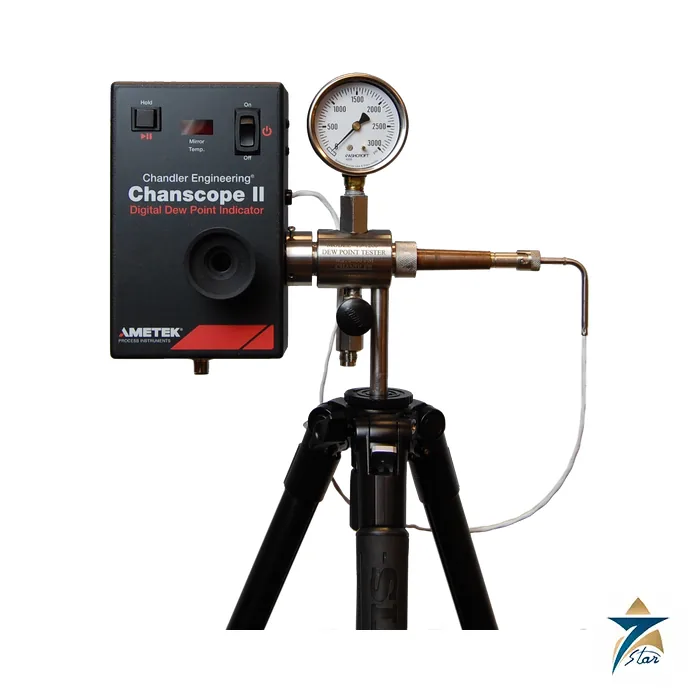

AMETEK Chandler Chanscope II and Model 13 Dew Point Testers
Description
The AMETEK Chandler Chanscope II and the Model 13 Bureau of Mines Dew Point Tester are primary, chilled-mirror instruments that measure the dew point temperature of any gas. Both are rugged and portable, the data sheet states that a measurement needs only a process gas connection and a coolant connection, and they are frequently used to verify the readings of fixed hydrocarbon and water dew point analyzers.
Seven Star LLC supplies the Chanscope II and Model 13 from Muscat for gas plants, pipelines and laboratories that need a reference dew point check.
A primary dew point method for both water and hydrocarbons
A polished mirror sits at one end of a chamber and a viewing window at the other. The operator lets expandable gas through a valve to cool the mirror until the dew point is seen, which is the definition of dew point. Because moisture and hydrocarbon dew point are obtained by the same method, a single tester covers both. AMETEK states that, as primary instruments, the testers need no calibration, can be used in sour natural gas and are easy to maintain.
The Model 13 is described as the industry standard for dew point measurement and meets ASTM D1142. The Chanscope II is labelled as a digital dew point indicator, is battery-powered (NiMH) with a smart charger, and uses an RTD traceable to NIST with NIST certification included. Observed dew point temperature and pressure can be entered into available moisture content software to calculate the water content of the gas.
Technical specifications
| Parameter | Specification |
|---|---|
| Chanscope II accuracy | +/-0.2 degC (+/-0.4 degF) from 40 degC to -90 degC; NIST certification included |
| Chanscope II dew point range | -29 degC to ambient with liquid propane; -62 degC to ambient with liquid carbon dioxide; -129 degC to ambient with optional liquid nitrogen chiller |
| Chiller options | Regular (propane or CO2); dipstick-type liquid nitrogen chiller; -75 degC with dry ice/acetone |
| Ambient temperature | -20 to 40 degC (-4 to 104 degF) |
| Operating pressure | Up to 5000 psig (34.6 MPa); optional LCD readout pressure gauge |
| Connections | Sample inlet and outlet 1/8 in. NPT; refrigerant 1/8 in. tube |
| Power (Chanscope II) | Battery (NiMH); 100-240 VAC, 50/60 Hz smart charger |
| Ship weight / case | 11 kg (25 lb); water-tight resin case 457 x 178 x 355 mm |
| Model 13 accuracy | +/-0.25 degC (+/-0.5 degF) |
| Model 13 dew point range | Depends on the thermometer chosen |
| Model 13 pressure / connections | Up to 5000 psig; 1/8 in. NPT sample ports, 1/8 in. tube refrigerant |
| Standard | Model 13: ASTM D1142 |
Where dew point testers are used
AMETEK lists natural gas pipelines, custody transfer stations, gas processing plants, natural gas liquids separation, industrial gases and heat treating furnaces, in the natural gas, steam and heat treating, industrial gas, refining and chemical markets.
To quote, state whether the Chanscope II or the Model 13 is wanted (or both), the chiller needed for the lowest dew point to be read, the operating pressure, and whether the optional LCD pressure gauge is required. For the liquid nitrogen chiller, the lowest dew point to be measured decides the option. Observe the manufacturer manual for operating pressure and coolant handling.
Documents and quotation
To request a quotation for the dew point tester, send Seven Star LLC the full model or order code, quantity, and any nameplate data from an existing unit that is being replaced or matched. Our Muscat team checks the request against the manufacturer document, which can be downloaded from this page, and replies with a formal quotation. Prices, stock and lead times are confirmed per inquiry.
For continuous measurement on the same gas line, see AMETEK 241CE II hydrocarbon dew point analyzer, or browse the gas analyzer systems category.
