Allen-Bradley 800T-A2A 30 mm Flush Push Button

Name: Allen-Bradley 800T-A2A Push Button | Seven Star LLC
Brand: Allen-Bradley
SKU: 800T-A2A

Description

Black flush push button for 30.5 mm holes

The Allen-Bradley 800T-A2A is a complete 30 mm push button from the 800T series: a black round flush-head operator with a momentary action and a standard 800T-XA contact block holding one normally-open and one normally-closed contact. The Rockwell product page lists a plastic cap on a metal operator body.

It mounts in a 30.5 mm hole and is listed for NEMA Type 1, 4, 12 and 13 enclosures. A flush head is the usual choice for START or general-purpose commands because it is harder to hit by accident than a projecting button, while a mushroom head is more common for stop and emergency use.

Contact block and electrical data

The contact block is rated 10 A thermal current and 600V maximum operational voltage, with AC-15 / A600 utilization in AC and DC-13 / Q600 in DC. Electrical design life is one million cycles at maximum load, and the operator is rated for 10 million mechanical cycles minimum.

Terminals are screw type, take two 14 to 18 AWG wires each, and need 6 to 8 lb-in (0.7 to 0.9 N-m). Shock resistance is 25 G contact fragility and 100 G no damage, with vibration up to 10 G.

Environmental figures matter for outdoor and washdown panels. The product page gives -25 C as the lowest operating temperature and -40 C for storage, while the series datasheet quotes a wider -40 to +55 C operating range for LED versions and certifications including UL 508, CSA, CE and CCC. The same document also covers the 800H series, which should be reviewed if the application needs a different construction.

Before ordering, confirm the colour, the contact arrangement (this one is 1 N.O. and 1 N.C.) and whether a guard or legend plate is needed.

Technical specifications

Parameter	Specification
Catalog number	800T-A2A
Type	30 mm momentary push button
Cap	Black, flush head, plastic
Contact block	1 N.O. + 1 N.C., 800T-XA
Mounting hole	30.5 mm
Enclosure types	NEMA 1, 4, 12, 13
Contact rating	10 A thermal, 600V, A600 / Q600
Contact life	1,000,000 cycles at max load
Operator life	10,000,000 cycles minimum
Terminals	Screw, 2 x 14-18 AWG, 0.7-0.9 N-m
Illuminated	No

Using it on a panel door

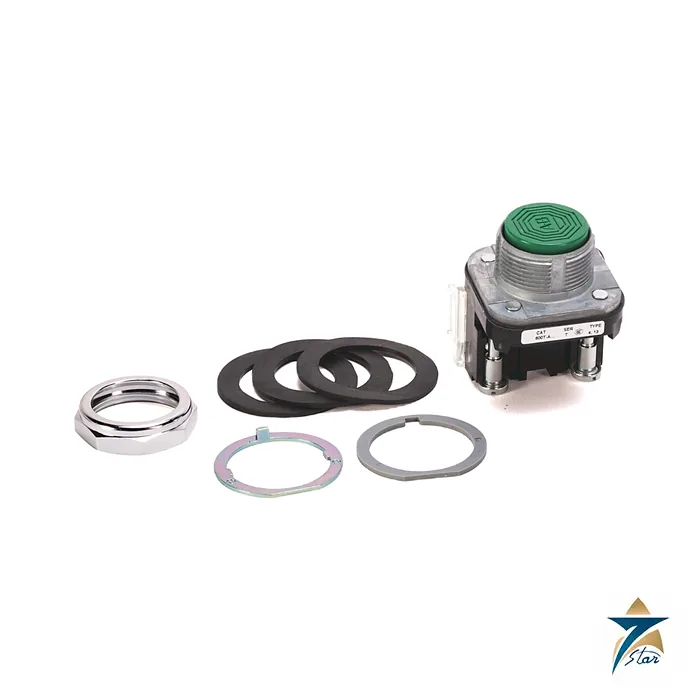

Because the button is not illuminated and has no special function, the same panel can use a matching black flush button for jog or reset and a green version for start, using other 800T catalog numbers. The family image shown on this page is the green 800T-A1A, because Rockwell publishes it for the flush series; the black operator on this catalog number differs only in colour.

Check the legend plate, guard or lock-out accessory you need, as these are separate catalog numbers, and confirm the panel cut-out and thickness against the 800-TD009 drawings.

Ordering and documents

Quote 800T-A2A in full. The hosted document is Rockwell’s 800-TD009L specification (September 2025) for 800T and 800H 30 mm push buttons. Values on this page come from that document and the product page.

Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.

Browse more items in Automation Accessories on our site, or send us the part number for a quotation.

Datasheets & Documents

Datasheet 30 mm Push Button Specifications, Bulletins 800T and 800H (800-TD009L-EN-P, September 2025) Download
