Allen-Bradley 1492-W4 4 mm2 Screw Terminal Block

Name: Allen-Bradley 1492-W4 Terminal Block | Seven Star LLC
Brand: Allen-Bradley
SKU: 1492-W4

Description

4 mm2 screw terminal block in the 1492-W series

The Allen-Bradley 1492-W4 is a feed-through screw terminal block from the 1492-W series. The datasheet lists 6 mm width, 45.3 mm height and 35 mm depth, a UL/CSA rating of 600V and 30 A, an IEC rating of 800V and 32 A, a conductor range of 0.5 to 4.0 mm2 and a strip length of 9 mm.

The product page names Mexico as the country of origin. Its short description reads IEC terminal block 8 x 47.6 x 41 mm screw, which differs from the dimension attribute printed on the same page; use the datasheet drawing for panel layout and confirm before ordering.

Because the two sources differ, we recommend sending the final terminal block layout to us with the request. We will then quote the catalog number you give and, where possible, point to the Rockwell document that supports each rating.

Electrical data

With 800V and 32 A on the IEC side and 600V and 30 A on the UL/CSA side, the block suits general control and power wiring up to those limits. The 4 mm2 size is common for feeder wiring of small motors and for power distribution inside control panels.

The W series is a different family from the 1492-J blocks. The datasheet covers both, so the choice between them usually depends on the preferred terminal style, accessories and panel standard.

Technical specifications

Parameter	Specification
Catalog number	1492-W4
Type	Screw terminal block, 4 mm2
Size (W x H x D)	6 x 45.3 x 35 mm (datasheet attribute)
UL / CSA rating	600V, 30 A
IEC rating	800V, 32 A
Conductor range	0.5 to 4.0 mm2
Strip length	9 mm
Country of origin	Mexico
Document	1492-TD015A

Selection notes

Check the stripping length of 9 mm and the conductor range of 0.5 to 4.0 mm2 against your wire. Use ferrules if your panel standard requires them for fine-stranded conductors.

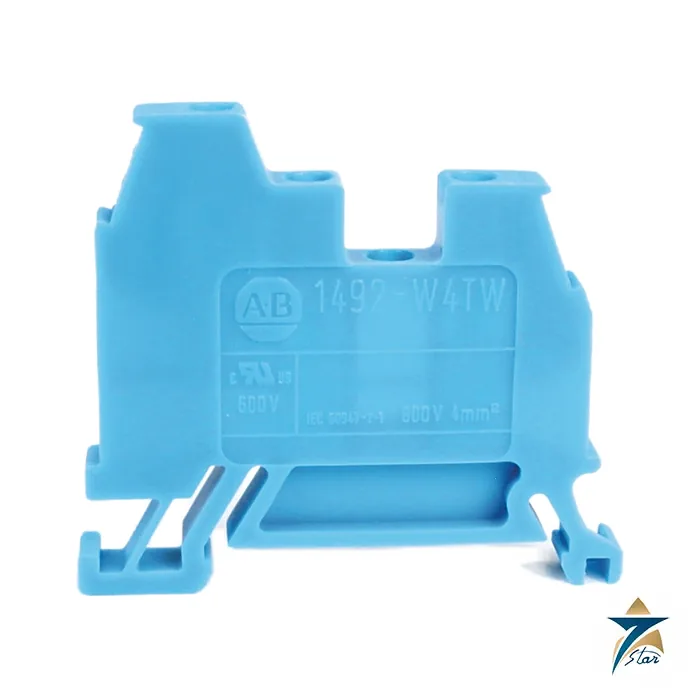

The image on this page is the 1492-W4TW-B family image from Rockwell and not the plain 1492-W4; accessories such as jumpers, end plates and markers are separate catalog numbers.

Ordering and documents

Order 1492-W4 in full. Hosted document: 1492-TD015A. Seven Star LLC does not infer values that Rockwell does not print; where two sources disagree, we say so.

Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.

Planning example, derived arithmetic only: ten motor-feeder circuits of three phases each use thirty blocks, which occupy about 180 mm of rail at 6 mm each, excluding end plates and earth blocks. Check the rail length and the derating of the combination of blocks against the panel temperature using the datasheet notes.

Please send the quantity of 1492-W4, the conductor sizes, the control voltage, and the accessories needed with it. Small panel components are easy to under-specify, so we confirm each accessory by catalog number before preparing the quotation (4 mm2 IEC screw terminal block, 800V IEC 32 A, 600V UL/CSA 30 A, 0.5-4 mm2).

Browse more items in Automation Accessories on our site, or send us the part number for a quotation.
