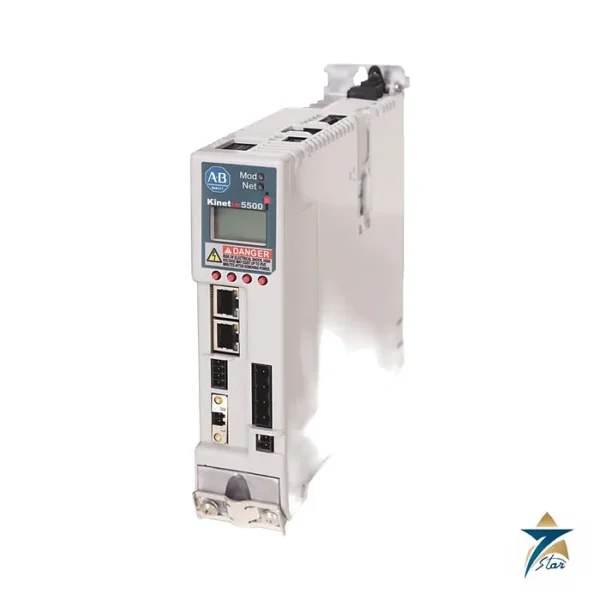

Allen-Bradley 2198-H025-ERS2 Kinetix 5500 5.1 kW Servo Drive

Name: Allen-Bradley 2198-H025-ERS2 Kinetix 5500 Drive | Seven Star
Brand: Allen-Bradley
SKU: 2198-H025-ERS2

Description

A Kinetix 5500 servo drive rated 5.1 kW at 480V

The Allen-Bradley 2198-H025-ERS2 is a Kinetix 5500 EtherNet/IP servo drive for Integrated Motion on Logix controllers. Rockwell lists its continuous output power as 5.1 kW at 480V AC three-phase, 2.4 kW at 230V three-phase. Continuous output current is 8.0 A rms (11.3 A zero-to-peak), with a peak of 20.0 A rms (28.3 A zero-to-peak) for one second. It is the integrated safe torque-off version.

It is the first frame 2 drive, 55 mm wide, and the first rating without single-phase input. Input is 195 to 264V three-phase 240V or 324 to 528V three-phase 480V, 47 to 63 Hz, and the drive is limited to one power cycle per minute.

Technical specifications

Parameter	Specification
Catalog number	2198-H025-ERS2
Family	Allen-Bradley Kinetix 5500, EtherNet/IP
Safe torque-off	Integrated
AC input	195-264V rms 3-phase (240V nom); 324-528V rms 3-phase (480V nom)
Main AC input current (240V)	8.3 A three-phase
Output power	5.1 kW at 480V; 2.4 kW at 230V three-phase
Output current	8.0 A rms / 11.3 A 0-pk
Peak current (1 s)	20.0 A rms / 28.3 A 0-pk
Frame width / weight	55 mm (2.16 in.) / 2.3 kg (5.0 lb)
Internal shunt	60 ohm, 50 W
Bandwidth	Velocity loop 300 Hz max; current loop 1000 Hz
Control power (24V DC)	0.8 A, non-brake motors
PWM frequency	4 kHz

Mounting and cabinet planning

The housing is 55 mm (2.16 in.) wide and weighs 2.3 kg (5.0 lb) according to the datasheet weight table. The installation instructions recommend a minimum cabinet depth of 300 mm (11.81 in.) and 40 mm (1.57 in.) of clearance above and below a single drive, with extra clearance for cables and for the shared-bus connectors on top.

Control power is 24V DC at 0.8 A for non-brake motors, and rises by 2 A when a motor holding brake is energised, so size the 24V supply with the whole axis count in mind.

Numbers worth checking before you quote

The one-second peak of 20.0 A rms is roughly 2.50 times the 8.0 A continuous value (derived); axes with long accelerations should be checked against the duty-cycle charts in the datasheet. The 24V control supply must provide 0.8 A for motors without a brake and 2.8 A with a 2 A holding brake, plus 3.0 A inrush for under 30 ms.

Line-side planning: 30 A maximum inrush, 24.9 A peak AC input current at 240V three-phase.

Ordering and documents

Use the complete catalog number 2198-H025-ERS2; the suffix tells you the STO type, so confirm it matches the safety design. The motor, cable, 24V supply, line filter and any shunt or capacitor module are separate items. The hosted file is installation instruction 2198-IN001; performance data comes from KNX-TD003N (June 2026).

Supply is quoted per request by Seven Star LLC, an independent supplier in Muscat. Treat the figures here as a guide and confirm with Rockwell.

For a servo project built around 2198-H025-ERS2, tell us the axis count, the motors and cables in use, the supply voltage, the safety concept (hardwired or integrated) and the controller platform. A complete Kinetix system also needs power supplies, cables and filters, and a short parts list lets us check that nothing essential is missing before the quotation (Kinetix 5500 servo drive, 5.1 kW at 480V, 8.0 A rms, integrated STO, EtherNet/IP).

Browse more items in Servo Drives on our site, or send us the part number for a quotation.
