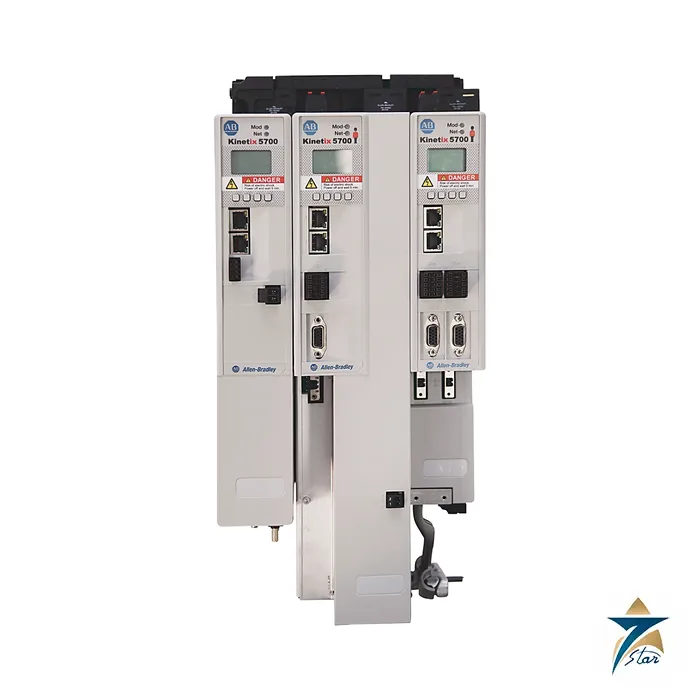

Allen-Bradley 2198-D006-ERS3 Kinetix 5700 Dual-Axis Servo Drive

Name: Allen-Bradley 2198-D006-ERS3 Kinetix 5700 | Seven Star LLC
Brand: Allen-Bradley
SKU: 2198-D006-ERS3

Description

Dual-axis servo inverter with 2.5 A rms output

If your machine design is built on the Kinetix 5700 DC-bus architecture, 2198-D006-ERS3 is the dual-axis inverter with 2.5 A rms continuous output. It accepts 276 to 747V DC, draws 2.7 A of DC input at rating, and delivers up to 6.3 A rms for one second. Continuous power is 1.7 kW at 480V three-phase (0.9 kW at 240V at half power) per axis.

At 55 mm wide it suits compact dual-axis cells such as pick-and-place heads, small feeders and register axes.

In context, the dual-axis range runs 2198-D006 (2.5 A), D012 (5.0 A), D020 (8.0 A), D032 (13.0 A) and D057 (23.0 A) per axis. Peak current is about 2.52 times continuous (derived) for a window of 1.0 second, which is the number to check against fast acceleration moves.

Technical specifications

Parameter	Specification
Catalog no.	2198-D006-ERS3
Drive type	Kinetix 5700 dual-axis inverter, EtherNet/IP
Output current (rms / 0-pk)	2.5 A rms / 3.5 A 0-pk per axis
Peak (rms / 0-pk)	6.3 A rms / 8.8 A 0-pk per axis
Output power	1.7 kW at 480V three-phase (0.9 kW at 240V at half power) per axis
DC bus current	2.7 A
PWM frequency	4 kHz
DC input voltage	276 to 747V DC
Internal capacitance	165 uF
Power dissipation	17 W at 20% to 65 W at 100%
Module width	55 mm

Heat, cabinet space and weight

The datasheet’s power-dissipation table gives 17 W at 20% of rated output rising to 65 W at 100%, for both axes of the module together. Add this to the panel heat budget. The module weighs 4.16 kg (9.17 lb), and 55 mm of width per module allows tight side-by-side lineups.

Rockwell states that the Kinetix 5700 power density can reduce cabinet space by up to 67% compared with older solutions, a figure from its marketing literature rather than a measurement for this catalog number.

Motors, feedback and cables

The family supports 200V and 400V class motors, both servo and induction, across a power range of 1.6 to 112 kW. Feedback types include single-turn or multi-turn absolute, incremental (up to 30 m of cable) and EnDat; absolute feedback cable can run up to 90 m. Single-cable technology reduces wiring on compatible Kinetix VP motors.

Bandwidth is 400 Hz in the velocity loop and 1000 Hz in the current loop, with 4 kHz PWM, per KNX-TD003N.

Ordering and documents

Specify 2198-D006-ERS3 in full, together with the DC-bus supply, 24V control supply, motor cables and any capacitor or shunt modules, which are separate catalog numbers. The hosted document is the Kinetix 5700 product profile 2198-PP002; ratings come from KNX-TD003N (June 2026).

Seven Star LLC is an independent supplier in Muscat and quotes on request; confirm all ratings against current Rockwell documents.

To quote 2198-D006-ERS3 correctly we need to know the rest of the drive line-up: motors, feedback and power cables, line filter, bus supply and any capacitor or shunt module. Send the axis list and the supply data together with the quantity and the delivery location in Oman (Kinetix 5700 dual-axis inverter, 2.5 A rms per axis, 1.7 kW at 480V, EtherNet/IP).

Browse more items in Servo Drives on our site, or send us the part number for a quotation.
