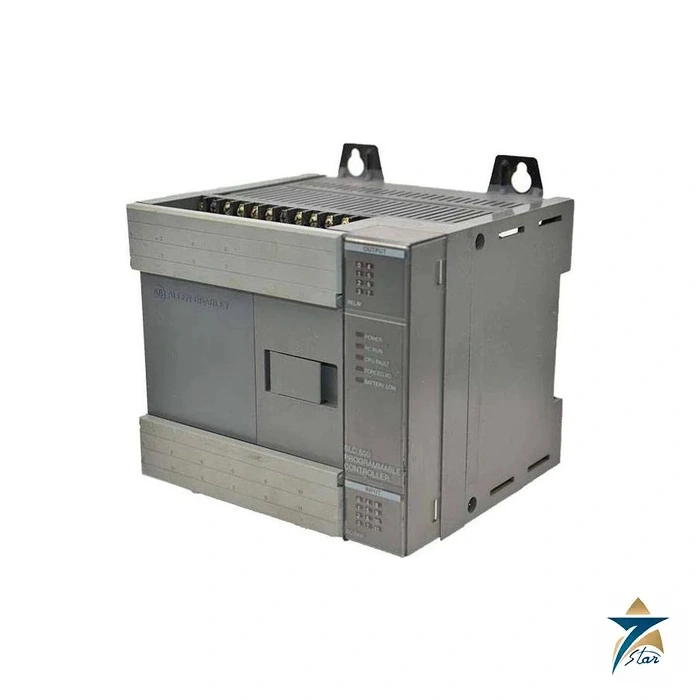

Allen-Bradley 1747-L20C Fixed PLC
Description
An SLC 500 fixed controller with mixed input and relay I/O
The Allen-Bradley 1747-L20C is an SLC 500 fixed controller with twelve sinking 24 V DC inputs and eight AC/DC relay outputs. The input arrangement includes the high-speed-counter input identified in the manufacturer manual.
Its DC input designation should not be confused with the controller supply. The L20C configuration is AC line powered and provides a 24 V DC, 200 mA user supply. Other L20 suffixes use different input, output or supply arrangements, even when the overall point count is the same.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / range | Allen-Bradley / SLC 500 fixed hardware |
| Catalog number | 1747-L20C |
| Inputs | 12 sinking 24 V DC inputs |
| Outputs | 8 AC/DC relay outputs |
| High-speed-counter input | Provided in the L20C input configuration |
| Controller power | AC line powered |
| User supply | 24 V DC, 200 mA |
Replacement planning and wiring
The relay-output execution is distinct from the triac-output L20D and the DC-transistor-output configurations. Match the output load and existing circuit wiring to the exact L20C diagram rather than selecting by twenty I/O points alone.
For an installed-system replacement, retain the controller program, record the full hardware label and check the power and field-wiring arrangements. The user supply rating is 200 mA; account for connected field devices rather than treating it as an unrestricted external power supply.
Documentation and quotation
The SLC 500 fixed-hardware installation manual contains the L20C configuration entry and dedicated wiring diagrams. Send the complete controller code, quantity, installed series identification, program requirements and terminal photographs with an enquiry.
