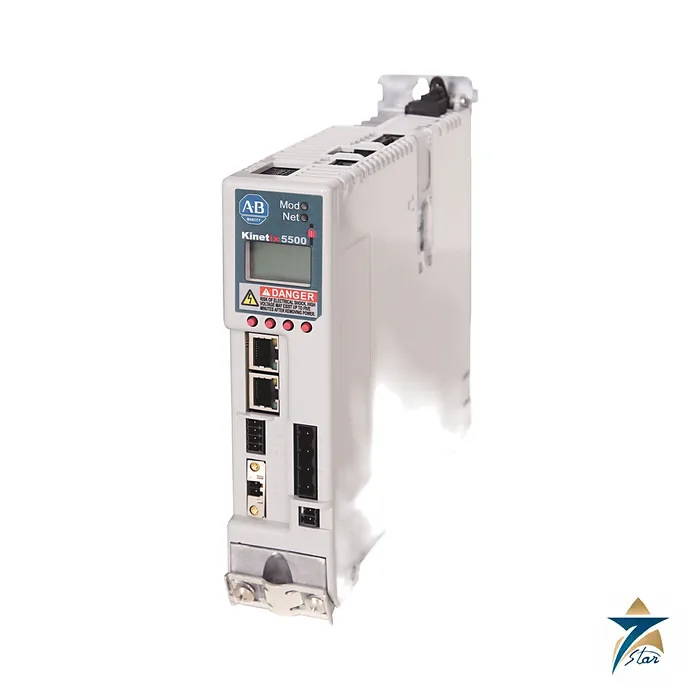

Allen-Bradley 2198-H008-ERS2 Kinetix 5500 1.6 kW Servo Drive
Description
Kinetix 5500 2198-H008-ERS2: 2.5 A rms, integrated STO
2198-H008-ERS2 is the Allen-Bradley Kinetix 5500 catalog number with 2.5 A rms of continuous output current and a one-second peak of 6.25 A rms. Power ratings printed by Rockwell are 1.6 kW at 480V three-phase and 0.8 kW at 230V three-phase, 0.5 kW at 230V single-phase. This is the integrated safe torque-off variant, built for Integrated Motion over EtherNet/IP.
It sits between 2198-H003 (0.6 kW at 480V) and 2198-H015 (3.2 kW at 480V) in frame 1. Rockwell gives the input as 195 to 264V single-phase or three-phase 240V, or 324 to 528V three-phase 480V at 47 to 63 Hz and limits each drive to one power cycle per minute.
Technical specifications
| Parameter | Specification |
|---|---|
| Catalog no. | 2198-H008-ERS2 |
| Product line | Allen-Bradley Kinetix 5500, EtherNet/IP |
| Safety torque-off mode | Integrated |
| Input voltage | 195-264V rms 1- or 3-phase (240V nom); 324-528V rms 3-phase (480V nom) |
| Main AC input current (240V) | 1.7 A single-phase / 2.6 A three-phase |
| Rated power | 1.6 kW at 480V; 0.8 kW at 230V three-phase; 0.5 kW at 230V single-phase |
| Rated current rms / 0-pk | 2.5 A rms / 3.5 A 0-pk |
| Peak rms / 0-pk (1 s) | 6.25 A rms / 8.8 A 0-pk |
| Frame width / weight | 50 mm (1.97 in.) / 1.4 kg (3.0 lb) |
| Internal shunt | 100 ohm, 30 W |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Control power (24V DC) | 0.4 A, non-brake motors |
| Max inrush (0-pk) | 15 A |
Shared bus and common-bus wiring
The Kinetix 5500 uses a shared-bus connection system, so several drives can share an AC or DC bus to save wiring and allow energy exchange between axes. The datasheet gives a nominal bus output of 276 to 747V DC and a short-circuit current rating of 200,000 A (rms) symmetrical. Drives are limited to one power cycle per minute.
2198-H008-ERS2 can run standalone, or as part of a shared AC/DC or shared-hybrid arrangement; Rockwell tables the maximum number of axes per configuration, so confirm with the user manual before lining up several drives.
Numbers worth checking before you quote
Against a continuous 2.5 A rms, the 6.25 A rms peak (about 2.50 times, derived) lasts 1.0 second, so check the motor duty cycle in KNX-TD003 for long acceleration phases. For the 24V DC supply, budget 0.4 A without a brake or 2.4 A with a 2 A brake; the inrush is 2.0 A for under 30 ms.
At power-up the AC inrush reaches 15 A zero-to-peak, which matters when one contactor switches several drives; the printed peak AC input at 240V three-phase is 7.8 A.
Ordering and documents
The part to quote is 2198-H008-ERS2. Decide between hardwired (ERS) and integrated (ERS2) safe torque-off before ordering, as the two are wired differently. Accessories such as motor cables, a 24V supply, line filters, shunts and capacitor modules are not included. The 2198-IN001 installation instructions are hosted; KNX-TD003N (June 2026) supplied the figures.
Supply is quoted per request by Seven Star LLC, an independent supplier in Muscat. Treat the figures here as a guide and confirm with Rockwell.
For a servo project built around 2198-H008-ERS2, tell us the axis count, the motors and cables in use, the supply voltage, the safety concept (hardwired or integrated) and the controller platform. A complete Kinetix system also needs power supplies, cables and filters, and a short parts list lets us check that nothing essential is missing before the quotation (Kinetix 5500 servo drive, 1.6 kW at 480V, 2.5 A rms, integrated STO, EtherNet/IP).
Browse more items in Servo Drives on our site, or send us the part number for a quotation.
