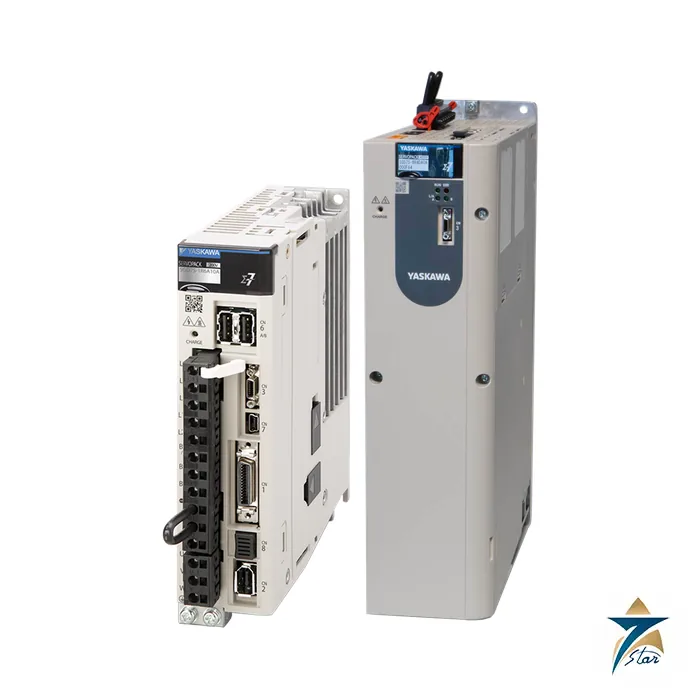

Yaskawa Sigma-7S SGD7S Single-Axis SERVOPACK

Name: Yaskawa SGD7S Sigma-7S SERVOPACK Servo Drive | Seven Star
Brand: Yaskawa
SKU: SGD7S

Description

The Yaskawa Sigma-7S (SGD7S) is the single-axis SERVOPACK of the Sigma-7 servo system: a compact servo amplifier that drives Sigma-7 rotary, direct drive and linear servo motors with 20-bit or 24-bit serial feedback. It is the standard choice for packaging, labelling, pick-and-place, CNC auxiliaries, semiconductor and general motion machinery that needs fast response and high positioning accuracy.

One hardware platform covers analog / pulse train, MECHATROLINK-III and EtherCAT controllers across three voltage classes. Seven Star LLC, an independent supplier in Muscat, quotes SGD7S SERVOPACKs by full model code against the manufacturer technical supplement.

Technical specifications

Parameter	Specification
Series	Sigma-7S single-axis SERVOPACK, model prefix SGD7S
Voltage classes	Three-phase 200 VAC (0.05 to 15 kW), three-phase 400 VAC (0.5 to 15 kW), single-phase 100 VAC (0.05 to 0.4 kW)
200 V continuous / peak current	0.66 Arms continuous (R70A) up to 78.0 Arms continuous (780A); instantaneous maximum 2.1 to 170 Arms
Main and control supply	200 to 240 VAC, -15 % to +10 %, 50/60 Hz; 100 to 120 VAC for the 100 V models; overvoltage category III
Interfaces (5th and 6th digits)	00 analog voltage / pulse train, 30 MECHATROLINK-III, A0 EtherCAT
Control method	IGBT PWM control, sine wave current drive
Feedback (rotary motors)	Serial encoder, 20-bit or 24-bit, incremental or absolute; linear encoders supported with linear motors
Speed control range	1:5000 (analog / pulse models)
Speed fluctuation	+/-0.01 % of rated speed max. for 0 to 100 % load; 0 % for +/-10 % voltage; +/-0.1 % for 25 C +/-25 C
Torque control repeatability	+/-1 %
Soft start	0 to 10 s, set separately for acceleration and deceleration
Built-in regenerative resistor	Models 3R8A to 330A (e.g. 40 ohm / 40 W on 3R8A to 7R6A; 8 ohm / 180 W on 330A); 470A to 780A use an external regenerative resistor unit (JUSP-RA04-E or JUSP-RA05-E)
Degree of protection	IP20 on R70A to 120A; IP10 on 180A to 780A
Ambient temperature	-5 to 55 C (55 to 60 C with derating); storage -20 to 85 C; 95 % RH max, no condensation
Altitude / pollution	1000 m or less, 2000 m with derating; pollution degree 2
Vibration / shock	4.9 m/s2 vibration, 19.6 m/s2 shock
Applicable standards	UL 61800-5-1, CSA C22.2 No.274, EN 50178, EN 61800-5-1, EN 61800-3, EN 61000-6-2, EN 61000-6-4, IEC 61508-1 to 4, IEC 61800-5-2, IEC 62061, ISO 13849-1, IEC 61326-3-1

Model code and options

The Technical Supplement decodes SGD7S-R70A00A as follows: SGD7S, then the capacity code (R70 = 0.05 kW, R90 = 0.1 kW, 1R6 = 0.2 kW, 2R8 = 0.4 kW, 3R8 = 0.5 kW, 5R5 = 0.75 kW, 7R6 = 1.0 kW, 120 = 1.5 kW, 180 = 2.0 kW, 200 = 3.0 kW, 330 = 5.0 kW, 470 = 6.0 kW, 550 = 7.5 kW, 590 = 11 kW, 780 = 15 kW for 200 V), then the voltage letter (A 200 VAC, D 400 VAC, F 100 VAC), a two-digit interface code, and a design revision letter. 400 V MECHATROLINK-III models add hardware option digits (000 without options, 026 with a holding brake relay) and an FT/EX specification field (F64 zone table). A single-phase 200 V supply is available on the 120A model as a hardware option.

Choosing the interface and capacity

Pick the 00 interface when a PLC or motion board sends +/-10 V or pulse references. Choose 30 for MECHATROLINK-III motion controllers and A0 for EtherCAT masters; two-axis SGD7W versions exist in the same supplement for tight multi-axis cabinets. Size the amplifier from motor rated and peak torque, not only kW: the SERVOPACK overload curve is set for a 55 C hot start, and in most pairings the servo motor, not the amplifier, sets the actual overload limit. Models 470A and above require an external regenerative resistor unit, and the 400 V models 210 to 370 have no integrated dynamic brake circuit, so plan the brake resistor early. See the servo drives category for other makes.

Installation and what to confirm before ordering

Mounting is base-mounted on all models; rack-mounted on R70A to 330A and duct-ventilated on 470A to 780A. Keep the surrounding air within -5 to 55 C and free from corrosive gas, water, oil, dust and iron dust. Derate above 55 C and above 1000 m. Before ordering confirm: motor series and model (SGM7J, SGM7A, SGM7G, SGM7P, direct drive or linear), supply voltage, interface and controller, feedback type, regenerative resistor, and whether a safety, feedback or application option module is needed.

Documents and quotation

The attached PDF is an unaltered excerpt of the official Yaskawa Sigma-7 Technical Supplement: product lineup, contents and the single-axis SERVOPACK ratings, model designations and specifications. Send the motor nameplate and controller details and we will return the matching SERVOPACK code.
