Allen-Bradley 1769-IQ16 Input Module
Description
Sixteen field inputs for a Compact I/O installation

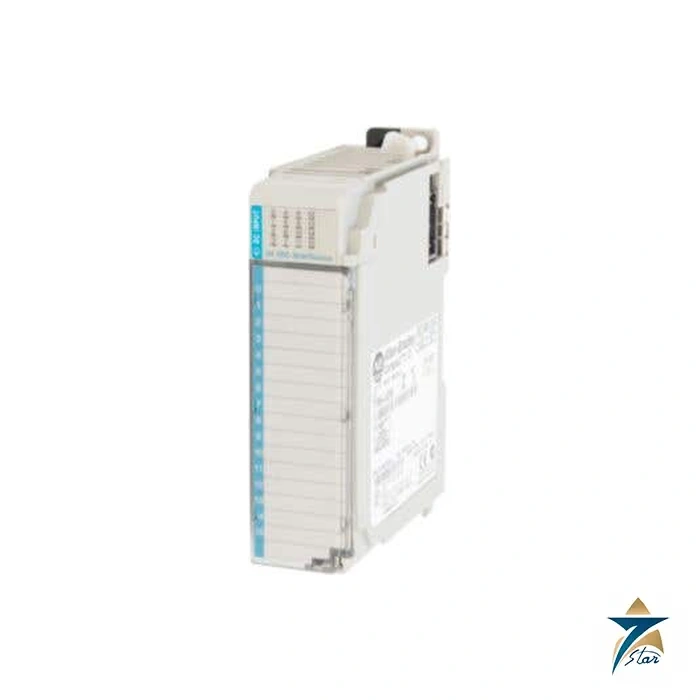

The Allen-Bradley 1769-IQ16 is a 16-point DC input module in the 1769 Compact I/O range. Its inputs are arranged in two groups of eight. The module receives field signals from the connected devices; it should be distinguished from a DC output module or a high-speed-counter module with a similar housing.
Input voltage limits depend on ambient temperature. The manufacturer lists 10–30 V DC at 30 °C and 10–26.4 V DC at 60 °C. This distinction matters when checking the field supply and cabinet temperature for a replacement.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / family | Allen-Bradley / 1769 Compact I/O |
| Catalog number | 1769-IQ16 |
| Function | DC digital input module |
| Input points / grouping | 16 / two groups of eight |
| Operating input voltage at 30 °C | 10–30 V DC |
| Operating input voltage at 60 °C | 10–26.4 V DC |
Check the controller and I/O bank
The Compact I/O specification describes applications with 1769 CompactLogix, MicroLogix 1500 expansion and assemblies using the appropriate DeviceNet or Ethernet adapter. The installed controller or adapter, I/O arrangement and power-bank design determine the actual installation.
Record the module position, connected field devices, terminal-block wiring and cabinet temperature before selecting a replacement. The complete IQ16 reference matters: an IQ16F or a higher-point-count input execution has a different specification.
Documents and quotation enquiries
The manufacturer Compact I/O technical data includes the exact IQ16 table and associated wiring diagram. Send the 1769-IQ16 reference, quantity, controller or adapter code, field supply and photographs of the installed module and terminals.
