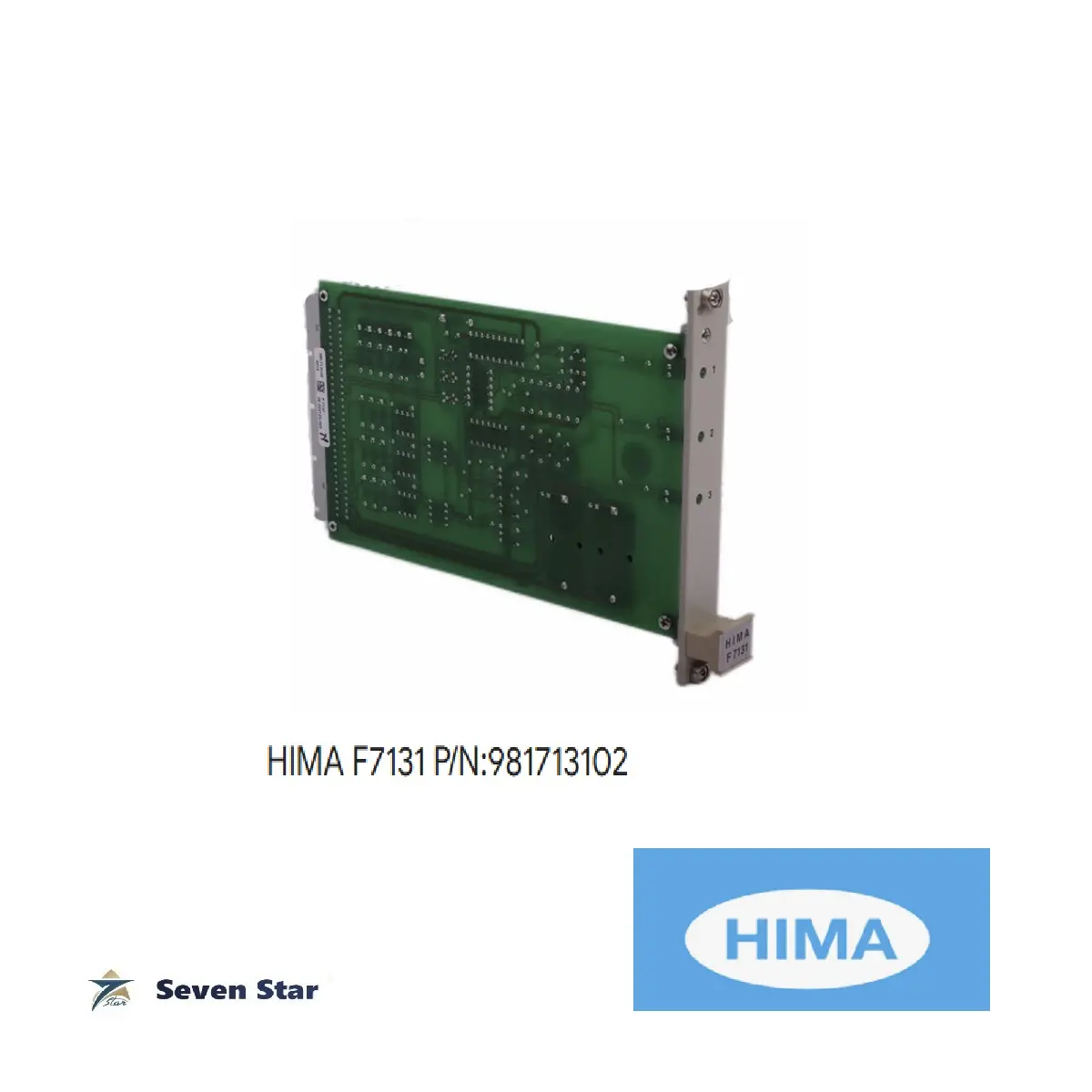

HIMA F7131 Power Supply Monitoring Module for H51q

Overview

The HIMA F7131 power supply monitoring module with buffer batteries is designed for the PES H51q and carries order number 98 1713102. It monitors the 5 V system voltage generated by up to three power supplies and reports the condition of the supply to the central modules F 8650/F 8651. This HIMA F7131 power supply monitoring module is supplied as a genuine tested spare part.

In a H51q safety controller the 5 V bus voltage is the lifeblood of every module. The HIMA F7131 power supply monitoring module watches that voltage continuously, buffers it with internal batteries during short interruptions and makes the supply status visible on three front LEDs, so a failing power supply is detected before it can disturb the safety function.

Engineering & Design

The HIMA F7131 power supply monitoring module monitors the 5 V system voltage from up to three power supplies and provides three LEDs on the front for the supply status. Three test bits are made available to the central modules F 8650 / F 8651 for display and for evaluation in the user program. With the assembly kit B 9361 the module also monitors the function of the power supply modules via three 24 V outputs (PS1 to PS3).

During normal operation the F 7131 continuously compares the monitored 5 V level against the safe window defined for the subrack. If a power supply fails or drifts, the module flags the affected path so that the central module can take the supply status into account in the user program. The buffer batteries bridge short supply dips, which keeps the volatile data of the system alive and prevents spurious shutdowns during brief interruptions. When the assembly kit B 9361 is fitted, the three 24 V outputs PS1 to PS3 extend the monitoring to the function of the power supply modules themselves, giving maintenance teams an early and clear signal before a supply problem escalates into a process trip. Routine verification of the module is part of the standard H51q proof test procedure.

The module carries a CR-1/2 AA-CB buffer battery, HIMA part no. 44 0000016, with a recommended replacement interval of four years. It occupies 4 TE of space and draws only 25 mA from the 5 V rail and 20 mA from the 24 V rail.

Key Features

• HIMA F7131 power supply monitoring module with buffer batteries for PES H51q
• Monitors the 5 V system voltage of up to 3 power supplies
• 3 x front LEDs and 3 test bits for central modules F 8650/F 8651
• Extension via assembly kit B 9361 (3 x 24 V outputs PS1-PS3)
• CR-1/2 AA-CB buffer battery, replacement recommended every 4 years
• 4 TE space requirement; low power draw

Applications

• 5 V supply supervision in PES H51q subracks
• Early detection of failing power supply modules
• Buffered operation across short supply interruptions
• Spare stock for H51q-based ESD and burner management systems

Specifications

Compatibility

The HIMA F7131 power supply monitoring module is designed for the PES H51q family and reports to the central modules F 8650 and F 8651. The optional assembly kit B 9361 extends the module with three 24 V monitoring outputs.

Ordering Information

Order the HIMA F7131 by its original order number 98 1713102. Spare buffer battery CR-1/2 AA-CB is HIMA part no. 44 0000016; a replacement interval of four years is recommended.

Why Seven Star LLC

Seven Star LLC supports HIMA H51q systems across Oman and the GCC with spare parts supplied on request. The F7131 is supplied as a tested spare part.

Our engineers help you verify the exact model and revision before ordering, avoiding costly mismatches.

Request a Quote for HIMA F7131 Power Supply Monitoring Module for H51q

For the HIMA F7131 power supply monitoring or any related control and instrumentation requirement, contact the Seven Star LLC team. Submit a formal inquiry through our RFQ page with your measurement range, connection and configuration, and our specialists will respond with a detailed commercial proposal and the official HIMA documentation.

Identifying a Genuine F 7131 Spare

HIMA H51q modules are identified by the type name on the front plate and the order number on the module label. Before you order, confirm:

• the front plate reads F 7131 and the label carries order number 98 1713102;
• the hardware revision printed on the label, so the spare matches the revision recorded in your system documentation;
• whether your subrack uses the assembly kit B 9361 for 24 V monitoring of the power supply modules, because this affects wiring, not the module itself;
• the condition and date of the buffer battery, so you know if a new CR-1/2 AA-CB battery (44 0000016) should be ordered with the module.

Replacing the Module

The F 7131 supervises the 5 V supply for the whole subrack, so plan its replacement carefully:

1. Check the H51q manual and your site procedure to see if the module can be changed with the system running or only during a shutdown in your configuration.
2. Note the current LED states and the test bit status in the user program before you start.
3. Handle the module with ESD protection and fit it in the same slot, without forcing the connector.
4. After insertion, confirm that the three LEDs show normal supply status and that the test bits read healthy on the central module F 8650/F 8651.
5. Record the replacement and the battery date in the maintenance log.

Troubleshooting the Supply Alarms

• One LED off or a test bit in alarm – measure the 5 V output of the matching power supply before replacing the F 7131; in most cases the power supply is the root cause.
• Alarm from the 24 V outputs PS1–PS3 – check the B 9361 wiring and the power supply module it monitors.
• Loss of data after a short power dip – check the buffer battery; an old battery cannot bridge the interruption.
• Intermittent alarms – look for loose backplane connections and high cabinet temperature.

H51q Systems in Oman and the GCC

H51q controllers still protect many compressors, furnaces, wellhead and plant ESD systems in Oman and the wider GCC. High ambient temperatures and older cabinet cooling put extra stress on power supplies and batteries, so a planned battery change every four years and a spare F 7131 on the shelf are sound practice.

Sourcing from Seven Star LLC

Send us the order number, the revision from the label and the quantity. We confirm the condition and test status of the module and give you the lead time for delivery to your site.
