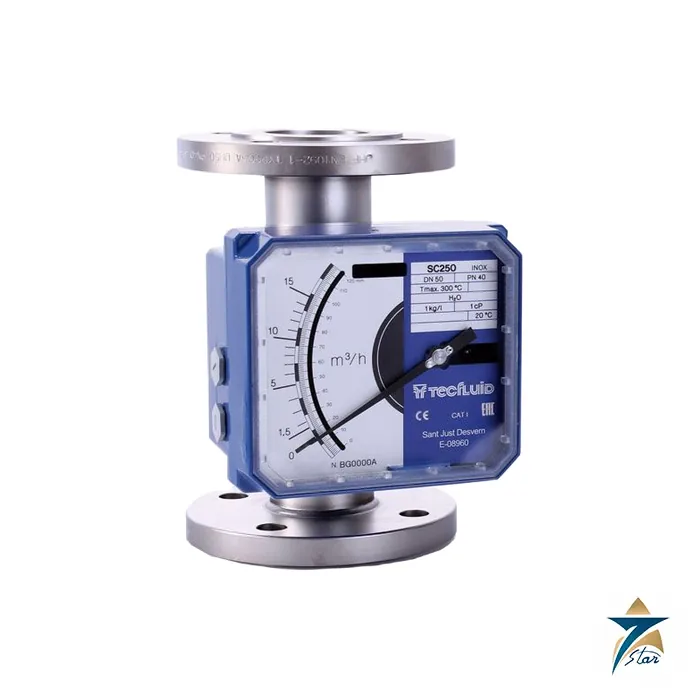

Tecfluid SC250 Metal Tube Variable Area Flowmeter
Description
Overview
The Tecfluid SC250 is a robust, all-metal variable area flowmeter for liquids, gases and steam. Unlike glass-tube rotameters, it is built for demanding pressure and temperature conditions and offers good corrosion resistance, while still giving a direct local reading through magnetic transmission. The Tecfluid SC250 range spans DN15 to DN150 and includes versions for upward, downward and horizontal flow and for high-viscosity liquids, with a float damping mechanism that keeps readings stable on gas and steam.
Seven Star LLC supplies the Tecfluid SC250 to oil and gas operators, power and water plants, chemical producers and skid builders in Oman and the GCC. As a trusted supplier with engineering support in Muscat, we translate process data into a complete order code covering float, scale, materials, flanges and electronics, so the meter arrives calibrated for the actual fluid.
Working Principle
In the SC250 the metering system is a calibrated orifice with a conical float. Flow pushes the float upward until the fluid force balances the float weight; each float position corresponds to a specific annular area between float and orifice and therefore to a specific flow rate. A magnet in the float assembly drives the pointer of the external indicator, so the reading is taken through the metal wall with no seals between process and indicator.
The SC250H and SC250V include a spring, so the float compresses the spring until equilibrium is reached, which allows horizontal and downward installation. The SM250, intended for viscosities above about 10 mPa·s, uses a conical tube with a special T or V float and no calibrated orifice. For gas and steam, a ceramic, PEEK or metallic piston damping system from DN15 to DN80 prevents float bounce even at low pressures and gas densities.
Engineering Design of the Tecfluid SC250
Standard wetted parts are EN 1.4404 (AISI 316L), with PTFE-lined, PVC and PP versions and titanium or Hastelloy C on request. In 316L the Tecfluid SC250 handles fluid temperatures from −50°C to +300°C depending on model, and a thermal separator extends this for hot or cryogenic service. Pressure ratings are PN40 for DN15 to DN50 and PN16 for DN65 to DN150 in stainless steel. Connections include EN 1092-1 or ASME B16.5 flanges, BSP or NPT threads, and sanitary ISO 2852, SMS 1145, DIN 11851 and TRI-CLAMP couplings.
The indicator housing is IP65 coated aluminium with a polycarbonate window as standard, IP67 316L with glass window for marine and sanitary duty, or PP. An Ex d explosion-proof aluminium housing is ATEX and IECEx certified to Ex d IIC T6…T4 Gb with IP66/IP67. Electrical options are AMM micro-switches, AMD inductive detectors, TH7 and TH7H 2-wire 4–20 mA transmitters with HART, TH7T totaliser transmitters, and the MT03A converter with optional MODBUS RTU RS485.
Key Features
The Tecfluid SC250 gives plant engineers these benefits:
- All-metal construction removes glass breakage risk on pressurised and hot lines.
- Flow ranges run from 2.5 l/h to 180 m3/h of water and 75 Nl/h to 5400 Nm3/h of air.
- Accuracy is 2.5% to VDI/VDE 3513 sheet 2, with 1.6% available on request.
- Upward, downward and horizontal models remove the need to re-route piping.
- Float damping keeps gas and steam readings stable at low working pressures.
- Local magnetic indication works without power, with a 10:1 scale range.
- Limit switches and HART transmitters are available with ATEX and IECEx Ex ia or Ex d certification.
- A heating or cooling jacket is available to keep the process fluid at temperature.
Industrial Applications
Tecfluid names water treatment, pulp and paper, food, pharmaceutical, chemical and petrochemical industries, power and nuclear plants, heating and cooling circuits, saturated steam, oven treatment and gas burner control as typical uses. In the Gulf, the Tecfluid SC250 is a good fit for chemical injection and purge gas on wellhead and process skids, instrument air, nitrogen blanketing, seal flush lines on pumps, boiler feed and condensate return, and fuel gas to heaters.
In Oman, users include oil and gas facilities in the interior concessions, refineries and petrochemical plants in Sohar, power and desalination plants along the Batinah coast, and food plants in Salalah. Seven Star LLC supports them with genuine Tecfluid SC250 meters and related instruments such as the glass-tube Tecfluid Series 2000 variable area flowmeter, the KROHNE H250 M40 variable area flowmeter for projects with that make on the vendor list, and the Tecfluid LT-R153 magnetic level transmitter.
Technical Specifications
The Tecfluid SC250 data below come from the manufacturer technical catalogue:
| Parameter | Specification |
|---|---|
| Model | Tecfluid SC250, SC250V, SC250H, SM250 |
| Principle | Variable area, magnetic transmission to local indicator |
| Flow range | Water 2.5 l/h to 180 m3/h; air 75 Nl/h to 5400 Nm3/h |
| Accuracy (VDI/VDE 3513-2) | 2.5% (SC250 / H / V), 1.6% on request; SM250 1.6% |
| Scale range | 10:1 |
| Sizes | SC250 DN15–DN150; SC250H/V and SM250 DN15–DN80 |
| Connections | EN 1092-1 / ASME B16.5 flanges; BSP or NPT; ISO 2852, SMS 1145, DIN 11851, TRI-CLAMP |
| Working pressure (316L) | PN40 DN15–DN50; PN16 DN65–DN150 |
| Fluid temperature | 316L −50°C to +300°C; PTFE −20°C to +150°C; PVC 0 to +50°C; PP 0 to +90°C |
| Materials | EN 1.4404 (316L), PTFE, PVC, PP; titanium and Hastelloy C on request |
| Housing | IP65 aluminium; IP67 316L; Ex d ATEX / IECEx option |
| Electronics | AMM / AMD limit switches; TH7, TH7H (HART), TH7T, TH7TH; MT03A (MODBUS RTU option) |
How to Order
To order the Tecfluid SC250, send Seven Star LLC an RFQ with fluid, density, viscosity, flow range, pressure, temperature, line size, flange standard, flow direction and any switch, transmitter or hazardous-area requirement. Our instrumentation division in Muscat prepares the order code, confirms lead time and availability, and includes the manufacturer technical catalogue for download. Seven Star LLC supplies genuine Tecfluid SC250 metal tube flowmeters with engineering support across Oman and the GCC.
Datasheets & Documents
- Datasheet Tecfluid Series SC250 Metal Tube Variable Area Flowmeter Technical Catalogue (manufacturer, rev. 5) Download
Reviews (0)
About brand
Tecfluid designs and manufactures flow and level instruments in Spain, where the company has been based since 1974. Its catalog runs from simple variable area flowmeters to electromagnetic flowmeters and bypass level indicators. Seven Star LLC supplies Tecfluid flow meters and level instruments to plants in Oman, and three of them are listed here: the FLOMID electromagnetic flowmeter, the Series 2000 variable area flowmeter and the LT magnetic level transmitter.
Tecfluid series on this page and beyond
FLOMID is the full-bore electromagnetic flowmeter for conductive liquids, listed here from DN3 to DN500. Series 2000 is a small variable area flowmeter for low flow rates of liquids and gases, with one or two optional limit switches. The LT series are bypass chamber level indicators, and the LT-R153 listed here combines level transmission with a switch. Other series include SC250 metal tube and 6000 glass tube flowmeters, FLOMAT and COVOL flow meters, and LU ultrasonic, LTDR guided radar and LD vibrating fork level instruments.
Ordering Tecfluid instruments: what we need
Send the full model code and serial number from the label. For a new FLOMID, state the size, liner and electrode materials, process connection, converter type and supply voltage. For a Series 2000, state the fluid, density, viscosity, pressure, temperature and the scale range. For an LT gauge, give the center-to-center distance, liquid density, connections and any Ex requirement. We supply to the GCC and provide Tecfluid documentation on request.
Browse Tecfluid products by category: Level Transmitter, Flowmeters.
Related products
Frequently Asked Questions
Why choose a metal tube flowmeter like the Tecfluid SC250?
A metal tube removes the breakage risk of glass and lets the Tecfluid SC250 run at higher pressure and temperature, up to PN40 for DN15 to DN50 and up to 300 degrees C in 316L depending on configuration. The magnetic indicator still gives a local reading without any power supply.
Which models are in the SC250 series?
The SC250 is for upward flow, the SC250V for downward flow or higher capacity upward flow, the SC250H for horizontal flow, and the SM250 for viscous liquids above 10 mPa s using a conical tube and special T or V float. All except the SM250 suit liquids and gases with viscosity below 10 mPa s.
What flow ranges and accuracy can be achieved?
The series covers water from 2.5 l/h to 180 m3/h and air from 75 Nl/h to 5400 Nm3/h. Accuracy to VDI/VDE 3513 sheet 2 is 2.5% for SC250, SC250H and SC250V with 1.6% on request, and 1.6% for the SM250, with a 10:1 scale range.
Can the SC250 send a signal to the control system?
Yes. Options include one or two micro-switches or inductive limit switches, TH7 and TH7H 2-wire 4-20 mA transmitters with HART, TH7T totaliser versions and the MT03A converter with optional MODBUS RTU. Switches and transmitters are available with ATEX and IECEx Ex ia or Ex d certification.
How does Seven Star LLC support SC250 orders in Oman?
Seven Star LLC supplies genuine Tecfluid SC250 flowmeters with engineering support in Muscat. We define the float number, material, flange standard and electronics from your process data for oil and gas, power and water sites in Oman and the GCC.
