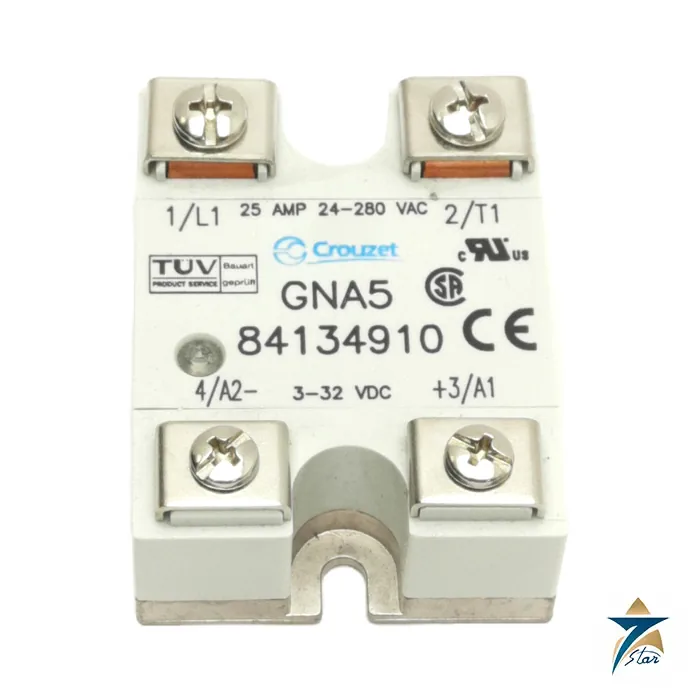

Siemens Maxum II Solid State Relay Kit 2020152-001

Overview: Reliable Power Switching for Oven Heater Zones

The Siemens Maxum II Solid State Relay Kit, part number 2020152-001, provides the solid state relay hardware used within the Power Entry and Control Module (PECM) to switch AC power to the analyzer’s oven heater circuits. Unlike electromechanical relays, solid state relays switch power electronically with no moving contacts, giving the PECM’s heater control loop the fast, silent, high-cycle-life switching needed to maintain tight oven temperature stability over the analyzer’s continuous operating life.

As an independent specialized supplier of Siemens Maxum Edition II analyzer spare parts, Seven Star LLC sources and supplies the solid state relay kit 2020152-001 to refineries, gas plants, and petrochemical complexes across Oman and the wider GCC. Because heater relay failure directly threatens oven temperature stability and therefore chromatographic accuracy, Seven Star LLC helps maintenance teams keep genuine relay kits in stock for planned PECM servicing.

Working Principle: Solid State Power Switching

A solid state relay uses a semiconductor switching device – typically a triac or a pair of back-to-back thyristors – to control AC power flow to a load, with an optically isolated control input that switches the semiconductor on or off in response to a low-voltage command signal from the PECM’s temperature control circuit. Because switching occurs electronically rather than through mechanical contact closure, solid state relays avoid the contact bounce, arcing, and mechanical wear that limit the cycle life of electromechanical relays, and many designs incorporate zero-cross switching to further reduce electrical noise and inrush stress on the heater element.

Within the Maxum II’s oven temperature control loop, the PECM compares RTD temperature feedback against the setpoint and drives the solid state relay to apply or remove heater power in rapid, precisely timed cycles, effectively modulating average heater power to hold the oven at its programmed temperature. The relay’s fast, repeatable switching response is what allows the control loop to maintain the tight temperature stability that chromatographic retention time repeatability depends on.

Engineering Design of the Relay Kit

The 2020152-001 kit is packaged as the relay hardware and associated mounting components needed to service the PECM’s heater switching function, sized to the PECM’s oven heater load requirements on the Maxum and Maxum Edition II platforms. Because the relay handles line-voltage AC power to the oven heater, it is engineered with the isolation and heat-dissipation characteristics appropriate to sustained industrial duty inside the PECM enclosure.

Replacement follows standard PECM electronics servicing procedure, with the analyzer safely de-energized before accessing the relay mounting location, and correct relay orientation and connection verified against the PECM wiring documentation before power is restored.

Key Features

The Solid State Relay Kit 2020152-001 restores dependable oven heater switching within the PECM. Key characteristics include:

• Semiconductor-based switching with no moving contacts, avoiding electromechanical relay wear.
• Optically isolated control input for clean interfacing with the PECM’s temperature control circuit.
• Supports the fast, repeatable switching needed for tight oven temperature stability.
• Sized for oven heater load switching on the Maxum and Maxum Edition II PECM platform.
• Genuine Siemens part number for correct fit and control-loop compatibility.

Industrial Applications

The solid state relay kit is a routine PECM maintenance item on any Maxum or Maxum Edition II analyzer, since oven heater switching underpins every application the GC performs, from refinery hydrocarbon monitoring to natural gas quality analysis and petrochemical process streams. It is typically replaced when heater control faults or temperature instability point to a failing relay, or proactively during scheduled PECM overhaul.

Seven Star LLC supports refinery instrumentation teams, gas processing operators, and petrochemical maintenance departments across Oman, Muscat, Sohar, and the broader GCC region with sourcing of Maxum Edition II PECM hardware, helping analyzer houses maintain stable, accurate oven temperature control.

Technical Specifications

The table below summarizes the core specifications of the Siemens Maxum II Solid State Relay Kit as supplied by Seven Star LLC.

Why Choose Seven Star LLC for Maxum II PECM Relay Sourcing

A solid state relay that looks electrically equivalent on a datasheet can still behave differently under the PECM’s specific zero-cross switching and optical isolation requirements – a mismatch here shows up as subtle oven temperature instability rather than outright relay failure, which is exactly the kind of fault that erodes chromatographic retention time repeatability before anyone traces it back to the relay. Seven Star LLC verifies the exact relay specification against the customer’s PECM hardware revision before the kit ships, rather than assuming a generic solid state relay of the same rated current will integrate cleanly into the existing heater control loop. We also help refinery and gas plant maintenance departments across Oman plan PECM spares proactively, since oven heater switching underpins every method the analyzer runs, and we coordinate delivery around scheduled PECM overhaul windows across Muscat, Sohar, and the broader GCC.

Request a Quote for Siemens Maxum II Solid State Relay Kit 2020152-001

Seven Star LLC is a dedicated supplier of Siemens Maxum Edition II process gas chromatograph spare parts and PECM hardware throughout Oman and the GCC. To request a formal B2B quotation, verify current availability and lead time, or confirm compatibility of the Solid State Relay Kit 2020152-001 with your specific PECM configuration, contact our instrumentation sourcing team today.
