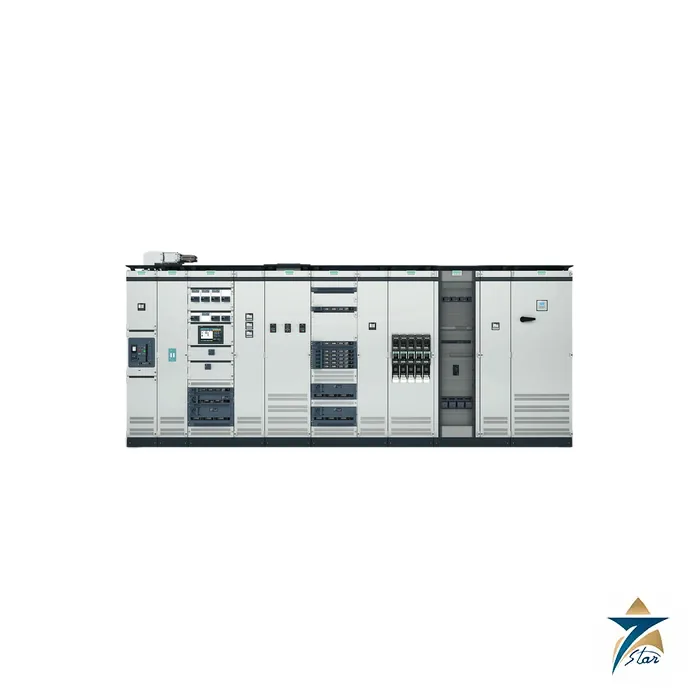

Siemens SIVACON S8 Low-Voltage Switchboard
Overview
The Siemens SIVACON S8 is a type-tested, low-voltage power distribution switchboard built on a modular, metal-enclosed platform that scales from a single incoming feeder cubicle to a full switchroom handling several thousand amperes. Designed and factory-tested to IEC 61439-2, the SIVACON S8 (the Siemens SIVACON S8) combines withdrawable circuit breaker units, fixed-mounted feeders, and motor control sections within a common, standardized enclosure system, giving electrical designers a single switchboard platform for main distribution, sub-distribution, and motor management duties on the same site.
With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the SIVACON S8 low-voltage switchboard to power utilities, oil and gas facilities, data centers, and industrial plants across the Sultanate of Oman and the wider GCC. Every switchboard is engineered and factory-built to order against the project’s single-line diagram, with Seven Star LLC managing technical coordination, delivery, and commissioning support from our regional base.
Operating Principle
The Siemens SIVACON S8 functions as the physical and electrical backbone of a facility’s low-voltage power distribution, receiving incoming power from transformers or generators on a horizontal or vertical main busbar system and distributing it through individually protected outgoing circuits to downstream switchgear, motor control centers, and final distribution boards. Internal separation between functional units, from Form 1 up to Form 4b per IEC 61439-2, physically isolates busbars, functional units, and outgoing terminals from one another, so that maintenance work or a fault on one outgoing circuit cannot propagate to adjacent units or expose personnel to live busbar sections.
Where fitted, the SIVACON S8’s active, resettable arc fault protection system uses optical sensors and current transformers to detect the light signature and current signature of an internal arc fault within milliseconds and trip the affected section before the fault can escalate into a destructive event, a critical safeguard given the very high fault currents a busbar system of this rating can deliver. The practical result is a switchboard that keeps unaffected sections of the installation energized during a localized fault, minimizing plant downtime while protecting personnel and equipment.
Engineering Design of the Siemens SIVACON S8
Mechanically, the Siemens SIVACON S8 is built from standardized sheet-steel cubicles bolted into a common frame, with horizontal busbars typically run along the top, rear-top, or rear-bottom of the switchboard depending on cable entry and cooling requirements. Functional units are available as fixed-mounted, plug-in, or fully withdrawable designs, letting a breaker or contactor unit be isolated and removed for maintenance without de-energizing the rest of the switchboard. Degree of protection ranges from IP30 up to IP54 for non-ventilated or forced-ventilated enclosures, allowing the same platform to be specified for a clean indoor switchroom or a more exposed industrial environment.
The switchboard supports incoming and outgoing circuit breakers, contactors, and motor starters from Siemens’ SENTRON and SIRIUS ranges, along with digital measuring and monitoring devices integrated into the front door for local operator readout. Rated operating voltage reaches up to 690 V AC in standard configurations, with short-time withstand current ratings up to 150 kA for one second and peak withstand current up to 330 kA, giving system designers headroom to specify the SIVACON S8 on installations fed directly from large transformers or generator sets without a separate current-limiting stage.
Key Features
The Siemens SIVACON S8 is engineered as a flexible, safety-focused platform for demanding low-voltage distribution duty. Key features include:
- Type-tested design and verification to IEC 61439-2, confirmed by routine and design verification testing rather than derived calculation alone.
- Rated current up to 7,010 A on the main busbar system for large industrial and utility installations.
- Internal separation from Form 1 through Form 4b, isolating busbars, functional units, and cable terminals as project safety requirements demand.
- Optional active, resettable arc fault protection with optical sensors and current transformers per IEC/TR 61641 and IEC TS 63107.
- Fixed, plug-in, and fully withdrawable functional unit options for flexible maintenance access.
- Degree of protection from IP30 up to IP54 to suit both clean switchrooms and harsher industrial environments.
- Integration with Siemens SENTRON circuit breakers and SIRIUS motor control components within the same enclosure system.
- Modular, metal-enclosed construction that allows the switchboard to be extended as a facility’s electrical load grows.
Industrial Applications
The Siemens SIVACON S8 is specified as the main low-voltage distribution board on power generation plants, oil and gas processing facilities, water and desalination plants, and heavy industrial sites across Oman, where its high busbar ratings and Form 4b separation options meet the safety requirements of critical infrastructure operators. In data center and telecom facilities in Muscat and across the Sohar and Salalah economic zones, the SIVACON S8’s motor control and power distribution sections are commonly combined in a single switchroom to feed chillers, UPS systems, and IT load distribution from one coordinated switchboard lineup.
With engineering support in Muscat, Seven Star LLC supplies the SIVACON S8 to EPC contractors, panel builders, and end users throughout the GCC who need a factory-tested, internationally certified low-voltage switchboard with Siemens components and documentation. The platform’s broad current and voltage range also makes it a common choice for marine and offshore power distribution projects supplied through Seven Star LLC’s regional logistics network.
Technical Specifications
Key technical parameters of the Siemens SIVACON S8 low-voltage switchboard, the Siemens SIVACON S8, are summarized below.
| Parameter | Specification |
|---|---|
| Model | Siemens SIVACON S8 |
| Rated operating voltage (AC) | Up to 690 V (up to 800 V for circuit-breaker design) |
| Rated current (main busbar) | Up to 7,010 A |
| Short-time withstand current | Up to 150 kA, 1 s |
| Peak withstand current | Up to 330 kA |
| Internal separation | Form 1 to Form 4b (IEC 61439-2) |
| Degree of protection | IP30 to IP54 |
| Design standards | IEC 61439-2, IEC/TR 61641, IEC TS 63107 |
| Arc fault protection | Optional active, resettable protection with optical sensors and CTs |
| Busbar position | Top, rear-top, or rear-bottom |
| Functional unit types | Fixed, plug-in, and withdrawable |
Request a Quote for Siemens SIVACON S8
Electrical consultants and plant owners in Oman and the GCC can request a formal quotation and engineering proposal for the Siemens SIVACON S8 low-voltage switchboard directly from Seven Star LLC. Our instrumentation and electrical division can review your single-line diagram, coordinate factory build and testing of the Siemens SIVACON S8, and provide the full technical planning documentation needed for your project approval. Backed by genuine manufacturer documentation, Seven Star LLC delivers genuine, factory-tested SIVACON S8 switchboards with local commissioning support and regional warehouse logistics.
