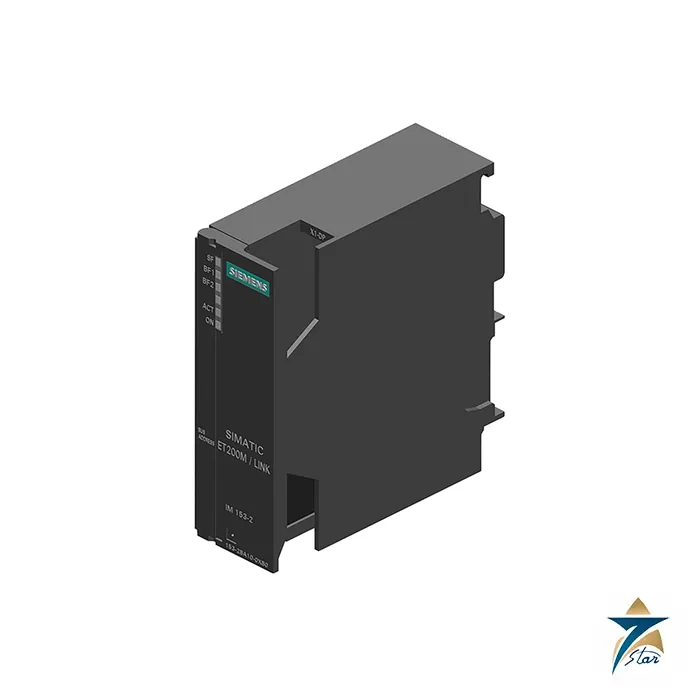

Siemens Simatic ET 200M IM 153-2 High Feature Interface Module

Overview

The Siemens IM 153-2 High Feature interface module for the ET 200M station (order number 6ES7153-2BA10-0XB0) is the interface module that turns Siemens’ ET 200M distributed I/O station into a fully modular remote rack, allowing up to eight standard S7-300 signal, function, and communication modules to be mounted in a single station and linked back to a PROFIBUS DP master at speeds up to 12 Mbit/s. Where compact distributed I/O stations offer a fixed set of channels, the ET 200M with IM 153-2 lets plant engineers mix and match S7-300 modules freely, making it the standard choice wherever a remote I/O rack needs the same flexibility as a local S7-300 CPU rack.

In Oman and the GCC, Seven Star LLC supplies the Siemens IM 153-2 interface module across Oman and the wider GCC, with manufacturer documentation and locally available technical support for both new distributed I/O architectures and the maintenance of installed PROFIBUS-based plants.

Operating Principle

The Siemens Simatic ET 200M IM 153-2 acts as a PROFIBUS DP slave, receiving cyclic process data requests from the DP master (typically an S7-300 or S7-400 CPU, or a PLC from another vendor with a PROFIBUS DP master interface) and translating them into backplane read/write cycles across every signal module plugged into the ET 200M station. Each mounted module – digital input/output, analog input/output, or specialty function card – is addressed individually, and the IM 153-2 aggregates their I/O data into the cyclic PROFIBUS telegram exchanged with the master on every bus cycle, keeping remote I/O scan time deterministic and tightly synchronized with the controlling CPU’s program scan.

The Siemens IM 153-2 High Feature variant additionally supports interrupt-driven diagnostics, meaning a module fault, wire break, or short circuit is reported back to the controlling CPU as an interrupt rather than only through a slower cyclic diagnostic poll, allowing faster fault reaction in safety- and quality-critical processes. On redundancy-capable orders, the IM 153-2 HF can also be configured in pairs for switched-media redundant PROFIBUS operation, so a single cable break does not take the entire remote I/O station offline.

Engineering Design of the Siemens IM 153-2

The Siemens Simatic ET 200M IM 153-2 mounts at the head of a standard ET 200M rack, sharing the same S7-300-style backplane bus connectors used by every module in the station, so an existing ET 200M installation can be extended simply by adding modules and, if the bus segment allows, additional stations without redesigning the station architecture. The module provides a PROFIBUS DP connector (typically a 12 Mbit/s-rated bus connector with programming port pass-through) and status LEDs for bus fault (BF), module fault (BF1/BF2 on redundant variants), and active-station (ON) indication directly on the housing front.

Because the IM 153-2 accepts the full standard range of S7-300 signal modules – digital I/O, analog I/O, counter, positioning, and communication processor cards – a single ET 200M station built around the Siemens IM 153-2 can be configured identically to a local S7-300 CPU rack in terms of available I/O types, which is what makes it the standard remote I/O platform for plants that already standardize on S7-300 hardware for local control.

Key Features

The Siemens IM 153-2 ET 200M interface module brings full S7-300 module flexibility to a PROFIBUS-connected remote I/O rack:

• Supports up to eight standard S7-300 signal, function, and communication modules per ET 200M station.
• PROFIBUS DP communication at up to 12 Mbit/s for fast, deterministic remote I/O scan cycles.
• High Feature (HF) interrupt-driven diagnostics report module faults to the CPU faster than standard cyclic polling.
• Optional switched-media redundant PROFIBUS configuration protects against single-cable-break outages on critical stations.
• Front-panel status LEDs (bus fault, module fault, active-station) simplify on-site troubleshooting without a programming device.
• Shares backplane and module compatibility with standard S7-300 CPU racks, easing spares standardization across local and remote I/O.
• Supports hot module replacement in many configurations, reducing downtime during maintenance on individual signal modules.
• Compatible with both legacy S7-300/400 PROFIBUS masters and third-party PLCs equipped with a PROFIBUS DP master interface.

Industrial Applications

The Siemens Simatic ET 200M IM 153-2 remains widely deployed across Oman’s process and manufacturing base wherever a PROFIBUS-based control architecture is already installed, including desalination and RO water treatment plants, cement production lines, and oil and gas field instrumentation racks where remote I/O stations must be mounted close to the process while communicating back to a central S7-300/400 control room over PROFIBUS DP. The Siemens IM 153-2’s module-level flexibility also makes it the standard retrofit choice when extending or modifying an existing PROFIBUS-based remote I/O station without replacing the whole distributed I/O architecture.

In Oman and the GCC, Seven Star LLC supplies the Siemens IM 153-2 to systems integrators, panel builders, and plant instrumentation teams across the Sohar and Salalah economic zones and the wider GCC, supporting both the expansion of existing PROFIBUS-based plants and long-term spare-parts continuity for installed ET 200M stations.

Technical Specifications

Key specifications for the Siemens IM 153-2 High Feature interface module are summarized in the table below:

Request a Quote for Siemens IM 153-2

Seven Star LLC invites systems integrators, panel builders, and plant instrumentation engineers across Oman and the GCC to submit a formal RFQ for the Siemens IM 153-2 ET 200M High Feature interface module. In Oman and the GCC, Seven Star LLC supplies the module on request with lead time confirmed at quotation, provides the full ET 200M IM 153-2 technical datasheet on request, and connects customers directly with the instrumentation division for PROFIBUS architecture sizing and redundancy configuration support.
