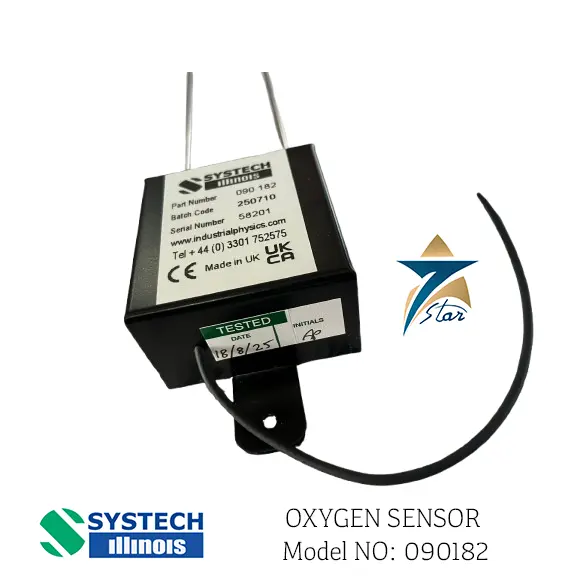

Systech Oxygen Sensor 090182 – Trace Stainless-Steel Cell for EC91 Transmitter

Overview

The Systech 090182 oxygen sensor is the OEM trace O₂ cell for the EC91 oxygen transmitter, designed to deliver stable, low-noise oxygen measurement in demanding industrial environments. Built in a stainless-steel, intrinsically safe (I.S.) construction, this replacement cell returns aging or drifting EC91 instruments to specification—improving baseline stability, response time, and calibration retention without replacing the full analyzer.

Technical Specifications

Key Features

• OEM spare for EC91 oxygen transmitters (Industrial Physics – Systech Instruments, UK)

• Trace oxygen capability for low-level O₂ monitoring (process & QA)

• Stainless-steel I.S. housing for robust, hazardous-area use (per instrument design)

• Fast replacement field procedure; restores signal quality and repeatability

• Supplied inspected & function-checked; ESD-safe packed

Technical Highlights

• Part / Order No.: 090182 (ASSY CELL TRACE S/STEEL I.S.)

• Instrument: Systech EC91 oxygen transmitter

• Origin: UK (Industrial Physics – Systech Instruments)

• Batch code: e.g., 90138 (batch varies by lot)

• Connections: drop-in to EC91 sensor interface (match wiring/port as per EC91 manual)

• Maintenance: standard zero/span after install; periodic checks as per site SOP

Applications

• Inerting & purge control (N₂ blanketing)

• Glove boxes, furnaces/heat-treat, specialty gases

• Packaging lines, QA labs, and process safety interlocks

• Oil & gas, chemicals, pharma, metallurgy & electronics

Installation & Commissioning

1. Isolate power/process per site safety procedures.

2. Observe ESD precautions; remove the aging sensor.

3. Fit 090182 cell; verify sealing and connector integrity.

4. Power up; perform zero/span calibration per EC91 instructions.

5. Verify analog scaling / alarm setpoints / interlocks before returning to service.

Compatibility & Ordering

• For EC91 only—confirm model/serial and current sensor label before order.

• Provide application range and ambient conditions to validate sensor selection.

• We can supply additional EC91 spares (amplifier PCB 091-024, seals, accessories).

Request a Quote for Systech Oxygen Sensor 090182 – Trace Stainless-Steel Cell for EC91 Transmitter

Keep your EC91 running within spec. Share your model/serial, quantity, and operating range—we’ll confirm compatibility, lead time, and the best regional pricing. Request a quote now.

The EC91 Platform: Measurement Performance

The Systech EC91 intrinsically safe oxygen analyzer — the transmitter this 090182 cell is designed to serve — measures oxygen from as low as 1 ppm up to percent-level concentrations, using six selectable measuring ranges with a resolution of 0.05% of the selected scale. The analyzer reaches 90% of a step-change reading within 20 seconds, and its intrinsically safe design (ATEX Ex II 1G Ex ia IIC T4 Ga, suitable for Zone 0 hazardous areas) means all electronic circuits are inherently safe, eliminating the need for a hot-work permit during routine sensor replacement or calibration in a classified area.

Environmental Protection

The EC91 instrument meets IP66 and NEMA 4X ingress protection, guarding against water, dust, dirt, rain, ice, and corrosive atmospheres — relevant for cell replacements performed in outdoor or washdown-prone plant locations. Systech rates the sampling cell technology used in the EC91 family for a maintenance-free service life of approximately 5 years under normal operating conditions, after which baseline drift and slower response typically indicate the cell has reached end of life and should be replaced, which is exactly the role this 090182 trace stainless-steel I.S. cell serves.

Why Trace-Level Oxygen Monitoring Matters

Trace oxygen measurement — typically below 1000 ppm and often down to single-digit ppm — is used wherever residual oxygen must be controlled to prevent an explosive atmosphere, protect a catalyst, prevent product oxidation, or verify inert gas purity before workers enter a confined space. Because these applications often sit inside classified hazardous areas (a nitrogen blanketing skid on a tank farm, a hydrogen purge line, a glove box handling pyrophoric materials), the intrinsically safe design of both the EC91 transmitter and its 090182 trace cell is not an optional feature but a basic safety requirement for the installation.

As a sensing cell ages, its baseline signal drifts and its response time slows, which can cause an analyzer to under-read a rising oxygen ingress or over-read after a nitrogen purge — either of which undermines the process safety interlocks the measurement is meant to support. Replacing the cell on the manufacturer’s recommended schedule, rather than waiting for an out-of-calibration alarm, keeps the safety function reliable.

Industries Served

Seven Star LLC supports oil and gas, petrochemical, pharmaceutical, metallurgy, and specialty gas customers across Muscat, Sohar, and the wider GCC with genuine Systech EC91 spare cells and analyzers, helping maintenance teams keep inerting, purge, and glove-box oxygen monitoring loops within their calibrated specification without unplanned analyzer downtime.

Storage and Handling

Trace-level oxygen sensor cells should be stored per the manufacturer’s guidance until installation, since prolonged storage in an incorrect environment can itself introduce baseline drift before the cell is ever placed in service. Handle the 090182 cell with the same ESD precautions used for the EC91’s other electronic assemblies, and re-verify zero and span after installation before returning the interlock to automatic operation, logging the calibration result per your site’s process safety management procedure.

Confirming the Right Sensor

Because Systech has produced several sensor variants across the EC91’s production life, always match the batch code and part number on the failing sensor’s label against the replacement before installation, and consult the EC91 manual’s sensor interface diagram if wiring or connector details differ from an older unit.

Why Seven Star LLC

Seven Star LLC supplies genuine Systech 090182 replacement cells and related EC91/EC900 series spares to industrial gas, chemical, and process safety customers across Oman and the wider GCC, confirming your exact EC91 model, serial number, and current sensor label before dispatch to avoid a compatibility mismatch on this critical safety-instrumented measurement, and arranging delivery to your site anywhere in Oman or the wider GCC.

Related Products

• Siemens Maxum II Model 50 Ten-Port Valve 2017660-003
• SERVOMEX TOUGH FLUE GAS 2700 FLOW ALARM RELAY BOX, MODEL: 02720

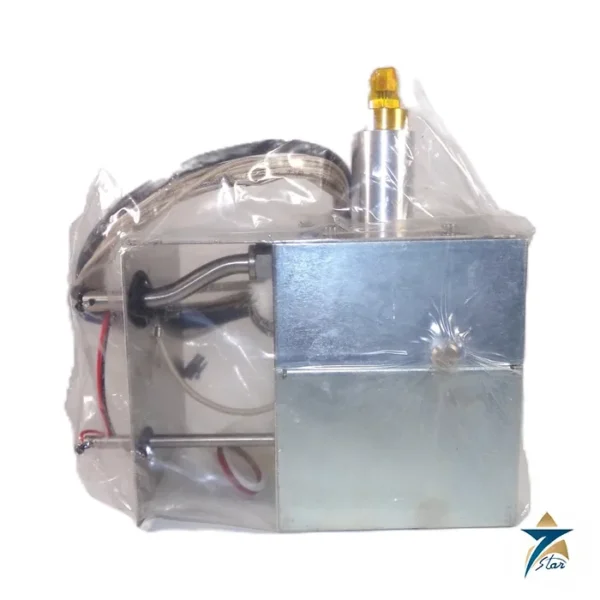

• Siemens Maxum II FPD II Assembly 115 VAC 2021905-001
