Siemens CPU 1515-2 PN SIMATIC S7-1500 Controller 6ES7515-2AN03-0AB0

Overview

The Siemens CPU 1515-2 PN, order number 6ES7515-2AN03-0AB0, is a standard central processing unit of the SIMATIC S7-1500 controller family. Siemens positions it for medium-to-large applications that need more memory and network capacity than the entry CPUs, with 1 MB of integrated work memory for program code and 4.5 MB for data. It brings two PROFINET interfaces, an integrated colour display for commissioning and diagnostics, and a bit processing time of 6 ns, which makes it a common choice for plant-unit control in process skids, packaging lines, utilities and infrastructure automation.

Seven Star LLC supplies the Siemens CPU 1515-2 PN to system integrators, EPC contractors and plant maintenance teams in the Sultanate of Oman and across the GCC. Our engineers in Muscat check the firmware level, memory card size and TIA Portal version on your project before we quote, so the controller you receive can be loaded with your existing program or engineered into a new panel without surprises on site.

How the Siemens CPU 1515-2 PN Works

Like every S7-1500 CPU, the Siemens CPU 1515-2 PN executes a user program organised into organisation blocks, function blocks, functions and data blocks, with up to 8,000 blocks in total. Program and data are loaded from a SIMATIC Memory Card, which is mandatory and supports up to 32 GB of load memory, and run in the integrated work memory. The data sheet lists typical processing times of 6 ns for bit operations, 7 ns for word operations, 9 ns for fixed-point and 37 ns for floating-point arithmetic. Cyclic interrupt OBs can run with a minimum cycle of 250 µs, and isochronous mode is supported both centrally and through the network.

The first interface (X1) is a PROFINET IRT port with an integrated two-port switch. It can act as IO controller for up to 256 IO devices, 64 of them with IRT, and supports MRP and MRPD media redundancy with a typical 200 ms switchover on line break for MRP and bumpless operation for MRPD. The second interface (X2) is a single-port PROFINET RT connection for up to 32 IO devices, which many users dedicate to a plant or IT network so that the field network stays separate. Across the CPU, up to 1,024 remote I/O devices can be connected through AS-i, PROFIBUS or PROFINET, and up to eight communication modules or processors can be added in the rack.

Engineering Design of the Siemens CPU 1515-2 PN

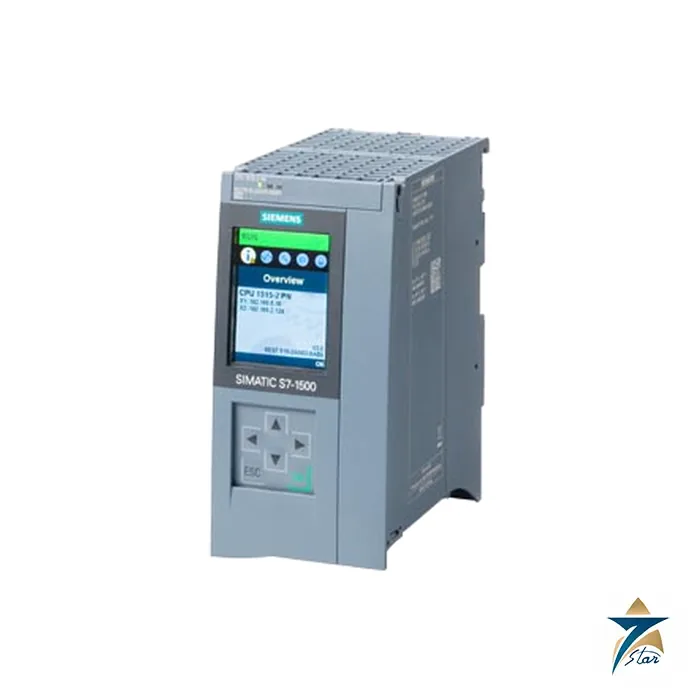

The Siemens CPU 1515-2 PN module is 70 mm wide, 147 mm high and 129 mm deep and weighs about 456 g. It runs from 24 V DC within a permissible range of 19.2 V to 28.8 V, with reverse polarity protection, a rated current of 0.65 A and a typical power loss of 3.6 W. The CPU feeds 12 W into the backplane bus, and a rack supports the CPU plus up to 31 modules on a single line. On the front, a 6.1 cm display of the Siemens CPU 1515-2 PN with control keys lets the technician read diagnostics, set IP addresses and view module status without a laptop.

For the current Siemens CPU 1515-2 PN hardware the data sheet specifies firmware V4.1, configured in STEP 7 TIA Portal V21 for FW V4.1 or V18 for FW V3.0; older TIA Portal versions can configure the unit as 6ES7515-2AM02-0AB0. Operating temperature is −30 °C to 60 °C for horizontal mounting and up to 40 °C for vertical mounting, with the display switching off near the upper limits. Know-how protection, copy protection, block protection and several access protection levels guard the program, and PG/OP communication uses TLS 1.3 encryption by default.

Key Features of the Siemens CPU 1515-2 PN

The list below summarises what the Siemens data sheet states for the Siemens CPU 1515-2 PN.

• Integrated work memory of 1 MB for program and 4.5 MB for data, with 472 KB of retentive data that can be extended to 4.5 MB with a suitable power supply.
• Two PROFINET interfaces: X1 with IRT and a two-port switch, and X2 as a single-port RT interface for network separation.
• Media redundancy with MRP manager and client, MRP interconnection and MRPD, for ring networks of up to 50 stations.
• OPC UA server with data access, methods and alarms and conditions, plus an OPC UA client, with a Medium runtime licence required.
• Integrated web server over HTTP and HTTPS with standard and user-defined pages for remote status checks.
• Motion control resources for technology objects, with Siemens quoting typically 11 positioning axes at a 4 ms cycle and 20 at 8 ms.
• PID_Compact, PID_3Step and PID_Temp controllers with integrated optimisation for loops, valves and temperature.
• Programming in LAD, FBD, STL, SCL and GRAPH, with four configurable traces of up to 512 KB each for troubleshooting.

Industrial Applications

In Oman the Siemens CPU 1515-2 PN typically sits at the heart of a unit control panel: a pumping station on a water transmission line, a reverse osmosis train in a desalination plant, a gas compression or metering skid, or the balance-of-plant system of a power or solar site. The memory headroom suits programs with many PID loops, alarms and recipes, and the integrated motion and PID objects reduce the need for separate controllers on conveyors, dosing pumps and valve trains. The second PROFINET port gives SCADA or historian access without exposing the field network.

Utilities, oil and gas operators and manufacturers in Muscat, Sohar, Duqm and Salalah also use the Siemens CPU 1515-2 PN when upgrading older S7-300 systems, since a single unit can host the field network and the plant link at once. Seven Star LLC supplies the Siemens CPU 1515-2 PN with engineering support in Muscat, and we can match it with the Siemens SIMATIC ET 200SP I/O system, the Siemens TP1200 Comfort HMI panel and suitable network cabling in one quotation.

Technical Specifications

The values below for the Siemens CPU 1515-2 PN are taken from the Siemens data sheet for 6ES7515-2AN03-0AB0; confirm the final configuration with our team before ordering.

How to Order

To order the Siemens CPU 1515-2 PN, send Seven Star LLC your required quantity, the TIA Portal version used on your project and the memory card size you need. We will confirm availability and lead time for Oman and the GCC, quote matching power supplies and front connectors, and the Siemens data sheet can be downloaded from this page. For a broader view of the controller range, see our Siemens S7-1500 PLC family page.

Related Siemens items for the same control system: Siemens IM 155-6 PN ST interface module and Siemens SCALANCE XC208 switch.
