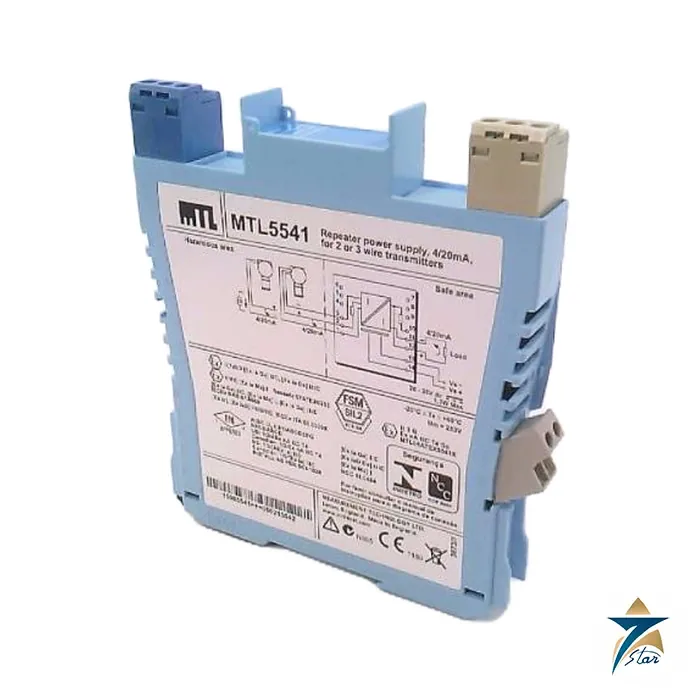

Eaton MTL5541 Repeater Power Supply
Overview
The Eaton MTL5541, part of the Eaton Crouse-Hinds series MTL5500 range of DIN-rail-mounted intrinsically safe isolators, is a single-channel repeater power supply that provides a fully floating DC supply for a conventional 2- or 3-wire 4/20mA transmitter installed in a hazardous area, while repeating the loop current into a separate floating circuit that drives a safe-area load. For smart transmitters, the MTL5541 passes bi-directional HART communication signals superimposed on the 4/20mA loop, allowing configuration and diagnostics through the barrier without interrupting the process measurement.
Seven Star LLC supplies the Eaton MTL5541 as an experienced supply partner of Eaton, supporting hazardous-area instrumentation projects, intrinsic safety barrier installations, and control system upgrades across Muscat, Sohar, Salalah, and the wider Sultanate of Oman. Genuine Eaton Crouse-Hinds MTL5500 series isolators and repeater power supplies are available through Seven Star LLC for oil and gas, petrochemical, and industrial facilities throughout the GCC.
Measurement and Operating Principle
The MTL5541 accepts a 4–20mA (0–24mA over-range) hazardous-area input from a field transmitter and reproduces it as an isolated 4–20mA safe-area output, with transfer accuracy better than 15µA at 20°C and temperature drift below 0.8µA/°C. Galvanic isolation of 250V rms separates the hazardous-area, safe-area, and power supply circuits, ensuring that a fault on either side of the barrier cannot propagate energy into the hazardous area beyond certified intrinsically safe limits.
Response time settles to within 10% of final value within 50µs, supporting fast-responding control loops, while output ripple stays below 50µA peak-to-peak for clean signal integrity. HART communication is supported on terminals 1 and 2, allowing a HART communicator or asset management system connected on the safe-area side to configure and diagnose a hazardous-area smart transmitter without additional isolation hardware.
Engineering Design of the Eaton MTL5541
The MTL5541 mounts on standard MTL5500-series backplanes on a T-section 35mm DIN rail, drawing 51mA at 24V with power dissipation of just 0.7W at 24V – a low thermal footprint that allows dense packing of multiple isolator channels within a single control panel or junction box. A green LED provides at-a-glance power indication, and screw or crimp-ferrule terminals accept conductors up to 2.5mm² for straightforward field wiring.
Certified for Zone 0, IIC, T4–T6 hazardous-area connection (or Division 1, Group A hazardous locations, depending on certification), the MTL5541 is assessed to SIL2 and SIL3 per IEC 61508 for safety-instrumented applications. Operating across an ambient range of −20°C to +60°C and a 20–35V DC supply range, the unit is built for continuous duty in control rooms and marshalling cabinets serving hazardous-area field instrumentation.
Key Features
- Single-channel intrinsically safe repeater power supply, 4/20mA
- For 2- or 3-wire hazardous-area transmitters
- HART communication supported (terminals 1 & 2)
- Transfer accuracy better than 15µA; temperature drift <0.8µA/°C
- 250V rms galvanic isolation between hazardous-area, safe-area, and power circuits
- SIL2 and SIL3 assessed per IEC 61508
- Zone 0 IIC T4–T6 / Division 1 Group A hazardous-area certification
- Low power dissipation (0.7W at 24V) for dense panel mounting
Industrial Applications
The MTL5541 is used throughout oil and gas, petrochemical, and process industries to safely interface hazardous-area 4/20mA and HART transmitters with safe-area control systems, DCS, and PLC analog inputs. Its SIL2/SIL3 assessment makes it suitable for safety-instrumented system (SIS) loops in addition to standard process control applications, wherever intrinsically safe isolation of a 2- or 3-wire transmitter signal is required.
Across Oman’s oil and gas and industrial sectors, from upstream production facilities to refineries and gas plants in Sohar and Salalah, Seven Star LLC supports instrumentation and control engineers specifying the Eaton MTL5541 for new hazardous-area installations and barrier replacement programs. As a trusted supplier of Eaton products, Seven Star LLC provides genuine MTL5500 series isolators with technical support across Muscat and the wider GCC.
Technical Specifications
| Model | Eaton Crouse-Hinds MTL5541 |
|---|---|
| Channels | 1 |
| Signal Range | 4–20mA (0–24mA over-range) |
| Transfer Accuracy | Better than 15µA at 20°C |
| Temperature Drift | <0.8µA/°C |
| Response Time | Settles to 10% of final value within 50µs |
| Communication | HART (terminals 1 & 2 only) |
| Isolation | 250V rms between safe-area, hazardous-area & power supply |
| Supply Voltage | 20–35V DC |
| Current Consumption | 51mA at 24V |
| Power Dissipation | 0.7W at 24V |
| SIL Rating | SIL2 and SIL3 (IEC 61508) |
| Hazardous Area Rating | Zone 0, IIC, T4–T6 / Division 1, Group A |
| Mounting | T-section 35mm DIN rail (MTL5500 series backplane) |
| Operating Temperature | −20°C to +60°C |
Why Choose Seven Star LLC for Eaton MTL Signal Isolation Barriers
A repeater power supply barrier only protects a hazardous-area loop correctly when its channel configuration, isolation rating, and hazardous-area certification genuinely match the classification of the zone it serves, since a mismatched barrier can leave a Zone 1 or Zone 2 installation technically non-compliant even though the unit appears to function normally. Seven Star LLC confirms the correct MTL5541 configuration against your actual hazardous-area classification and loop requirements before shipment, drawing on our trusted Eaton MTL suppliership across Oman and the wider GCC. We also support refineries and petrochemical facilities across Sohar and Salalah with spare barrier planning for DIN-rail mounted safety systems, keeping critical hazardous-area loops maintainable without extended lead times on replacement parts.
Request a Quote for Eaton MTL5541 Repeater Power Supply
Contact Seven Star LLC, an experienced supply partner for Eaton in Oman and the GCC, for pricing, certification documentation, and system design support for the MTL5541 repeater power supply. Our team supports hazardous-area instrumentation projects across Muscat, Sohar, Salalah, and the wider Sultanate of Oman with genuine Eaton Crouse-Hinds MTL isolators.
