Brand: Moldex

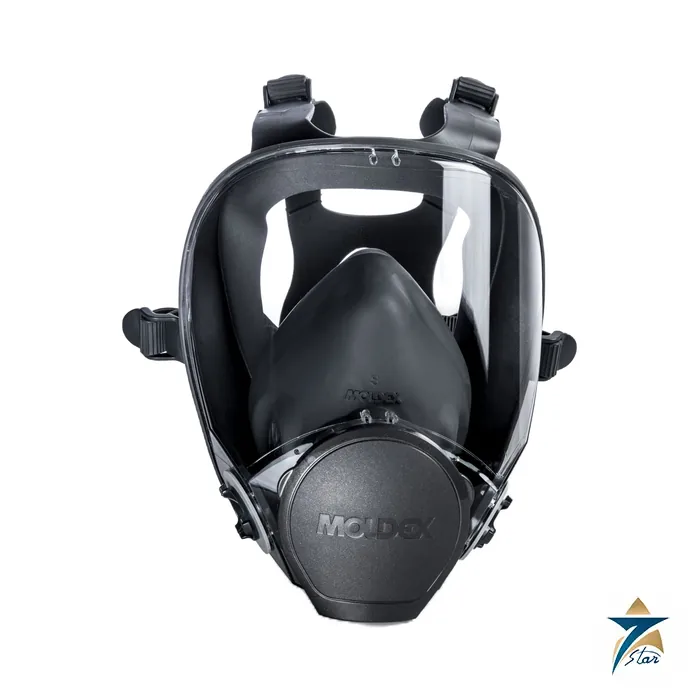

Moldex 9000 Series Reusable Full Face Respirator
Description
A light, metal-free full face respirator with a wide view
The Moldex 9000 Series is a reusable full-face respirator that Moldex rates at under 13 ounces. The facepiece uses an extra-wide viewing lens with peripheral side panels, and the lens is fixed by an overmolded flange rather than a metal clamping frame, so the mask contains no metal at all. Moldex points to mines, refineries and other places where metal may be hazardous as suitable uses. The ratchet fastening strap and stand-away head harness make donning and doffing quick, and the lens stays off the bench when the mask is laid down.
Maintenance is simpler than on many full-face designs: Moldex counts only nine parts against up to 24 on other respirators, with the harness tabs moulded directly into the flange and an integrated exhalation assembly. A tear-away lens protector is supplied.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / series | Moldex-Metric, 9000 Series reusable full face respirator |
| Type | Full facepiece with over-molded flange, ratchet fastening strap and stand-away head harness; cartridges and filters sold separately |
| Sizes | Small (9001), medium (9002), large (9003) |
| Lens | Extra-wide panoramic lens; meets ANSI Z87+ high-impact requirements; scratch-resistant coating; tear-away lens protector |
| Weight | Less than 13 oz (Moldex) |
| Construction | Metal-free; 9 parts |
| Approvals on product page | MOL Approved, NIOSH Approved, SAI Approved |
| Standards on product page | 42 CFR part 84; AS/NZS 1716:2012; ABNT NBR 13695, 13696 and 13697 |
| Packaging | 1 mask per box; 2 boxes per case |
| Shelf life / origin | 5 years; Taiwan |
| Material note | PVC-free; contains latex (listed as yes on product page) |
| Part number | Description | Size |
|---|---|---|
| 9001 | Full facepiece | S |
| 9002 | Full facepiece | M |
| 9003 | Full facepiece | L |
Selecting the size, cartridges and fit test
The 9000 Series is sold as a facepiece, so the cartridges and filters are specified separately. Moldex publishes a NIOSH approval matrix for its cartridge and filter combinations across the 7000, 7800 and 9000 respirators; use it to select a combination approved for the contaminant. The datasheet warnings apply in full: a written respiratory protection programme, employer training, medical evaluation and a qualitative or quantitative fit test before a respirator is assigned.
Do not use the respirator in unknown or immediately dangerous to life or health atmospheres, in oxygen-deficient atmospheres, or against gases and vapours with poor warning properties. A full-face mask offers a higher protection level than a half mask only if it seals, so beards, hair and spectacles that break the seal must be dealt with.
Documents and quotation
The attached Moldex data sheet lists the three sizes, the ANSI Z87+ lens and the warnings and limitations. Since the 9000 Series carries NIOSH approvals, confirm that these satisfy your site standard before ordering. For a quotation give the size, the cartridge or filter type and the number of masks. See the Moldex half-mask alternative on the respiratory protection page and the published 3M 6200 half facepiece for half-mask options.
Datasheets & Documents
- Datasheet Moldex 9000 Series reusable respirator data sheet (manufacturer, EN) Download
Reviews (0)
About brand
Moldex is a US maker of hearing and respiratory protection, based in Culver City, California, with core products manufactured in the USA. Its range covers disposable foam earplugs, reusable earplugs, earmuffs, disposable particulate respirators and reusable half-mask and full-face respirators with cartridges and filters. Seven Star LLC, an independent supplier in Muscat, sources Moldex products for industrial users in Oman and the GCC.
Moldex products listed here
The Moldex pages on this site cover the Mellows foam earplug, the MX-6 earmuff, the 2200 N95 disposable respirator and the 7000 Series half mask and 9000 Series full-face respirators. Each page carries the data from the Moldex datasheet, including approvals as printed.
Where Moldex protection is used
Fabrication, grinding and welding shops, construction, maintenance and plant work, where noise and airborne dust or fume call for personal protective equipment backed by a written hearing or respiratory protection programme.
Ordering Moldex products: what we need
State the model number, size, pack quantity, and for respirators the cartridge or filter combination. Moldex respirators in these pages carry NIOSH approvals, so check that they satisfy the standard required on your site.
Related products
Frequently Asked Questions
Which sizes does the 9000 Series come in?
Small (9001), medium (9002) and large (9003), each packed 1 per box with 2 boxes per case.
Is the lens impact rated?
Moldex states that the lens meets ANSI Z87+ for high-impact requirements and carries a scratch-resistant coating.
Does the mask contain metal?
No. Moldex describes the 9000 Series as completely metal-free, with an overmolded flange in place of a metal clamping frame.
How heavy is the respirator?
Moldex states it weighs less than 13 ounces.
Is a fit test required?
Yes. Moldex states that a qualitative or quantitative fit test must be performed before a respirator is assigned.
