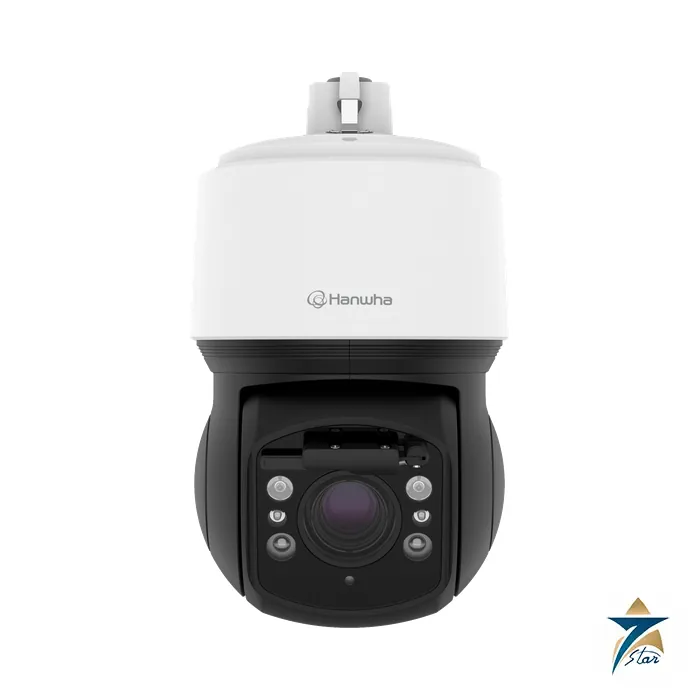

Hanwha Vision XNP-9300RW 4K 30x IR PTZ Camera with Built-In Wiper

Name: Hanwha Vision XNP-9300RW 4K IR PTZ Camera – Datasheet & Quote
Brand: Hanwha Vision
SKU: XNP-9300RW

Description

A 4K PTZ with 200 m infrared and a built-in wiper

The Hanwha Vision XNP-9300RW is a 4K pan-tilt-zoom camera with a 1/2.8 inch CMOS sensor, a 5 to 150 mm lens (30x optical, 32x digital) and 200 m of Wise IR illumination at 850 nm. Hanwha describes it as a Wisenet PTZ Plus design that is compact, lighter and simpler to cable, with a built-in wiper and lens heater to remove water from the window. The datasheet lists a horizontal field of view of 57.42 to 2.19 degrees.

Target lock tracking and object auto tracking for persons and vehicles let the camera follow a subject, and a built-in gyro sensor supports digital image stabilization on windy poles. Pan speed reaches 500 degrees per second on presets, with 300 presets, swing, group, trace, tour and scheduled functions. The camera is rated for operation from -40 to 55 degC, with a 74 degC maximum based on NEMA TS 2.

Technical specifications

Parameter	Specification
Manufacturer / model	Hanwha Vision XNP-9300RW (Hanwha Vision is formerly known as Hanwha Techwin)
Imaging device	1/2.8 in. CMOS
Resolution / frame rate	3840 x 2160 down to 320 x 240; H.265/H.264 up to 30/25 fps; MJPEG 30 fps (5 fps at 8 MP)
Minimum illumination	Color 0.1 lux and B/W 0.01 lux (1/30 s, 30 IRE)
Lens	5 to 150 mm; 30x optical, 32x digital; F1.6 (wide) to F4.56 (tele); horizontal field of view 57.42 to 2.19 degrees; vertical 33.54 to 1.25 degrees; min. object distance 3 m; one-shot AF, DC auto iris
Pan / tilt	Pan 360 degrees endless; tilt 90 to -20 degrees; pan speed preset max 500 deg/s, manual 0.024 to 250 deg/s; tilt preset max 350 deg/s
Sequence / accuracy	Preset (300), swing, group (6), trace, tour, auto run, schedule; preset accuracy up to plus or minus 0.1 degrees
Image functions	WDR 120 dB, BLC, HLC, SSDR, SSNR V, digital image stabilization (built-in gyro), defog, 32 privacy masks, 8 motion-detection zones
IR / water removal	Wise IR 200 m, 850 nm; wiper and lens heater
Auto tracking	Object auto tracking (person/vehicle), target lock tracking
Analytics events	Motion, tampering, fog, face and audio detection, sound classification, shock detection, virtual area (loitering, intrusion, enter/exit, appear/disappear), virtual line
Audio / alarm	Audio in and out and alarm I/O via optional I/O box
Network	Metal shielded RJ-45 10/100BASE-T; H.265/H.264 and MJPEG; WiseStream II; up to 10 profiles; up to 20 unicast users
Integration	ONVIF S, G, T; SUNAPI; Hanwha Vision Open Platform; direct cloud connection; MQTT; NTCIP 1205
Security	Secure boot, signed and encrypted firmware, 802.1X, HTTPS, TPM and HTPM, AES-256 SD card encryption; UL CAP (UL 2900-2-3 L2)
Memory / storage	4 GB RAM, 512 MB flash; two microSD slots, up to 512 GB each (1 TB total)
Operating conditions	-40 to +55 degC; 0 to 100% RH (condensing); maximum +74 degC based on NEMA TS 2; start-up above -30 degC
Power	PoE++ IEEE 802.3bt Type 3 Class 6; max 42 W, typical 20 W; SFP supported by injector
Mechanical	Aluminium and polycarbonate; white (RAL 9003) or black (RAL 9005); diameter 184.9 x 318.8 mm; 5400 g; EPA 0.048 m2
DORI (EN 62676-4)	Wide / tele: detect 140.2 m / 4018.1 m; observe 56.1 m / 1607.2 m; recognize 28.0 m / 803.6 m; identify 14.0 m / 401.8 m

Planning power, distance and tracking

The XNP-9300RW needs PoE++ (802.3bt Type 3 Class 6) with up to 42 W, or an SFP-capable injector for fibre links as the key features state. Check the switch budget and cable length. Choose the colour (white or black) at order. The datasheet notes that start-up should be done above -30 degC although operation extends down to -40 degC.

The DORI table helps with lens planning: at the telephoto end the datasheet gives 401.8 m for identification, and at wide 14.0 m. Real performance depends on atmospheric conditions, so treat these as design guidance. Tracking functions are best used for verifying alarms from fixed cameras or radar, with presets covering the main positions.

The XNP-9300RW sits beside the PTZ range of other manufacturers on this site, such as the Axis Q6315-LE. State the colour, mounting arm, power injector or switch, and the video management system in your enquiry. Hanwha lists the XNP-6400RW as a related 2 MP model with a 40x zoom on its site; confirm the best fit with us.

Documents and quotation

The attached Hanwha Vision datasheet is the reference for all values on this page. Send the colour, mounting accessories, power source and quantity with your request for quotation. Related products: CCTV and security products.
