Brand: Axis

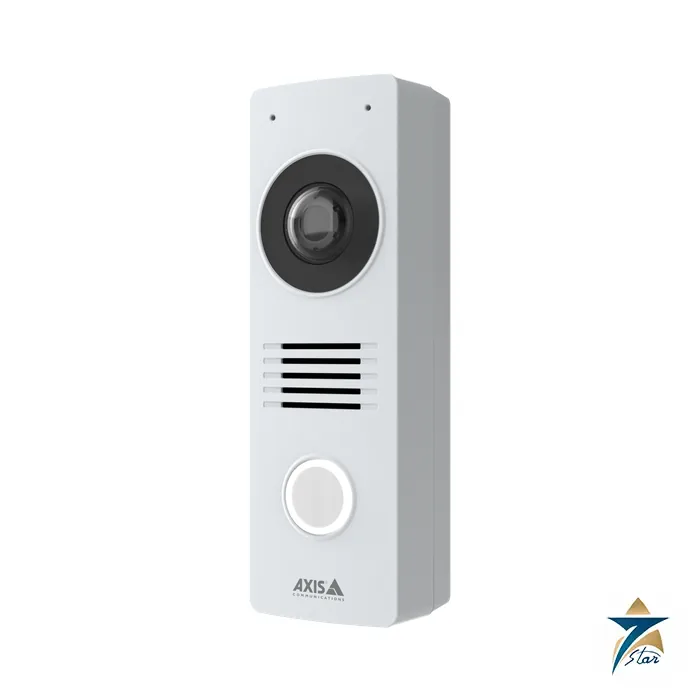

Axis I8116-E Network Video Intercom with SIP and 5 MP Camera
Description
A slim video intercom that is also a security camera
The Axis I8116-E is a compact network video intercom in a mullion form factor. It combines a 5 MP camera with a 162 degree horizontal field of view, a built-in speaker and two microphones with echo cancellation, noise reduction and beamforming, and a call button. It works as a communication device and as a camera at the entrance, with remote entry control by SIP call or from a video management system.
Open standards support integration: ONVIF Profiles G, M and S, and SIP with SRTP, SIPS and TLS for registration with a PBX or peer-to-peer calls. An OSDP reader can be wired to the I/O connector for access control with Axis access control software, and the device can switch a door lock through an Axis A9801 security relay or Axis network door controllers. The CV25 chip with a deep learning processing unit runs AXIS Object Analytics on the device.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Axis Communications, AXIS I8116-E Network Video Intercom |
| Image sensor / lens | 1/2.7 in. progressive scan RGB CMOS, pixel 2 micrometres; 1.95 mm, F2.2; field of view 162 degrees horizontal, 118 degrees vertical; fixed iris and focus, M12 mount |
| Resolution / frame rate | 16:9 1920 x 1080 to 1280 x 720; 4:3 2592 x 1944 to 640 x 480; up to 30/25 fps in all resolutions |
| Minimum illumination | Color 0.15 lux at 50 IRE, F2.2; 0 lux with LED lit; WDR up to 110 dB |
| System on chip / memory | CV25 with DLPU; 2048 MB RAM, 1024 MB flash |
| Video compression | H.264 Main and High, H.265 Main, Motion JPEG; Axis Zipstream |
| Audio | Two-way full duplex; 2 built-in microphones; echo cancellation, noise reduction, beamforming; built-in speaker 85 dB at 1 kHz at 0.5 m |
| SIP | SIP with SRTP, SIPS, SIP TLS, DTMF, NAT; peer to peer or integrated with SIP/PBX; codecs PCMU, PCMA, Opus, L16, speex, G.726-32, G.722 |
| Lock control | Integration with AXIS A9801 Security Relay (350 mA at 12 V DC); Axis network door controllers (0.7 A at 30 V); OSDP reader integration |
| Analytics | AXIS Object Analytics (humans, vehicles; up to 10 scenarios), Video Motion Detection, tampering; Scene Metadata with faces and license plates |
| Integration | ONVIF Profiles G, M, S; VAPIX; ACAP; compatible with AXIS Camera Station Edge and Pro |
| Casing | Aluminium and zinc casing with polycarbonate dome; IP65, NEMA 4X, IK08 (IK10 with AXIS TI8605 Protection Cover); speaker IK07; white NCS S 1002-B or black NCS S 9000-N |
| Mounting | Wall mount or recessed with AXIS TI8204 Recessed Mount; recommended height 0.9 to 1.5 m |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 3, typical 4 W, max 10.8 W; power out 12 V DC, max 350 mA |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE; terminal block for two configurable inputs/outputs |
| Manufacturer Warranty | 5 years |
Planning an entrance intercom and access scheme
A video intercom must fit three things: the mounting position, the lock and the call destination. The datasheet recommends a mounting height of 0.9 to 1.5 m, so check the camera view against a person of normal height and a wheelchair user. For the lock choose between the A9801 relay and an Axis door controller; the current and voltage limits printed in the datasheet decide whether an external relay is needed for the actual lock.
Calls can go to a SIP phone, a PBX or an operator station, which should be named in the enquiry. If access is controlled by credentials, an OSDP reader can be wired to the I/O terminal, but the reader and the access control software must be selected separately. The casing is IP65 and IK08; for vandal-prone locations Axis lists a protection cover that raises the rating to IK10.
Industrial plants that need a harder intercom for process areas should compare the Axis I8016-LVE and the A8207-VE Mk II door station, which have different panel designs. State the colour (white or black), the mounting method, the SIP system, the lock type and the number of units when asking for a quotation.
Related Axis intercoms and door stations
Axis builds several entrance devices; choose by mounting style, keypad needs and the access system in use.
| Model | Description |
|---|---|
| AXIS I8116-E | This page: mullion video intercom with 5 MP camera |

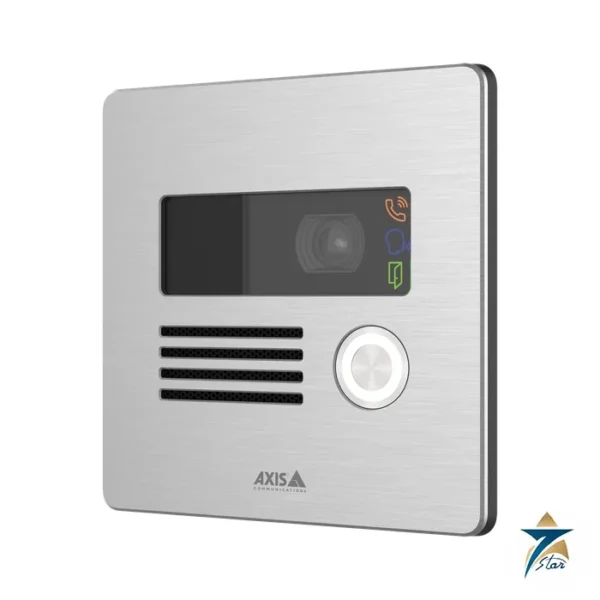

| AXIS I8016-LVE | Anti-ligature, IK10 video intercom with 5 MP camera and IR, listed on this site |
| AXIS A8207-VE Mk II | Network video door station with keypad, listed on this site |
Documents and quotation
The attached Axis datasheet contains the SIP, lock and cybersecurity details. Include the SIP platform, lock type, colour and quantity in your request for quotation. Related products: CCTV and security products.
Datasheets & Documents
- Datasheet Axis I8116-E datasheet (manufacturer, EN) Download
Reviews (0)
About brand
Axis Communications is a Swedish maker of network video and security products, founded in 1984 in Lund by Martin Gren, Mikael Karlsson and Keith Bloodworth. It started with print servers and protocol converters for IBM environments and launched one of the first network cameras in 1996. Since 2015 Axis has been part of the Canon Group, run as a separate company from its Lund headquarters.
Seven Star LLC is an independent supplier in Muscat. We list Axis cameras and devices for plant, site and facility security projects in Oman and the GCC.
Axis company profile
| Founded | 1984, Lund, Sweden |
|---|---|
| Founders | Martin Gren, Mikael Karlsson and Keith Bloodworth |
| First products | Protocol converters and printer interfaces for IBM mainframe and minicomputer environments |
| Headquarters | Lund, Sweden |
| Ownership | Canon Group since 2015; Axis operates as a separate company with its own management |
| Product families | Fixed, PTZ, panoramic and thermal network cameras, explosion-protected cameras for hazardous areas, radar, network audio, intercoms, access control and AXIS Camera Station video management |
Milestones
- 1984: Axis is founded in Lund.
- 1996: The AXIS NetEye 200, one of the first network cameras, is launched.
- 2015: Canon makes an offer for all Axis shares; the Axis board accepts and Axis joins the Canon Group.
Axis product series
Fixed cameras include the P1465-LE bullet, the P3265-LVE dome and the Q1656-LE box camera, and PTZ cameras include the Q6315-LE, Q6225-LE and the AI-based Q6355-LE. For hazardous areas there are the XFQ1656 explosion-protected box camera, the Q1961-XTE thermal camera and the P1468-XLE 4K bullet for zone 2 and division 2, plus the XC1311 explosion-protected horn speaker.
Detection and access products include the Q2101-TE thermometric camera, the Q1656-DLE radar-video fusion camera, the D2110-VE and D2210-VE security radars, the I8116-E and I8016-LVE video intercoms, the A8207-VE door station and the C1310-E horn speaker.
Where Axis products are used
Process plants, tank farms, substations, ports, yards, utilities and commercial buildings, where cameras, radar and speakers protect perimeters, gates and process areas and feed a video management system through ONVIF or the Axis API. Thermometric cameras also monitor equipment temperatures.
Axis products we list
Ordering Axis products: what we need
State the model and part number, the variant, mounting accessories, PoE class or power supply, hazardous-area classification where relevant, and the video management software in use.
Facts checked against published Axis company histories and the 2015 Canon offer, October 2026.
Browse Axis products by category: CCTV & Security.
Related products
Frequently Asked Questions
What camera does the Axis I8116-E have?
A 5 MP 1/2.7 in. sensor with a 1.95 mm lens and a 162 degree horizontal field of view.
Does it support SIP?
Yes. SIP with SRTP, SIPS and TLS for peer-to-peer or PBX integration is listed in the datasheet.
How is a door lock connected?
Through an AXIS A9801 Security Relay or Axis network door controllers; an OSDP reader can also be connected.
How is the intercom powered?
By PoE 802.3af/802.3at Type 1 Class 3, with typical 4 W and maximum 10.8 W.
What is the casing rating?
IP65, NEMA 4X and IK08; IK10 when mounted with the AXIS TI8605 Protection Cover.
