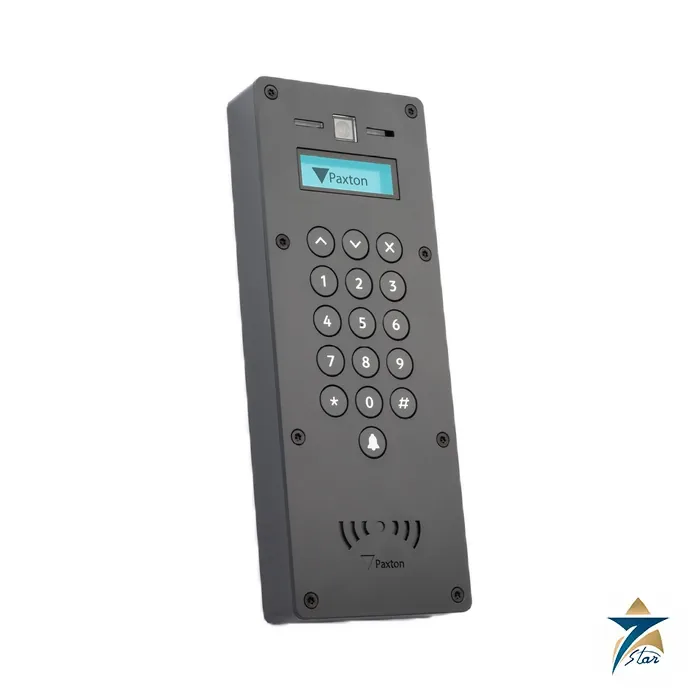

Paxton 337-420 Entry Standard Door Entry Panel, Surface Mount

337-420 is the surface-mount version of the Paxton Entry Standard panel, an external video door-entry panel with a bell button, keypad, proximity token reader, two-way audio and a full-colour camera, powered over Ethernet.

An external entry panel that is also an access reader

Paxton describes Entry as a door-entry system that works on its own or alongside Net2 or Paxton10, and the Standard panel is its robust external unit. Each panel is associated with an Entry control unit that interfaces to the door hardware, and a visitor starts a video call with the bell button. The panel carries a back-lit keypad and LCD and a proximity reader, so a resident can use a code or a token, while installers reach the menu with an engineer code or engineer token.

The panel is finished in anthracite grey (RAL 7021 on the product page) and the datasheet gives ABS and polycarbonate as the materials. The surface-mount code 337-420 sits proud of the wall; the datasheet lists a flush-mount version (337-400) and a surface-mount version with rain hood (337-410) separately.

Key features as printed in the datasheet

• Power over Ethernet (IEEE 802.3af class 0) and IPv6 communication give plug-and-play installation on CAT5.
• Built-in keypad and proximity reader; the product page lists pan/tilt camera functionality and SIP compatibility.
• Works with the Paxton Entry app for answering the door from a smartphone or tablet.
• Optional second IP camera can be integrated for areas of restricted visibility.

Technical specification

System and credentials

Hardware and environment

Surface, flush or rain hood: picking the panel code

Three codes appear in the datasheet. Choose 337-420 when the panel can stand proud of a masonry or cladding wall, 337-400 where a recess is available, and 337-410 where the entrance has no canopy and the extra rain hood is wanted. The product page links a surface-mount drilling template.

The panel does nothing alone: it needs an Entry control unit (listed on the product page as 337-727) and at least one monitor such as the Entry Standard monitor 337-280. Confirm the full set of codes with us before ordering.

Cabling and commissioning notes

Paxton states that Entry components connect with CAT5 or standard RJ45 patch cables, that PoE carries power and data on the same cable, and that the building network may be shared only with the owner permission. A shared network must support IPv6 and PoE switches. The Ethernet run is limited to 100 m, and each call needs about 1 Mb/s of multicast bandwidth.

Application notes APN-1127 (planning and installation), APN-1144 (configuring a panel) and APN-1176 and APN-1177 (standalone use with a function card pack) are linked on the product page.

Entrances where this panel is typically specified

The panel suits apartment blocks, villa compounds, staff accommodation, small offices and clinics where visitors are screened before the door opens. With IP55 or IPX5 protection and a -20 to +50 °C range it is intended for outdoor positions; in direct Gulf sun the panel face may run hotter than ambient, so shade or a north-facing position is sensible.

Selection and installation notes

Access control is designed door by door: the door type, the lock, the reader position, the exit method and the fire release all need to be settled before the equipment is chosen. Fit the unit on the secure side where the maker advises, run cable of the type and length the data sheet allows, test the lock release on power failure and fire alarm, and keep a record of the user and token set-up. Check local fire and security rules before commissioning.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related Paxton items

Pair the panel with the Entry Standard monitor 337-280 or an Entry Premium monitor, the Entry control unit, and the Net2 or Paxton10 software for access control functions. More related products: CCTV and security category.

Frequently asked questions

Is 337-420 a flush or surface panel?

Surface mount. The datasheet lists 337-400 as flush mount and 337-410 as surface mount with rain hood.

How is the panel powered?

By Power over Ethernet, IEEE 802.3af class 0, over CAT5 up to 100 m.

Can I enter a PIN at the panel?

Yes, but only in conjunction with Net2 software or Paxton10, according to the datasheet.

Which token types are read?

Paxton, EM, MIFARE (UID only) and HID, with HID needing activation, per the datasheet.

Does Seven Star LLC act as a Paxton distributor?

No, we are an independent supplier in Muscat and supply Paxton items on request rather than acting as a Paxton channel partner.
