Brand: Axis
Axis Q6315-LE PTZ Network Camera, 1080p, 31x Zoom
Description
A 1080p PTZ camera for long outdoor sightlines
The Axis Q6315-LE is a high-speed pan-tilt-zoom camera for outdoor perimeters, yards and gates where one camera has to cover a wide area and still pick out detail far away. It combines a 1/2 inch sensor and a 31x optical zoom with laser focus, which keeps the picture sharp while the lens zooms between any two values in under a second. Axis lists built-in 850 nm IR illumination with a reach of 300 m or more depending on the scene, so the camera keeps working after dark.
For operators it adds autotracking 2 with click-and-track, an orientation aid, and privacy masking in mosaic or chameleon mode. Analytics on board include AXIS Object Analytics, Scene Metadata and a gatekeeper function. Security is handled by a TPM and Axis Edge Vault; the datasheet lists FIPS 140-2 level 2 certified hardware protection.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Axis Communications, AXIS Q6315-LE (50 Hz and 60 Hz variants) |
| Image sensor | 1/2 in. progressive scan CMOS |
| Lens | 6.91 to 214.64 mm, F1.36 to F4.6; horizontal field of view 60.6 to 2.0 degrees; laser focus, autofocus, P-Iris |
| Resolution / frame rate | 1920 x 1080 (HDTV 1080p) to 320 x 180; up to 50/60 fps |
| Minimum illumination | Color 0.06 lux at 30 IRE, F1.36; B/W 0.001 lux, 0 lux with IR on |
| Pan / tilt | Pan 360 degrees endless, 0.05 to 550 deg/s; tilt +20 to -90 degrees, 0.05 to 500 deg/s |
| Zoom | 31x optical, 12x digital, total 372x; quick-zoom under 1 s between any two values |
| Presets / tours | 300 preset positions; guard tour up to 100; recorded tours up to 10 |
| System on chip / memory | ARTPEC-7; 1024 MB RAM, 512 MB flash |
| Video compression | H.264, H.265, Motion JPEG; Axis Zipstream |
| IR illumination | OptimizedIR, 850 nm LEDs, reach 300 m or more depending on the scene |
| Casing | IP66, IP67, NEMA 4X and IK10; repaintable aluminium casing, polycarbonate dome; ISO 12944-6 C5 (Medium) |
| Power | Axis High PoE 60 W SFP midspan, IEEE 802.3bt Type 3 Class 6; full power typical 15 W (no IR), max 51 W; low power max 30 W, 44 W with IR |
| Operating temperature | Full power -50 to 50 degC; low power -5 to 50 degC; start-up as low as -40 degC; humidity 10 to 100% RH |
| Dimensions / weight | Height 261 mm; diameter 239 mm with weather shield, 192 mm without; 4,800 g |
| Integration | ONVIF Profiles G, M, S and T; VAPIX; AXIS Camera Application Platform |
| Warranty | 5 years |
Power, mounting and what is in the box
The camera is supplied with a 60 W midspan with power cable, an IP66 network connector, a Windows decoder 1-user license and a repaint template. Audio and I/O connectivity runs through Axis portcast technology rather than separate terminals, so check that the network and midspan arrangement suits your cabinet layout. The datasheet gives two power modes: in low power mode the camera is rated only from -5 degC upwards, so use full power for cold sites.

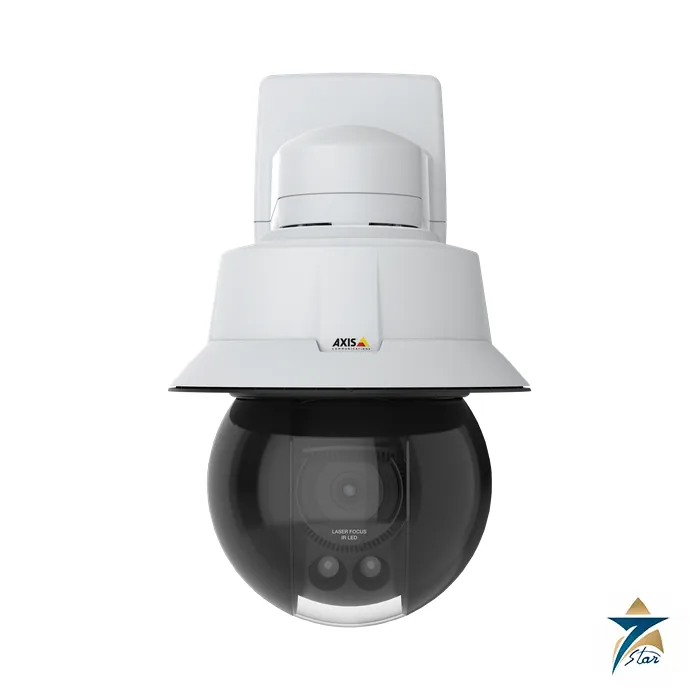

Mounting uses the AXIS T91/T94 accessories listed by Axis; the photo shows the camera with a weathercap and wall mount. Choose the 50 Hz or 60 Hz variant to match the local mains frequency and video standard.
Documents and quotation
The attached datasheet from Axis gives the full analytics, cybersecurity and approvals lists. For a quotation send the variant (50 Hz or 60 Hz), the mounting accessories, the video management software and the cable route to the midspan. Compare other cameras in CCTV and security.
Datasheets & Documents
- Datasheet Axis Q6315-LE datasheet (manufacturer, EN, 2026-09) Download
Reviews (0)
About brand
Axis Communications is a Swedish maker of network video and security products, founded in 1984 and headquartered in Lund, Sweden, and part of the Canon Group. Its range covers network cameras, including explosion-protected models, together with video management software, recorders, audio and access-control products. Seven Star LLC, an independent supplier in Muscat, sources Axis cameras for plant, site and facility security projects in Oman and the GCC.
Axis cameras listed here
The Axis cameras on this site include the XFQ1656 explosion-protected box camera for hazardous areas, the Q6315-LE PTZ camera, the P3265-LVE dome, the P1465-LE bullet and the Q1656-LE box camera for outdoor sites. Each page gives the data from the Axis datasheet and links to it.
Where Axis cameras are used
Process plants, tank farms, substations, ports, yards and industrial buildings, where cameras cover perimeters, gates and process areas and feed a video management system through ONVIF or the Axis API.
Ordering Axis cameras: what we need
State the model and part number, lens or variant, mounting accessories, PoE or AC supply, hazardous-area classification where relevant, storage and the video management software in use.
Related products
Frequently Asked Questions
How far does the built-in IR reach?
Axis lists OptimizedIR with 850 nm LEDs and a range of 300 m or more, depending on the scene.
What is the optical zoom?
31x optical and 12x digital, 372x in total, with a quick-zoom time of under 1 second between any two zoom values.
How is the Q6315-LE powered?
Through the supplied Axis High PoE 60 W SFP midspan, IEEE 802.3bt Type 3 Class 6, with a typical 15 W draw without IR and 51 W maximum at full power.
Which protection ratings does it have?
IP66, IP67, NEMA 4X and IK10, with a repaintable aluminium casing and ISO 12944-6 C5 (Medium) listed in the datasheet.
Does it support autotracking?
Yes. The datasheet lists autotracking 2 with click-and-track and an orientation aid, together with AXIS Object Analytics.
