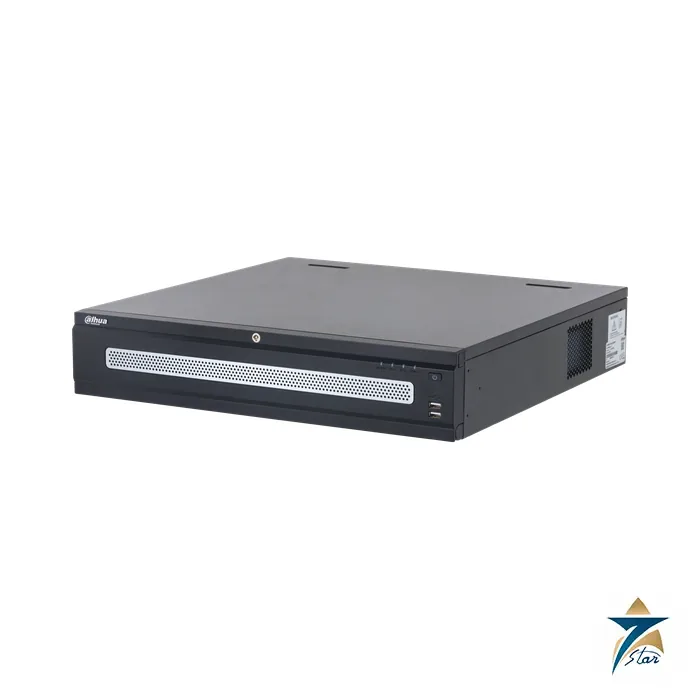

Dahua NVR5832RH-XI 32-Channel 2U 8-HDD WizMind Network Recorder

NVR5832RH-XI is a 32-channel, 2U network video recorder from the Dahua WizMind NVR5000-XI series with eight hot-swappable drive bays, RAID 0, 1, 5, 6 and 10, redundant power and two gigabit ports. It is the project-grade recorder in this lane: sized for a plant, campus or facility with dozens of cameras and a requirement that recording survives a disk or power fault.

A RAID recorder for multi-camera sites

The drawer-like chassis allows disk hot swapping, and the datasheet lists redundant power, N+M cluster and iSCSI. Eight SATA ports each take up to 20 TB, which Dahua notes varies with environment temperature. Network modes include multi-address, load balance and fault tolerance, and 512 Mbps of incoming, recording and outgoing bandwidth is available with AI disabled (200 Mbps with AI on).

AI by Recorder covers 8 channels of face detection and recognition (up to 20 face databases and 200,000 face images), 8 channels of video metadata with 23 attributes, 24 channels of perimeter protection with ten IVS rules each, and 32 channels of SMD Plus. AI by Camera adds ANPR, PPE detection, heat map, people counting and stereo analysis from compatible cameras.

Key features from the Dahua datasheet

• 32 channels, 512 Mbps in/recording/out, cameras up to 32 MP
• 8 SATA bays up to 20 TB each, RAID 0/1/5/6/10, hot swap, eSATA
• Redundant power supply, 100 to 240 VAC, two 10/100/1000 ports
• 2 HDMI and 2 VGA outputs, up to 3840 x 2160 on HDMI
• 16 alarm inputs, 8 alarm outputs, EPTZ, AcuPick on 32 channels

Technical specification

System and AI

Video, recording and storage

Interfaces, power and environment

Selection and ordering guide

The datasheet ordering code is DHI-NVR5832RH-XI, described as 32CH 2U 8HDDs WizMind Network Video Recorder. Drives are not listed as included; state capacity and RAID level in your enquiry. A smaller option is the 8-channel NVR5208-EI in this catalogue.

Optional accessories listed by Dahua are the DHI-ARB1606 alarm box, the ESS1504C 4-bay eSATA extension cabinet and the DHI-RailBracket60/L-Shaped bracket for a server cabinet.

Installation and operation notes

The 2U chassis is 444 mm wide, matching a 19 inch rack, and a rail kit is listed as an option. Mount it in a ventilated cabinet because the datasheet limits operation to -10 to +55 C and drive capacity limits vary with environment temperature. Dahua publishes the HDD installation guide, user manual V2.4.2 and quick start guide on the product page. Consult the user manual for RAID configuration and disk replacement procedures; the datasheet lists only the supported levels.

Applications in Oman and the GCC

A 32-channel RAID recorder suits plant security rooms, warehouses, hospitals, campuses and hotel back-of-house systems where video must keep recording through a disk failure. The ambient limit of +55 C means a cooled control room is needed in hot climates (derived advice); keep the unit away from direct sun and dust.

Selection and installation notes

A network recorder is sized from the number of cameras, the bit rate and the days of storage required. Use drives approved for continuous recording, keep spare drives where the system uses RAID, fit the unit in a ventilated rack with a stable power supply, set up user accounts and passwords at commissioning and test the playback and the alarm functions before handover.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Compatible accessories and related items

Datasheet accessories: DHI-ARB1606 alarm box, ESS1504C eSATA extension cabinet and DHI-RailBracket60 server cabinet rail bracket. Cameras that pair with it include the WizMind IPC-HFW5459Z-Z4HE-PV-PRO and IPC-HFW7442H-Z-X.

Frequently asked questions

How many cameras can the NVR5832RH-XI record?

32 channels, with 512 Mbps incoming and recording bandwidth when AI is disabled.

Which RAID levels are supported?

RAID 0, 1, 5, 6 and 10, with hot swapping of the eight SATA drives.

Does it have redundant power?

Yes, the datasheet lists redundant power with a 100 to 240 VAC input.

What video outputs does it have?

Two HDMI (up to 3840 x 2160) and two VGA (up to 1920 x 1080) outputs.

Can Seven Star LLC quote this recorder?

Yes. We are an independent supplier in Muscat; send your quantity, disk size and RAID level through the quotation form.

Documents and quotation

Download the official Dahua datasheet for NVR5832RH-XI from this page. As an independent supplier based in Muscat, Seven Star LLC supplies Dahua items on request: use the quote form with the quantity you need. Check every value in the document against your own specification before you order. Browse similar items in the CCTV and security category.
