Paxton 337-620 Entry Touch Door Entry Panel, Surface Mount

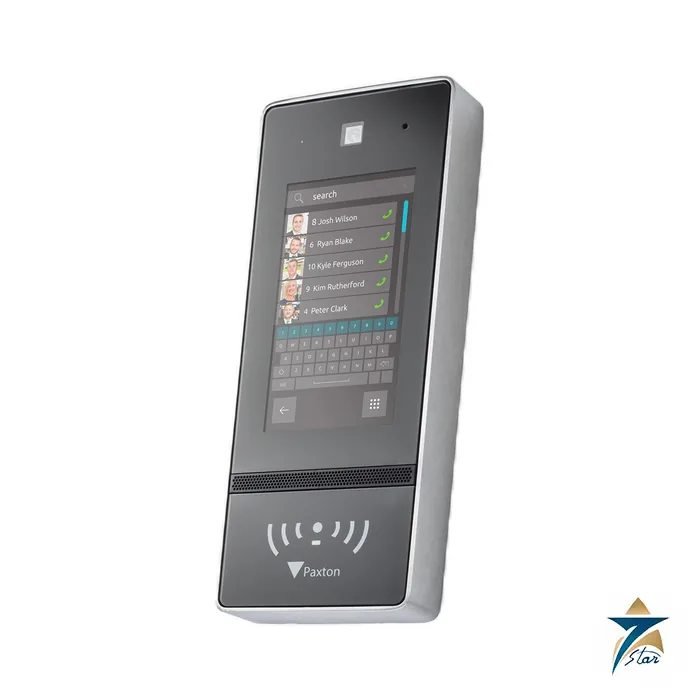

337-620 is the surface-mount Paxton Entry Touch panel: a premium external door-entry panel with a 7-inch capacitive colour touchscreen, full-duplex audio, camera and proximity reader in a 316L stainless steel housing.

A touchscreen entrance directory with access control built in

Where the Standard panel uses a bell button and keypad, the Touch panel replaces them with a 7-inch capacitive touchscreen that the datasheet lists with an anti-glare coating, auto brightness, a low-light LED and optical bonding. Paxton says the screen supports personalisation, and that with the Entry Premium monitor the panel supports two-way video calling and video voicemail.

The panel has a line-out for a T-loop antenna for hearing-aid users and the datasheet gives full-duplex audio. Like all Entry panels it is powered by PoE, talks IPv6 and is linked to an Entry control unit; the same Net2 or Paxton10 software administers its access functions.

Key features as printed in the datasheet

• 316L marine-grade stainless steel housing, black, with IPX5 and IK07 ratings printed in the datasheet.
• 7-inch capacitive touch display with anti-glare coating, auto brightness and low-light LED.
• Built-in proximity reader with Paxton, EM, MIFARE (UID only) and HID (activation required) tokens.
• Bluetooth modes available with Paxton10: token, touch to enter and long range up to 10 m.

Technical specification

System and credentials

Display, hardware and environment

Touch panel codes and what the screen adds

The datasheet lists three Touch panel codes: 337-620 surface mount, 337-610 surface mount with rain hood and 337-600 flush mount. The stainless steel body and touchscreen suit entrances where a visible directory and a corrosion-resistant face are wanted.

The product page recommends the Entry Premium monitor for two-way video calling and video voicemail, and an Entry control unit as the door interface. Confirm the matching monitor and control unit codes with us before ordering.

Mounting, cabling and networking

Components join with CAT5 or standard RJ45 patch cables and PoE removes the need for a separate supply at the panel. If the building network is shared it must support IPv6 and PoE switches, and the call bandwidth of 1 Mb/s per panel should be checked with the IT owner. A second IP camera can be added for blind spots, and the monitor can switch between the two views.

Paxton publishes a surface-mount panel drilling template and application notes APN-1127, APN-1161, APN-1176, APN-1177 and APN-1178 for this panel.

Applications for a premium external panel

The Touch panel suits residential towers, hotel staff entrances, marinas, gated compounds and corporate lobbies where a name directory and a sturdy stainless face are expected. The 316L marine-grade material is relevant to salt-laden coastal air, but the datasheet gives only IPX5 and IK7, so shaded mounting is still advisable in strong summer sun.

Selection and installation notes

Access control is designed door by door: the door type, the lock, the reader position, the exit method and the fire release all need to be settled before the equipment is chosen. Fit the unit on the secure side where the maker advises, run cable of the type and length the data sheet allows, test the lock release on power failure and fire alarm, and keep a record of the user and token set-up. Check local fire and security rules before commissioning.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related Paxton items

Typical partners are the Entry Premium monitor, the Entry control unit and Net2 or Paxton10 software. A T-loop antenna can be connected to the panel line-out. See the category page for other security items.

Frequently asked questions

What is the difference between 337-620 and 337-610?

337-620 is the plain surface-mount Touch panel; 337-610 adds a rain hood, according to the datasheet code list.

What size is the touchscreen?

The datasheet lists a 7-inch capacitive LCD with anti-glare coating and auto brightness.

What is it made of?

316L stainless steel, described as marine grade in the datasheet.

What ingress and impact ratings are printed?

IPX5 moisture resistance and IK7 impact resistance.

Is Seven Star LLC a Paxton distributor?

No. Seven Star LLC is not a Paxton distributor; it is an independent Muscat-based supplier that quotes Paxton products on request.
