Brand: Axis

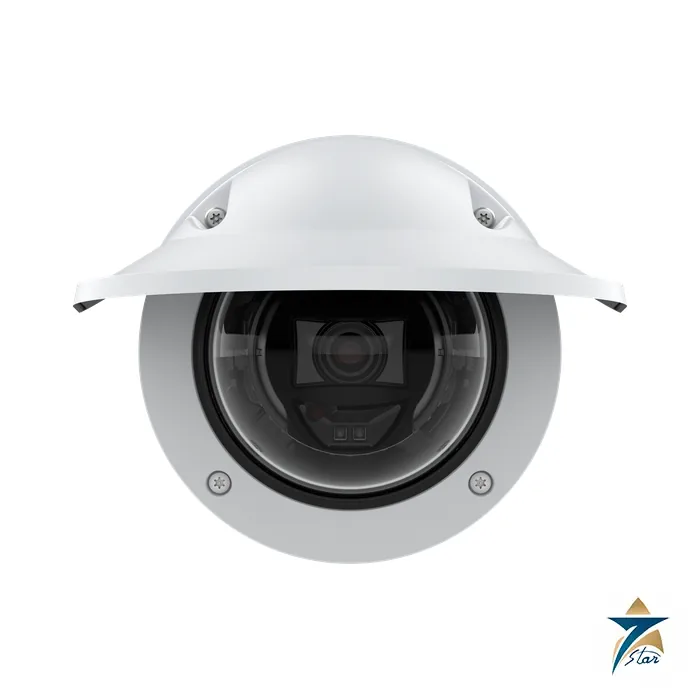

Axis P3265-LVE Outdoor 2 MP Dome Camera with IR
Description
Outdoor dome camera for entrances, car parks and building perimeters
The Axis P3265-LVE is a fixed outdoor dome with a 2 MP sensor, built-in infrared lighting and deep learning analytics. It is a vandal-resistant camera: Axis lists IK10 impact protection together with IP66 and NEMA 4X, and the weathershield is in the box. The ARTPEC-8 chip and the deep learning processing unit run AXIS Object Analytics on the camera, which classifies humans, vehicles and vehicle types.
Image quality in poor light comes from Lightfinder 2.0, Forensic WDR up to 120 dB and OptimizedIR, which uses 850 nm LEDs. There are two lens variants, a wide 9 mm for close, wide coverage and a 22 mm tele lens for longer distances, so the order code decides how the camera covers the scene.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Axis Communications, AXIS P3265-LVE, variants 9 mm and 22 mm |
| Image sensor | 1/2.8 in. progressive scan RGB CMOS |
| Lens, 9 mm variant | Varifocal 3.4 to 8.9 mm, F1.8; horizontal field of view 100 to 36 degrees; minimum focus distance 50 cm |
| Lens, 22 mm variant | Varifocal 9 to 22 mm, F1.6; horizontal field of view 35 to 15 degrees; minimum focus distance 3 m |
| Resolution | 1920 x 1080 to 160 x 90 |
| Frame rate | 25/30 fps with WDR; 50/60 fps without WDR |
| Minimum illumination | Color 0.1 lux at 50 IRE with Forensic WDR and Lightfinder 2.0; B/W 0 lux |
| Camera adjustment | 9 mm: pan +/-180, tilt +/-75, rotation +/-175 degrees; 22 mm: pan +/-190, tilt -10 to +80, rotation +/-190 degrees |
| System on chip / memory | ARTPEC-8; 1024 MB RAM, 8192 MB flash; deep learning processing unit |
| Video compression | H.264, H.265, Motion JPEG; Axis Zipstream |
| IR illumination | OptimizedIR 850 nm; reach 40 m (9 mm) or 45 m (22 mm) or more depending on the scene |
| Audio | 9 mm: two-way, full duplex; 22 mm: audio in, two-way via edge-to-edge technology |
| Casing | IP66, NEMA 4X and IK10; polycarbonate casing and weathershield |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 3; typical 4.8 W, max 10.7 W |
| Operating temperature | -40 to 50 degC; start-up -30 to 50 degC; humidity 10 to 100% RH |
| Dimensions / weight | Height 104 mm (9 mm) or 107 mm (22 mm), diameter 149 mm without weathershield; 800 g (9 mm) or 900 g (22 mm) with weathershield |
| Warranty | 5 years |
Choosing the variant and mounting
Pick the lens from the viewing distance. The 9 mm model has a 100 degree widest field of view and a 40 m IR reach, while the 22 mm model narrows to 35 degrees at its widest and reaches 45 m. Axis also lists different audio arrangements on the two models, so state whether two-way audio is needed. The camera runs on standard PoE Class 3, so most switches and midspans will power it.
Accessories named in the datasheet include a recessed mount, pendant kits, a dome intrusion switch for the 9 mm model, replacement clear or smoked domes and casings. The datasheet also lists a Windows decoder licence, a drill template, cable gaskets and a connector guard in the box.
Documents and quotation
The attached Axis datasheet lists the full analytics, cybersecurity and approval details. For a quotation send the lens variant (9 mm or 22 mm), mounting method, audio requirement, storage card and video management software. For other cameras see CCTV and security.
Datasheets & Documents
- Datasheet Axis P3265-LVE datasheet (manufacturer, EN) Download
Reviews (0)
About brand
Axis Communications is a Swedish maker of network video and security products, founded in 1984 and headquartered in Lund, Sweden, and part of the Canon Group. Its range covers network cameras, including explosion-protected models, together with video management software, recorders, audio and access-control products. Seven Star LLC, an independent supplier in Muscat, sources Axis cameras for plant, site and facility security projects in Oman and the GCC.
Axis cameras listed here
The Axis cameras on this site include the XFQ1656 explosion-protected box camera for hazardous areas, the Q6315-LE PTZ camera, the P3265-LVE dome, the P1465-LE bullet and the Q1656-LE box camera for outdoor sites. Each page gives the data from the Axis datasheet and links to it.
Where Axis cameras are used
Process plants, tank farms, substations, ports, yards and industrial buildings, where cameras cover perimeters, gates and process areas and feed a video management system through ONVIF or the Axis API.
Ordering Axis cameras: what we need
State the model and part number, lens or variant, mounting accessories, PoE or AC supply, hazardous-area classification where relevant, storage and the video management software in use.
Related products
Frequently Asked Questions
Which lens variants exist?
The datasheet lists a 9 mm variant (3.4 to 8.9 mm, F1.8) and a 22 mm variant (9 to 22 mm, F1.6).
How is the camera powered?
By PoE IEEE 802.3af/802.3at Type 1 Class 3, with a typical draw of 4.8 W and a maximum of 10.7 W.
Is it vandal resistant?
Axis rates the camera IK10 for impact, with IP66 and NEMA 4X protection against water and dust ingress.
How far does the IR reach?
40 m for the 9 mm variant and 45 m for the 22 mm variant, or more depending on the scene.
What operating temperature is specified?
-40 to 50 degC, with a start-up temperature of -30 to 50 degC.
