Brand: Hanwha Vision

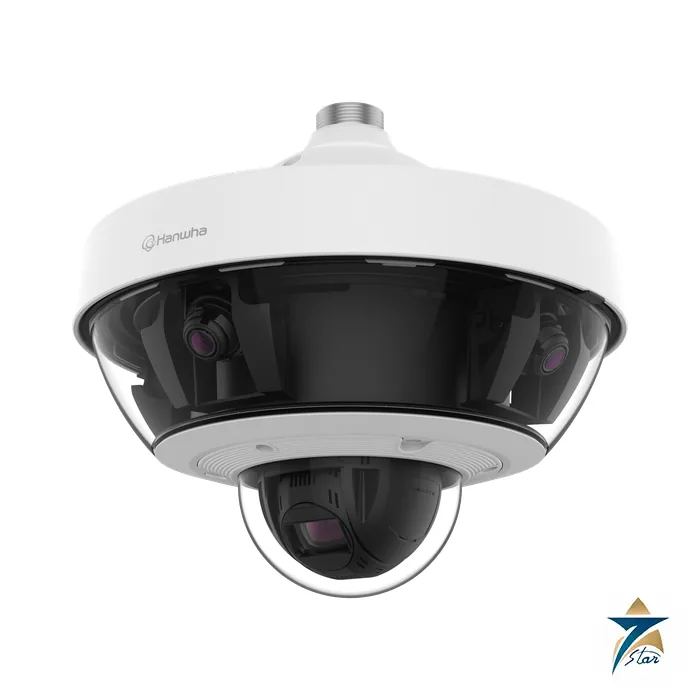

Hanwha Vision PNM-9322VQP 5-Channel Multi-Directional Camera with PTZ
Description
Four fixed views and a PTZ in one housing
The Hanwha Vision PNM-9322VQP is a multi-directional camera that combines four exchangeable lens modules with a 32x optical PTZ dome in the centre. The four modules can be 2MP or 5MP, so one camera can cover a junction, a yard corner, a warehouse floor or a large car park from a single pole or wall bracket and a single network cable.
Hanwha lists a combined resolution of 10 to 22 MP depending on the lens modules chosen, up to 60 fps at 2MP or 30 fps at 5MP, and WDR up to 150 dB with 2MP modules (120 dB with 5MP). Fixed lens options are 2.4, 2.8, 3.6, 6 and 12 mm for 2MP modules, and 3.7, 4.6 and 7 mm for 5MP modules. The PTZ unit has a 4.44 to 142.6 mm lens (32x) and day and night ICR operation.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Hanwha Vision PNM-9322VQP, 2MP/5MP x 5CH Multi-directional Camera |
| Channels | 4 exchangeable fixed-lens modules plus 1 PTZ channel |
| Imaging device | 1/2.8 in. CMOS (each channel) |
| Combined resolution | 10 to 22 MP depending on lens module combination |
| Frame rate | Fixed channels H.265/H.264 up to 30/25 fps; PTZ up to 60/50 fps |
| 2MP lens options | SLA-2M2400P (2.4 mm), SLA-2M2800P (2.8 mm), SLA-2M3600P (3.6 mm), SLA-2M6000P (6 mm), SLA-2M1200P (12 mm) |
| 5MP lens options | SLA-5M3700P (3.7 mm), SLA-5M4600P (4.6 mm), SLA-5M7000P (7 mm) |
| WDR | Up to 150 dB with 2MP modules, 120 dB with 5MP modules |
| PTZ lens | 4.44 to 142.6 mm, 32x optical; F1.6 to F4.4; horizontal 61.8 to 2.19 degrees; vertical 36.2 to 1.24 degrees; one-shot AF |
| PTZ movement | Pan 360 degrees endless; tilt 190 degrees (-5 to 185); preset speed up to 700 deg/s; 300 presets; swing, group, trace, tour, auto run, schedule; accuracy plus or minus 0.2 degrees |
| Image functions | BLC, HLC, WDR, SSDR, SSNR V, digital image stabilization, defog, 8 motion-detection zones, up to 32 privacy masks, hallway view |
| Analytics events | Defocus, motion, fog and face detection, virtual area (loitering, intrusion, enter/exit, appear/disappear), virtual line |
| Audio / alarm | Mic or line in, line out; 1 alarm input and 1 output |
| Network | Metal shielded RJ-45 10/100BASE-T; H.265, H.264, MJPEG; WiseStream II; ONVIF S, T; SUNAPI |
| Storage | microSD/SDHC/SDXC, 5 slots; edge storage up to 256 GB x 4 slots (1 TB total) |
| Environmental | IP66, IK10; operating -40 to +55 degC; humidity 0 to 90% RH (non-condensing) |
| Power | PoE++ IEEE 802.3bt Type 4 Class 8; max 65 W, typical 34 W |
| Mechanical | Aluminium, white RAL 9003; diameter 367.8 x 335.7 mm; 7.05 kg |
| Compatible mounts | SBP-300PM, SBP-300KM, SBP-390WM2 |
Selecting modules, mounts and recording
The main decision is the lens module for each of the four directions. A 2.4 or 2.8 mm module gives a wide view near the camera; 6 or 12 mm modules reach further. The 5MP modules give more detail but a lower WDR figure. Mix modules to suit the scene, then let the PTZ confirm detail on demand. The modules are listed as separate part numbers (SLA-series), so the enquiry should state the module for each of the four positions.
Power and network are demanding: the camera needs 802.3bt Type 4 Class 8 PoE++ with up to 65 W, and a single 10/100 Ethernet link carries all five streams, so check the bandwidth and the recording server capacity. Five microSD slots are provided for edge recording. The unit weighs 7.05 kg with a diameter of 367.8 mm, so pole or wall brackets must be rated for the load; Hanwha lists SBP-300PM, SBP-300KM and SBP-390WM2 as compatible mounts.
Compared with one PTZ such as the XNP-9300RW, the multi-directional camera records all four directions continuously, which helps investigations. State the module list, mount, VMS and power source when requesting a quotation.
Documents and quotation
The attached Hanwha Vision datasheet lists the module options and every specification used above. Send the lens modules, mount, power source and quantity with your request for quotation. Related products: CCTV and security products.
Datasheets & Documents
- Datasheet Hanwha Vision PNM-9322VQP datasheet (manufacturer, EN) Download
Reviews (0)
About brand
Hanwha Vision is a South Korean maker of network video surveillance cameras, headquartered in Seongnam.
Seven Star LLC is an independent supplier in Muscat. We list Hanwha Vision cameras for security projects in Oman and the GCC.
Hanwha Vision product series
AI cameras include the XNO-A9084R 8MP IR bullet and the XNV-A8084RS 5MP stainless steel IR vandal dome. PTZ cameras include the XNP-9300RW 4K 30x IR PTZ with wiper and the TNP-A9430RW 8MP ruggedized PTZ with 43x zoom.
The PNM-9322VQP is a multi-directional camera with four fixed channels and a PTZ.
AI cameras classify people and vehicles to reduce false alarms, and IR illumination allows viewing in darkness. Stainless steel housings suit corrosive and coastal environments, and multi-directional cameras cover several directions from one mounting point.
PTZ cameras with long zoom are used to follow events over large areas.
Where Hanwha Vision cameras are used
Perimeters, car parks, ports, plants, city surveillance and corrosive or coastal sites.
Ordering Hanwha Vision cameras: what we need
Send the model, mounting accessories, power and the video management system in use.
Browse Hanwha Vision products by category: CCTV & Security.
Related products
Frequently Asked Questions
What does the Hanwha Vision PNM-9322VQP consist of?
Four exchangeable 2MP or 5MP fixed-lens modules plus a 32x optical PTZ camera.
What combined resolution is listed?
10 to 22 MP, depending on the lens module combination.
Which fixed lenses are available?
2.4, 2.8, 3.6, 6 and 12 mm for 2MP modules, and 3.7, 4.6 and 7 mm for 5MP modules.
What power does it need?
PoE++ IEEE 802.3bt Type 4 Class 8, maximum 65 W and typical 34 W.
What environmental rating is listed?
IP66 and IK10, with operation from -40 to +55 degC.
