Bruel-Kjaer Type 2240
Overview

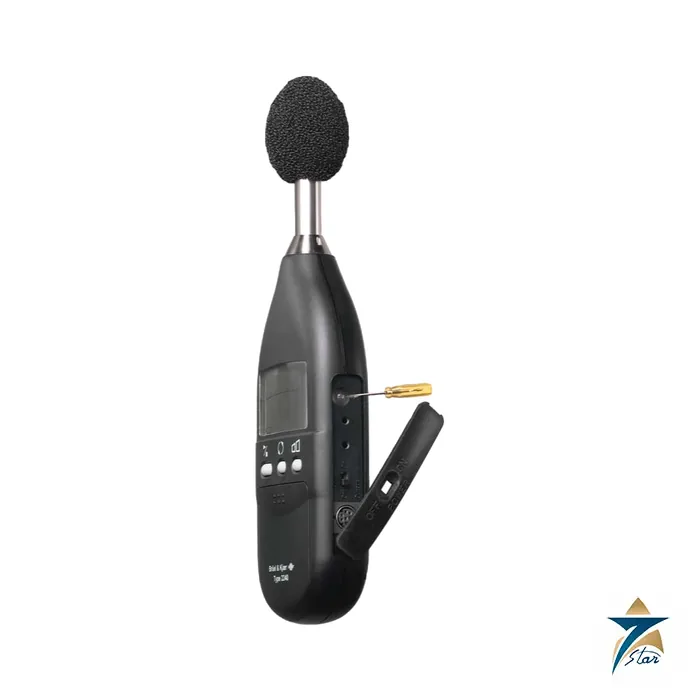

The Brüel & Kjær Type 2240 (Bruel-Kjaer Type 2240) is an integrating-averaging sound level meter with Class 1 precision. It measures four parameters simultaneously — LAF, LAFmax, LAeq and LCpeak — with no setup required, which makes it a simple instrument for on-the-spot workplace and environmental noise checks.
The 2240 is a broadband meter: it does not perform 1/1- or 1/3-octave or statistical analysis, for which B&K offers the Type 2250 series. It is supplied with a Type 4188 prepolarized free-field microphone, and the Type 2240 A variant adds the Type 4231 sound level calibrator.
Key Features
- Class 1 to IEC 61672-1:2002
- LAF, LAFmax, LAeq and LCpeak measured simultaneously, 0.1 dB resolution
- Total RMS range 30 to 140 dB in two manually selected ranges
- Manually controlled measurement time from 1 s to 60 min
- Type 4188 1/2 in. prepolarized free-field microphone
- Powered by two AA alkaline batteries, approximately 16 h lifetime
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Type 2240 (Type 2240 A includes Type 4231 calibrator) |
| Standards | IEC 61672-1:2002 Class 1; IEC 60651 Type 1; IEC 60804 Type 1; ANSI S1.4-1983 Type S1; ANSI S1.43-1997 Type 1 |
| Parameters | LAF, LAFmax, LAeq, LCpeak |
| RMS measuring range | 30 to 140 dB (ranges 30–110 dB and 60–140 dB) |
| Peak range | 60 to 143 dB |
| Frequency range | 20 Hz to 16 kHz |
| Frequency weightings | A (RMS), C (Peak) |
| Time weighting | F (Fast) |
| Microphone | Type 4188 prepolarized free-field 1/2 in., −30 dB re 1 V/Pa |
| Operating temperature | −10 to +50 °C |
| Batteries | 2 × 1.5 V LR6/AA alkaline, approx. 16 h |
| Dimensions | 230 × 78 × 31 mm including microphone |
| Weight | 245 g including batteries |
| Noise floor | Below 22 dB |
| Linear operating range | 80 dB |
| Storage temperature | -25 to +60 °C |
| Power consumption | Below 300 mW in normal operation |
| Settling time | Under 5 s |
| Display update | 1 s numeric; 0.1 s bar graph |
| Microphone frequency range (Type 4188) | 8 Hz to 16 kHz ±2 dB |
| Reference conditions | 1000 Hz, 94 dB, 20 °C, 65 % RH, range 30-110 dB, frontal incidence |
| Safety / EMC | EN/IEC 61010-1; EN/IEC 61000-6-1/-2/-3/-4, EN/IEC 61326 |
Applications
- Workplace noise measurement and hearing-conservation checks in plants and workshops
- Environmental noise assessment around industrial and construction sites
- Impulsive noise assessment using LCpeak
- General sound pressure level checks, for example of PA systems
Brüel & Kjær Type 2240 Ordering Code and Options
The product data lists two order numbers. Type 2240 is the sound level meter alone. Type 2240 A is the same meter delivered together with Sound Level Calibrator Type 4231, which is otherwise the only optional accessory named for the instrument.
Both versions include the Type 4188 prepolarized free-field 1/2 inch microphone, a random-incidence corrector, pouch, protective cover, screwdriver and two alkaline batteries. The supplied microphone is a free-field type, and the random-incidence corrector is the accessory provided for measurements that require random-incidence response.
The instrument has no setup menu. Controls are a power switch and three keys: start/stop, parameter select and range select (30-110 dB or 60-140 dB). All four parameters are measured in parallel, so the user only chooses which value is shown. The manufacturer points out that 1/3-octave or statistical analysis needs a more advanced instrument.
Brüel & Kjær Type 2240 Selection Notes
Three limits in the datasheet matter when choosing this meter. First, the noise floor is below 22 dB and the lower range starts at 30 dB, so it is not meant for very quiet rooms. Second, a single measurement can run from 1 second up to 60 minutes and is started and stopped by hand; the product data describes no logging or data storage. Third, an overload during a timed measurement is latched and shown with the results until they are cleared, so an affected reading cannot be overlooked.
Why Seven Star LLC
Seven Star LLC supplies Brüel & Kjær acoustic and vibration instrumentation to EHS teams, laboratories, consultancies and maintenance departments across Oman and the GCC. Each item is checked against the original B&K type number and order code before the order is confirmed, and the required accessories and calibration documentation are agreed with the customer in advance. Where a calibrator is required, the 2240 A version or a separate Type 4231 can be quoted.
Request a Quote for Bruel-Kjaer Type 2240
Submit a formal inquiry with the model (Type 2240 or 2240 A), the quantity and any accessories you need, such as a calibrator or windscreen. Inquiry Form
