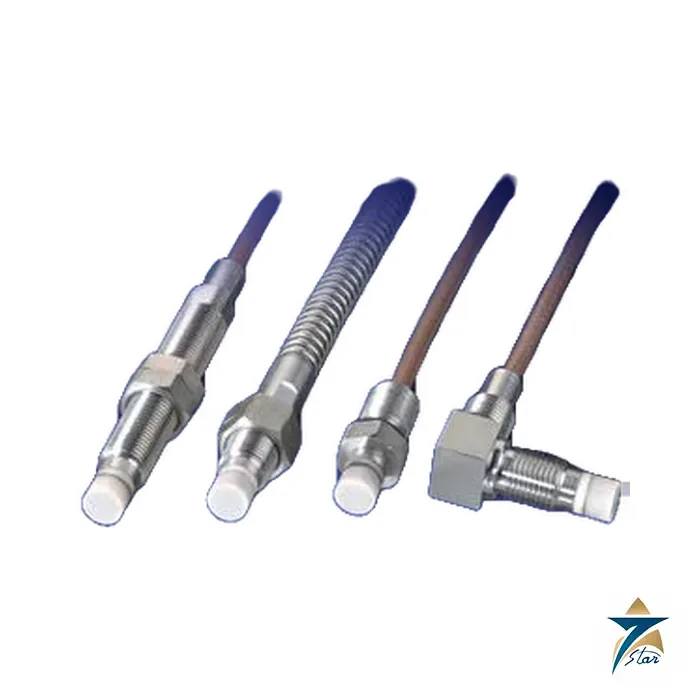

Bruel-Kjaer SD-052 Non-Contacting Displacement Sensor

The Bruel-Kjaer SD-052 Non-contacting Displacement Sensor with full length thread is a precision-engineered device designed for accurate and reliable measurement of displacement without physical contact. This advanced industrial sensor is ideal for applications requiring high accuracy, minimal wear, and long-term operational stability. The Bruel-Kjaer SD-052 is widely used across industries such as manufacturing, power generation, oil and gas, and heavy machinery maintenance, where precise monitoring of displacement, vibration, and position changes is critical.

With its full length threaded body, the Bruel-Kjaer SD-052 offers flexible and secure mounting options, making it easy to install and adjust in a variety of configurations. The design ensures robust mechanical stability, even in environments subject to high vibration or temperature changes. The sensor is built from durable materials, offering resistance to dust, moisture, and harsh industrial conditions, ensuring a long service life and dependable performance.

This non-contacting displacement sensor is ideal for monitoring shaft movements, mechanical alignment, and structural displacement. By eliminating the need for direct contact with the measured surface, it reduces mechanical wear, minimizes maintenance needs, and improves overall measurement repeatability. The technology inside the SD-052 delivers high resolution and exceptional linearity, making it suitable for both continuous monitoring and high-precision control applications.

Industries integrating the SD-052 into predictive maintenance programs benefit from its ability to detect early signs of wear or misalignment, helping to prevent costly unplanned downtime. Maintenance teams can act proactively based on real-time data, extending equipment lifespan and reducing operational risks.

The full length thread design offers installation versatility, allowing the sensor to be positioned precisely for optimal measurement performance. It can be easily integrated into existing monitoring systems due to its standard connection interfaces, and its compact size makes it suitable for use in space-constrained setups.

In addition to displacement measurement, the sensor can also be used for vibration analysis, machine condition monitoring, and precision positioning in automated systems. Its non-contact nature ensures consistent accuracy even under challenging conditions, making it a trusted choice for engineers worldwide.

Whether used in rotating machinery, turbine monitoring, or structural analysis, the Bruel-Kjaer SD-052 Non-contacting Displacement Sensor with full length thread is a reliable, high-performance solution that supports operational efficiency and equipment health in demanding industrial environments.

Technical Overview

The Brüel & Kjær Vibro SD-052 is a legacy eddy-current displacement sensor from the manufacturer’s earlier SD-05x product family, used for measuring radial shaft vibration, axial position, and relative displacement on rotating machinery such as compressors, turbines, and large pumps. Like other eddy-current probes in the B&K Vibro range, the SD-052 operates on a non-contact principle: a high-frequency electromagnetic field generated by the probe tip interacts with the conductive shaft surface, and the resulting change in impedance is converted by a paired oscillator-demodulator unit into a linear DC voltage proportional to the gap distance.

Seven Star LLC’s research into current and archival Brüel & Kjær Vibro documentation found a minor discrepancy across the manufacturer’s own historical materials regarding the SD-052’s probe tip diameter, with some references citing 5mm and others citing 8mm for this part number. Because this affects both the sensor’s linear measuring range and its mechanical mounting thread, customers should confirm the exact tip diameter against the nameplate or datasheet of the specific unit being replaced, or contact Seven Star LLC with the full existing part number and installation details so our team can verify the correct match before ordering. This sensor is understood to be a discontinued, legacy part; Brüel & Kjær Vibro’s current production eddy-current displacement sensor line for equivalent applications is the DS82x series, which is to be confirmed against the nameplate details of the existing sensor.

Applications

Eddy-current displacement sensors of this type are installed on radial and thrust bearings of critical rotating machinery to provide continuous relative shaft vibration and axial position data to a machinery protection system such as VIBROCONTROL or VC-6000. Typical installations include steam and gas turbines, centrifugal compressors, and large motor-driven pumps in oil and gas, petrochemical, and power generation facilities, where API 670 compliance requires continuous non-contact vibration and position monitoring on machine trains above a defined power or criticality threshold.

Why Seven Star LLC

For a legacy, likely-discontinued sensor like the SD-052, sourcing a genuine, correctly specified replacement is more difficult than ordering current-production hardware, and the risk of receiving a mismatched or counterfeit part from an unauthorized source is correspondingly higher. Seven Star LLC sources sensors on request and, where an exact legacy part is no longer available, to identify the correct current-production replacement (such as the DS82x series) that is form, fit, and function compatible with the existing installation. Our team verifies every ordering detail — probe tip diameter, cable length, thread type, and connector style — against the customer’s actual installed hardware before confirming a quotation, avoiding the costly delay of receiving an incorrect part during a plant outage.

Request a Quote for Bruel-Kjaer -SD-052

Contact Seven Star LLC with your existing SD-052 sensor’s full nameplate details, or a photograph of the installed probe, to confirm the correct replacement specification and receive a formal quotation. Our engineering team supports customers across Oman and the GCC with legacy sensor identification, cross-referencing to current Brüel & Kjær Vibro product lines, and reliable delivery.

Ordering Notes

When requesting a replacement quotation, please confirm the probe tip diameter, overall cable length, connector type, and the paired oscillator-demodulator part number from your existing installation, since these details determine whether an exact legacy match or a current-generation DS82x substitute is the correct choice for your machine train.
