Brand: Brüel & Kjær

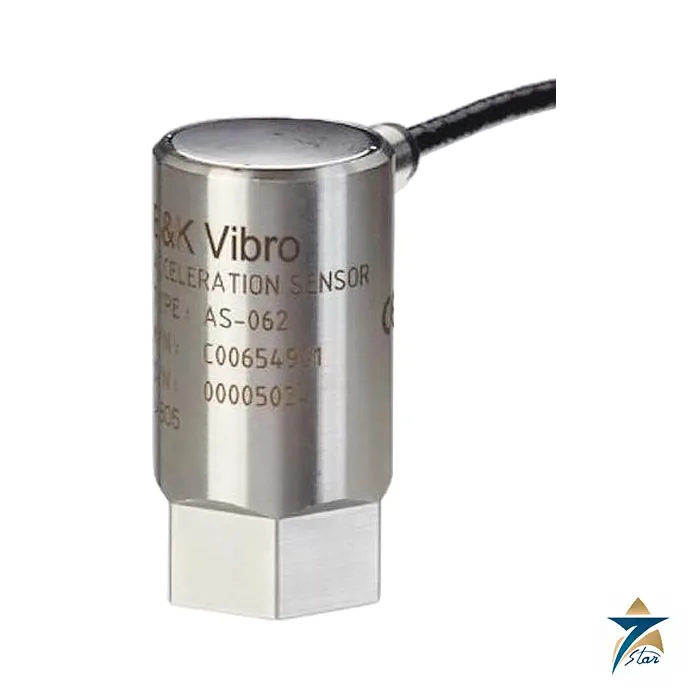

Bruel-Kjaer AS-062/050/0 Vibration Acceleration Sensor

Name: Bruel-Kjaer AS-062/050/0 Acceleration Sensor – Datasheet
Brand: Brüel & Kjær

Description

Overview

The Brüel & Kjær Vibro AS-062/050/0 (Bruel-Kjaer AS-062/050/0) is a piezoelectric acceleration sensor with constant current supply (CCS) for permanent vibration monitoring on rotating machinery such as turbines, pumps and compressors. It uses the compression principle, in which a piezo-ceramic disc and an internal mass form a spring-mass system.

In the AS-062 order code AS-062/aaa/b, “050” denotes a 5.0 m integrated cable and “0” denotes no protective conduit. The AS-062 is not the Ex version; B&K Vibro offers the ASA-062 (ATEX) for hazardous areas.

Key Features

CCS (IEPE-type) accelerometer, 100 mV/g sensitivity
Frequency range 1.5 Hz to 13 kHz (±3 dB)
Operating temperature −50 to +125 °C
Stainless steel 1.4301 housing, IP66/IP67
M8 threaded stud mounting
5.0 m integrated cable without protective conduit

Technical Specifications

Parameter	Value
Part number	AS-062/050/0
Measuring principle	Piezoelectric, compression
Sensitivity	100 mV/g ±5% (10.2 mV/m/s²)
Frequency range	1.5 Hz to 13 kHz (±3 dB)
Resonant frequency	>20 kHz
Supply	Constant current 4 mA (2 to 10 mA); +24 V DC (+18 to +30 V)
Operating temperature	−50 to +125 °C
Housing	Stainless steel 1.4301
Protection class	IP66 / IP67 (EN 60529)
Mounting	Threaded stud M8
Weight	approx. 130 g without cable
Cable	5.0 m integrated cable, no protective conduit
Measuring range	±80 g at +24 to +30 V supply; ±40 g at +20 V; ±20 g at +18 V
Sensitivity accuracy over frequency	±5 % from 4 Hz to 10 kHz
Sensitivity accuracy over temperature	±5 % from -50 to +120 °C
Output bias voltage	+12.5 V ±1.5 V
Overload capacity	500 g continuous; 5000 g shock, all directions
Insulation resistance (housing to 0 V)	20 MΩ or more
Storage temperature (original packaging)	-20 to +70 °C
Dimensions / cable	48 mm long, 22 mm across flats; ETFE cable, 2 cores + shield, 3.3 mm OD

Applications

Permanent vibration monitoring of pumps, motors, fans and compressors in non-hazardous areas
Bearing-housing vibration inputs to machine protection and condition-monitoring systems
Rotating equipment in power generation, water, and oil and gas utility services

B&K Vibro AS-062 Ordering Code and Options

The order code has the form AS-062/aaa/b. The three-digit group is the length of the integrated cable: 050 = 5.0 m, 100 = 10.0 m, 150 = 15.0 m and 200 = 20.0 m. The last digit is the cable protection: 0 = none, 1 = steel protective conduit. The conduit option is only offered on the 5 m and 10 m lengths.

AS-062/050/0 is therefore the 5 m version without conduit. The scope of delivery is the sensor, two threaded studs (M8 × 14 and M8 to 1/4 in-28 UNF) and the documentation, so the same sensor fits either a metric or a UNF tapped hole.

The manufacturer warns that strong electromagnetic fields can affect the reading and recommends a grounded steel protective conduit for the sensor cable in that case, which is a reason to choose the /1 version in electrically noisy locations.

B&K Vibro AS-062 Installation and Wiring Notes

Wiring is two-wire plus shield: red is signal/constant-current supply (4 mA nominal), white is COM/0 V. The supply is polarity sensitive. Mount on a flat, machined surface of at least 28 mm diameter with an M8 × 1.25 or 1/4 in-28 UNF hole 12 mm deep. Apply a thin film of silicone grease to reduce contact resonance, keep the stud engagement in the sensor to 5 mm or less, and tighten to 3.5 Nm. Any mounting orientation is allowed. The usable measuring range falls to ±20 g if the supply is only +18 V.

Why Seven Star LLC

Seven Star LLC supplies Brüel & Kjær Vibro sensors to power generation, oil and gas and petrochemical customers across Oman and the GCC. The cable length, conduit option and area classification are confirmed before quotation, so that an Ex-certified variant is offered where the installation requires it.

Request a Quote for Bruel-Kjaer -AS-062/050/0

Submit a formal inquiry with the part number AS-062/050/0, the quantity, the required cable length and conduit option, and the hazardous-area classification of the installation. Inquiry Form

Reviews

There are no reviews yet.

How would you rate this product?

About brand

The Brüel & Kjær items on this page are mainly machine vibration monitoring products from Brüel & Kjær Vibro, the company based in Darmstadt, Germany. Its VIBROCONTROL monitors, rack modules and velocity sensors protect turbines, compressors, pumps and fans against damaging vibration.

Seven Star LLC is an independent supplier that sources Brüel & Kjær Vibro monitoring modules, monitors and sensors for plants in Oman and the GCC, mostly as replacements for units already in service.

Brüel & Kjær Vibro product families

The largest group here is rack hardware: SM-610 monitoring modules in many variants (the suffix, as in SM-610-A02 or SM-610-118, fixes the version), the PS-610 power supply module and the CI-620 communication interface. Stand-alone monitors include the VIBROCONTROL 1000, the VC-920 and the VC-868/1, alongside the AMO-622 monitoring system. Sensors include the VS-068 and VS-069 velocity sensors. The manufacturer's present machinery protection platform is the VC-8000. Laboratory accelerometers and sound and vibration analyzers that carry the Brüel & Kjær name are a separate product line, and a few of those instruments are listed here as well; send us the type number if that is what you need.

Where Brüel & Kjær vibration monitoring is used

Typical machines are steam and gas turbines, generators, centrifugal compressors, boiler feed pumps, cooling tower and process fans and gearboxes in power plants, oil and gas facilities, cement works and petrochemical plants. The monitors supply alarm and trip contacts to the plant protection system and measured values to the control room.

Ordering Brüel & Kjær Vibro parts: what we need

Send the complete type designation with its suffix, the order or part number from the label, and the serial number. For monitors add the measuring span, sensor type, supply voltage and output configuration, since many units are configured to order. For sensors give sensitivity, mounting direction, cable length, connector and the hazardous area approval. Photos of the label and of the rack help.

Browse Brüel & Kjær products by category: Vibration, Portable Test & Measurement, Sensors & Transmitters.

Frequently Asked Questions

What is the sensitivity of the Bruel-Kjaer AS-062/050/0 sensor

It has a sensitivity of 100 mV per g, and is designed for permanent installation on industrial machinery.

What is the operating temperature range of the AS-062/050/0

It operates from -50C to +125C, which allows it to function reliably on heavy machinery, turbines, compressors, and process plant equipment in extreme conditions.

What cable configuration does the AS-062/050/0 come with

It has a 5 meter integral cable with open cable ends and no protective conduit.

How does the AS-062/050/0 receive power and transmit signal

It operates using a Constant Current Supply, known as CCS, which provides stable signal transmission and minimizes measurement error.

Where is the AS-062/050/0 manufactured

It is manufactured in Germany, reflecting Bruel-Kjaer German precision engineering standards.
