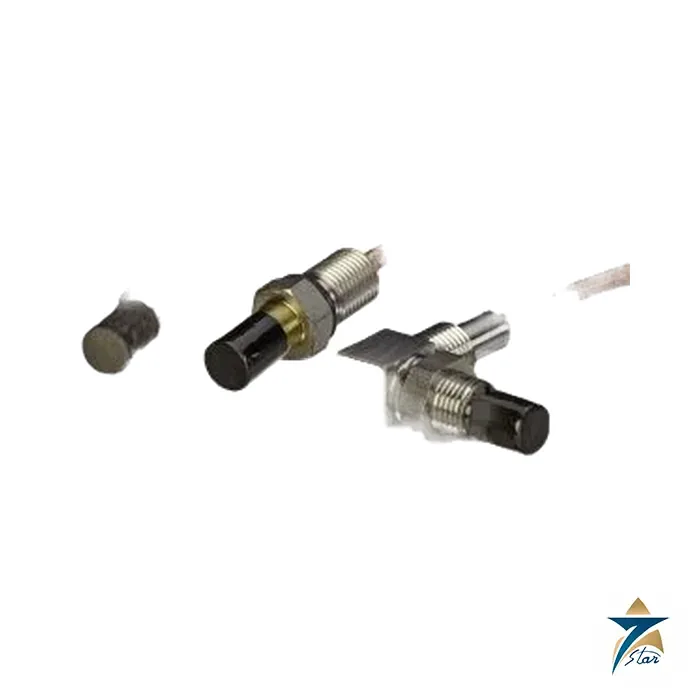

Bruel-Kjaer SD-081/3/075/10/0/0/169 Displacement Sensor

The Bruel-Kjaer SD-081/3/075/10/0/0/169 Non-contacting Displacement Sensor is a precision measurement device designed for high accuracy and reliability in industrial applications. This advanced sensor provides accurate displacement readings without making direct contact with the measured surface, making it ideal for applications where minimal wear, long-term stability, and repeatable performance are essential. The Bruel-Kjaer SD-081/3/075/10/0/0/169 is widely used in sectors such as power generation, oil and gas, manufacturing, and mechanical engineering, where precise monitoring of shaft position, vibration levels, and structural movement is crucial.

Built with a durable and compact design, the Bruel-Kjaer SD-081/3/075/10/0/0/169 offers exceptional mechanical stability even in demanding environments with high vibration, extreme temperatures, and exposure to dust or moisture. Its construction ensures dependable operation and long service life, reducing the frequency of replacements and maintenance interventions.

This non-contacting displacement sensor is particularly suited for machinery condition monitoring, predictive maintenance programs, and automated process control. The ability to measure displacement without contact minimizes mechanical wear, eliminates friction-related errors, and enhances overall measurement accuracy. With its high-resolution output, it delivers consistent and linear performance, supporting both real-time monitoring and precise control in automated systems.

The SD-081/3/075/10/0/0/169 model features a design that allows flexible mounting options, enabling easy integration into existing setups. Its robust threaded body ensures secure installation, while its standard electrical connections make it compatible with a wide range of industrial control and monitoring equipment.

In rotating machinery applications, the sensor can detect early signs of imbalance, misalignment, or wear, allowing operators to address issues before they lead to costly downtime. In structural monitoring scenarios, it helps track changes in alignment, expansion, or deformation over time.

Its advanced sensing technology ensures immunity to many forms of environmental interference, providing stable performance in harsh industrial settings. Maintenance teams benefit from the real-time, reliable data generated by the Bruel-Kjaer SD-081/3/075/10/0/0/169, which improves decision-making and contributes to safer, more efficient operations.

From turbine monitoring to precision automation, this non-contacting displacement sensor stands out for its durability, accuracy, and adaptability. The Bruel-Kjaer SD-081/3/075/10/0/0/169 is an investment in operational efficiency, helping to extend equipment lifespan, reduce maintenance costs, and optimize industrial processes.

Technical Overview

The Brüel & Kjær Vibro SD-081/3/075/10/0/0/169 is a member of the SD-08x family of eddy-current displacement sensors, used for continuous non-contact measurement of radial shaft vibration and axial position on rotating machinery. Per the manufacturer’s shared SD-08x family datasheet (SD08xdef.pdf), sensors in this series provide a confirmed linear measuring range of 1.2 to 4.7 mm, a frequency response from 0 to 10,000 Hz, and an operating temperature range of −30°C to +180°C at the probe tip, making the family suitable for demanding high-temperature bearing housing locations found on steam turbines and process compressors. The SD-08x sensors are designed to comply with API 670 and DIN 45670 standards for machinery protection instrumentation, and are used in conjunction with a matched oscillator-demodulator unit — typically an OD-081 or OD-083 — which converts the probe’s raw electromagnetic gap signal into a linear, temperature-compensated DC voltage output for use by a monitoring system such as VIBROCONTROL or VC-6000.

The long order-code suffix on this specific part number (/3/075/10/0/0/169) encodes configuration details such as cable length, connector style, and mounting thread specific to the exact unit ordered, consistent with how Brüel & Kjær Vibro structures its eddy-current sensor part numbers across the SD-08x range. Seven Star LLC’s research confirmed the family-level specifications above from the manufacturer’s official shared datasheet, but the precise meaning of each individual segment in this particular trailing suffix was not independently confirmed from a directly accessible ordering table; a probable inference is that the segments correspond to cable length and connector/thread configuration, consistent with the general SD-08x ordering-code structure, but Seven Star LLC states this explicitly as an inference rather than a confirmed fact. Customers should provide the full existing part number when ordering so this can be cross-checked against the manufacturer’s complete ordering guide before shipment.

Applications

SD-08x family sensors are installed on radial and axial bearings of critical turbomachinery — steam turbines, gas turbines, centrifugal compressors, and large pumps — where continuous API 670-compliant vibration and position monitoring is required. The extended high-temperature rating of this family makes it particularly suited to bearing locations close to hot process equipment or turbine casings, where standard-temperature sensors would be unsuitable.

Why Seven Star LLC

Ordering the correct eddy-current sensor variant for a specific machine train requires matching the exact probe length, range, temperature rating, and connector configuration to the existing installation or new design specification. Seven Star LLC works directly with customers across Oman and the GCC to confirm every element of the ordering code — including any suffix segments not fully documented in publicly accessible manufacturer literature — against Brüel & Kjær Vibro’s complete records before finalizing a quotation, so the delivered sensor matches the customer’s application without costly reordering delays.

Request a Quote for Bruel-Kjaer -SD-081/3/075/10/0/0/169

Contact Seven Star LLC with your machine train details and existing sensor part number to receive a verified quotation for the Brüel & Kjær Vibro SD-08x eddy-current displacement sensor family, including the SD-081/3/075/10/0/0/169 configuration. Our technical team supports full ordering-code verification before shipment.

Ordering Notes

Please supply the full trailing order code, the paired oscillator part number (OD-081 or OD-083), and the intended bearing housing temperature when requesting a quotation, so Seven Star LLC can confirm the exact cable length, connector, and mounting configuration against Brüel & Kjær Vibro’s complete ordering documentation before your order ships.
