Brand: Axis

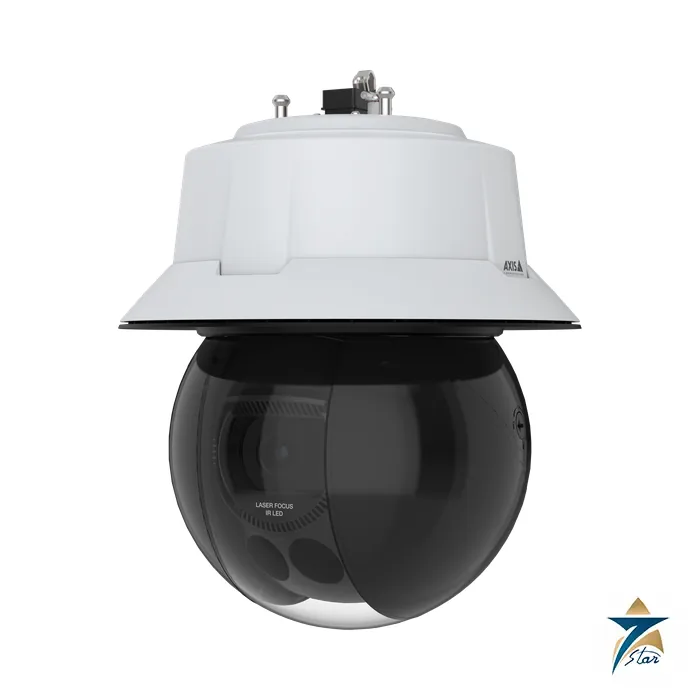

Axis Q6355-LE AI-Powered 2 MP PTZ Camera with Laser Focus
Description
A fast PTZ camera with laser focus for low-light sites
The Axis Q6355-LE is a 2 MP pan-tilt-zoom camera built around a light-sensitive 1/2 inch sensor with 31x optical zoom (6.91 to 214.64 mm, F1.36 to F4.6). Laser focus and a zoom speed of under one second between any two zoom values let it reach and sharpen a target quickly. It runs on the ARTPEC-9 chip, which Axis says allows more demanding edge analytics, and supports AV1 in addition to H.264 and H.265 through Zipstream.
The housing is rated IP66, IP67, NEMA 4X and IK10, and NEMA TS 2 compliance allows operation up to a maximum temperature of 74 degC. OptimizedIR with 850 nm LEDs reaches 300 m or more depending on the scene. Pan speed goes up to 550 degrees per second and the camera can cover 372x total zoom when optical and digital zoom are combined. Two variants are listed: the standard model and an NM variant sold without the midspan.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Axis Communications, AXIS Q6355-LE PTZ Camera; variants Q6355-LE and Q6355-LE NM (midspan not included) |
| Image sensor | 1/2 in. progressive scan CMOS |
| Lens | Varifocal 6.91 to 214.64 mm, F1.36 to F4.6; horizontal field of view 60.6 to 2.0 degrees; vertical 36.5 to 1.1 degrees; laser focus, autofocus, P-iris |
| Zoom | 31x optical, 12x digital, 372x total; zoom speed under 1 s between any zoom values |
| Pan / tilt | Pan 360 degrees endless, 0.05 to 550 deg/s; tilt +20 to -90 degrees, 0.05 to 500 deg/s |
| PTZ functions | 300 presets, guard tour (max 100), tour recording (max 10, 16 min each), quick-zoom, nadir flip, speed dry |
| Minimum illumination | Color 0.06 lux, B/W 0.001 lux at 30 IRE, F1.36; 0 lux with IR on |
| Resolution / frame rate | 1920 x 1080 to 320 x 180; up to 50/60 fps in all resolutions |
| System on chip / memory | ARTPEC-9 with DLPU; 4096 MB RAM, 8192 MB flash |
| Video compression | AV1, H.264, H.265, Motion JPEG; Axis Zipstream; low-latency mode |
| Image functions | Forensic WDR up to 120 dB, Lightfinder, EIS, defogging, 100 polygon privacy masks, scene profiles |
| Analytics included | AXIS Object Analytics (humans, vehicles; up to 10 scenarios), Image Health Analytics, Live Privacy Shield, Scene Metadata, Video Motion Detection, OSDI Zone, autotracking 2, advanced gatekeeper; License Plate Verifier supported |
| Integration | ONVIF Profiles G, M, S, T; VAPIX; AXIS Camera Application Platform |
| IR illumination | OptimizedIR 850 nm; range 300 m or more depending on the scene; removable IR-pass filter |
| Environmental | IP66, IP67, NEMA 4X, NEMA TS 2 (2.2.7-2.2.9), IK10, ISO 12944-6 C5, ICC-ES AC156; wind load 60 m/s sustained |
| Casing | Repaintable aluminium, white NCS S 1002-B, hard-coated polycarbonate clear dome with Sharpdome technology |
| Power | PoE IEEE 802.3bt Class 6; typical 13 W (no IR), max 51 W; low-power profile typical 13 W, max 30 W; power profiles and power meter |
| Operating / weight | Maximum 74 degC per NEMA TS 2; arctic start-up to -40 degC; 10 to 100% RH; 4400 g |
| Included | Installation guide, Windows decoder 1-user license, 90 W midspan (not in NM variant), IP66 network connector, repaint template |
| Manufacturer Warranty | 5 years |
Q6355-LE or Q6225-LE, and what to plan around it
Both the Q6355-LE and the Axis Q6225-LE offer 1080p and 31x zoom with the same 6.91 to 214.64 mm lens range. The Q6355-LE is the newer ARTPEC-9 design with laser focus, AV1, faster pan and tilt and a lighter 4.4 kg body, while the Q6225-LE is rated to MIL-STD-810G with a 400 m or more IR range. Choose according to whether the site needs fast target acquisition and newer analytics or the heavier military-style specification.
Power is the main installation point. The camera needs 802.3bt Class 6 (up to 51 W at full power, 30 W in the low-power profile), and the standard variant includes a 90 W midspan. Buy the NM variant only if the switch already supplies the required power. Axis lists hard-coated clear and smoked domes and a 90 W connectivity midspan as optional accessories.
Where overview and detail are both needed, pair this PTZ with a fixed camera such as the Axis P1465-LE. In an enquiry state the variant (with or without midspan), the mount, the cable length and the video management system.
Related Axis PTZ cameras
The three PTZ models below share a 31x zoom class. Compare the datasheets for processor, IR range and power requirement.
| Model | Description |
|---|---|
| AXIS Q6355-LE | This page: 2 MP PTZ, 31x, ARTPEC-9, laser focus |
| AXIS Q6225-LE | 2 MP PTZ with MIL-STD-810G and IR to 400 m, listed on this site |
| AXIS Q6315-LE | 1080p PTZ with 31x zoom, listed on this site |
Documents and quotation
The attached Axis datasheet carries all PTZ, analytics and environmental details. Add the variant, mounting, accessories and VMS to your request for quotation. Related products: CCTV and security products.
Datasheets & Documents
- Datasheet Axis Q6355-LE datasheet (manufacturer, EN) Download
Reviews (0)
About brand
Axis Communications is a Swedish manufacturer of network video and security products, founded in 1984 and headquartered in Lund, Sweden, and part of the Canon Group. Its range covers network cameras, including explosion-protected and thermal models, together with radar, audio, intercom, access control and video management products.
Seven Star LLC is an independent supplier in Muscat. We list Axis cameras and devices for plant, site and facility security projects in Oman and the GCC.
Axis product series
Fixed cameras include the P1465-LE bullet, the P3265-LVE dome and the Q1656-LE box camera, and PTZ cameras include the Q6315-LE, Q6225-LE and the AI-based Q6355-LE. For hazardous areas there are the XFQ1656 explosion-protected box camera, the Q1961-XTE thermal camera and the P1468-XLE 4K bullet for zone 2 and division 2, plus the XC1311 explosion-protected horn speaker.
Detection and access products include the Q2101-TE thermometric camera, the Q1656-DLE radar-video fusion camera, the D2110-VE and D2210-VE security radars, the I8116-E and I8016-LVE video intercoms, the A8207-VE door station and the C1310-E horn speaker.
Where Axis products are used
Process plants, tank farms, substations, ports, yards, utilities and commercial buildings, where cameras, radar and speakers protect perimeters, gates and process areas and feed a video management system through ONVIF or the Axis API. Thermometric cameras also monitor equipment temperatures.
Ordering Axis products: what we need
State the model and part number, the variant, mounting accessories, PoE class or power supply, hazardous-area classification where relevant, and the video management software in use.
Browse Axis products by category: CCTV & Security.
Related products
Frequently Asked Questions
What zoom does the Axis Q6355-LE have?
31x optical zoom (6.91 to 214.64 mm) plus 12x digital, for 372x total zoom.
Which processor does it use?
The ARTPEC-9 system on chip with a deep learning processing unit and 4096 MB RAM.
What video codecs are supported?
AV1, H.264, H.265 and Motion JPEG, with Axis Zipstream for AV1, H.264 and H.265.
How is the Q6355-LE powered?
By PoE IEEE 802.3bt Class 6; maximum 51 W at full power or 30 W in the low-power profile.
What is the variant difference?
The NM variant is supplied without the 90 W midspan that comes with the standard Q6355-LE.
