Brand: Axis
Axis I8016-LVE Anti-Ligature Network Video Intercom with IR
Description
A robust video intercom for demanding entrances
The Axis I8016-LVE is a compact, vandal-resistant network video intercom for two-way communication, video identification and remote entry control. The casing is stainless steel, zinc and plastic, rated anti-ligature, IP66/IP69, NEMA 4X and IK10, so it suits locations where a plastic panel would not survive, such as prisons, transport sites or exposed industrial gates.
The camera is a 5 MP 1/2.7 inch sensor with a 1.95 mm lens and a 150 degree horizontal field of view. Invisible 940 nm IR LEDs provide night vision, and forensic WDR up to 120 dB depending on the scene handles bright doorways. The audio path has echo cancellation and noise reduction, a built-in speaker with 84 dB at 0.5 m, and SIP for IP phones and PBX systems. ARTPEC-7 provides on-device processing.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Axis Communications, AXIS I8016-LVE Network Video Intercom |
| Image sensor / lens | 1/2.7 in. progressive scan RGB CMOS; 1.95 mm, F2.2; field of view 150 degrees horizontal, 117 degrees vertical; M12 mount, fixed iris |
| Minimum illumination | Color 0.3 lux at 50 IRE, F2.2; B/W 0.00 lux with IR illumination on |
| Night vision | Power-efficient long-life 940 nm IR LEDs; automatically removable IR-cut filter |
| System on chip / memory | ARTPEC-7; 2048 MB RAM, 512 MB flash |
| Video | H.264 Baseline, Main, High; H.265 Main; Motion JPEG; up to 30/25 fps in all resolutions; forensic WDR up to 120 dB |
| Audio | Two-way full duplex, echo cancellation and noise reduction; line in and out; built-in microphone and speaker; speaker 78 dB at 1 m, 84 dB at 0.5 m |
| Audio encoding | 24-bit LPCM, AAC-LC 8/16 kHz, G.711, G.726, Opus |
| SIP | SIP with secondary server, IPv6, SRTP, SIPS, TLS, DTMF, NAT (ICE, STUN, TURN); peer to peer or via SIP/PBX; codecs PCMU, PCMA, Opus, L16, speex, G.726-32 |
| Integration | ONVIF Profiles G, M, S, T; VAPIX; ACAP; Axis door control |
| Analytics | AXIS Image Health Analytics and AXIS Barcode Reader included; Video Motion Detection, Motion Guard, Fence Guard, Loitering Guard supported |
| I/O and lock | Relay 30 V, 0.7 A; 400 mA supply and one relay as listed; AXIS A9801 Security Relay available as accessory |
| Casing | Anti-ligature, stainless steel, zinc and plastic; IP66/IP69, NEMA 4X, IK10; black NCS S 9000-N; repaintable |
| Mounting | Recessed in US 2-gang or 4 in. square boxes or AXIS TI8202 Recessed Mount; wall mount with AXIS TI8602; conduit with TI8603 |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 3, typical 4.7 W, max 12.7 W |
| Operating temperature | -40 to 60 degC; start-up at -40 degC; humidity 10 to 100% RH (condensing) |
| Dimensions / weight | 124 x 124 mm face; 900 g |
| Optional accessories | AXIS TI8202, TI8602, TI8603, TI8902 Glass Replacement Kit, TI8901 Face Plate Replacement, A9801 Security Relay, TI8904 Induction Loop |
| Manufacturer Warranty | 5 years |
Where this intercom fits, and what to settle first
The I8016-LVE fits entrances where robustness and cleanability matter more than a keypad or card reader. The datasheet lists a call, camera and relay device and does not list a keypad or card reader, so credentials would be handled by a separate reader and controller. Its IP69 rating allows high-pressure wash-down, and the anti-ligature design removes points that could be used to attach cords.
Mounting is a design decision: recessed in a US 2-gang or 4 in. square box, in the Axis recessed mount, or on the surface with the wall mount and optional conduit adapter. Confirm the box size on site before ordering. A TI8904 induction loop accessory is listed for hearing-aid users, and glass and face plate replacement kits are listed for damaged units.
Compare it with the Axis P1465-LE bullet camera when the entrance also needs a wider overview, and with the I8116-E when a slimmer mullion intercom with two microphones is required. In your enquiry state the SIP system, the lock current, the mounting box and the quantity.
Related Axis entrance devices
Select by panel style, reader and keypad needs, and the environment at the door.
| Model | Description |
|---|---|
| AXIS I8016-LVE | This page: anti-ligature, IK10 video intercom |
| AXIS I8116-E | Mullion network video intercom with 5 MP camera, listed on this site |
| AXIS A8207-VE Mk II | Network video door station with keypad and RFID reader, listed on this site |
Documents and quotation
The attached Axis datasheet lists SIP details, accessories and mounting options. Include the lock type, mounting method, SIP platform and quantity in your request for quotation. Related products: CCTV and security products.
Datasheets & Documents
- Datasheet Axis I8016-LVE datasheet (manufacturer, EN) Download
Reviews (0)
About brand
Axis Communications is a Swedish maker of network video and security products, founded in 1984 in Lund by Martin Gren, Mikael Karlsson and Keith Bloodworth. It started with print servers and protocol converters for IBM environments and launched one of the first network cameras in 1996. Since 2015 Axis has been part of the Canon Group, run as a separate company from its Lund headquarters.
Seven Star LLC is an independent supplier in Muscat. We list Axis cameras and devices for plant, site and facility security projects in Oman and the GCC.
Axis company profile
| Founded | 1984, Lund, Sweden |
|---|---|
| Founders | Martin Gren, Mikael Karlsson and Keith Bloodworth |
| First products | Protocol converters and printer interfaces for IBM mainframe and minicomputer environments |
| Headquarters | Lund, Sweden |
| Ownership | Canon Group since 2015; Axis operates as a separate company with its own management |
| Product families | Fixed, PTZ, panoramic and thermal network cameras, explosion-protected cameras for hazardous areas, radar, network audio, intercoms, access control and AXIS Camera Station video management |
Milestones
- 1984: Axis is founded in Lund.
- 1996: The AXIS NetEye 200, one of the first network cameras, is launched.
- 2015: Canon makes an offer for all Axis shares; the Axis board accepts and Axis joins the Canon Group.
Axis product series
Fixed cameras include the P1465-LE bullet, the P3265-LVE dome and the Q1656-LE box camera, and PTZ cameras include the Q6315-LE, Q6225-LE and the AI-based Q6355-LE. For hazardous areas there are the XFQ1656 explosion-protected box camera, the Q1961-XTE thermal camera and the P1468-XLE 4K bullet for zone 2 and division 2, plus the XC1311 explosion-protected horn speaker.

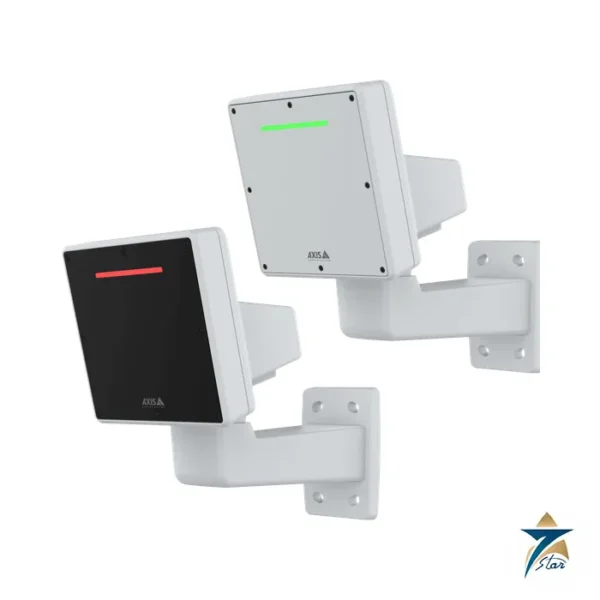

Detection and access products include the Q2101-TE thermometric camera, the Q1656-DLE radar-video fusion camera, the D2110-VE and D2210-VE security radars, the I8116-E and I8016-LVE video intercoms, the A8207-VE door station and the C1310-E horn speaker.
Where Axis products are used
Process plants, tank farms, substations, ports, yards, utilities and commercial buildings, where cameras, radar and speakers protect perimeters, gates and process areas and feed a video management system through ONVIF or the Axis API. Thermometric cameras also monitor equipment temperatures.
Axis products we list
Ordering Axis products: what we need
State the model and part number, the variant, mounting accessories, PoE class or power supply, hazardous-area classification where relevant, and the video management software in use.
Facts checked against published Axis company histories and the 2015 Canon offer, October 2026.
Browse Axis products by category: CCTV & Security.
Related products
Frequently Asked Questions
What protection does the Axis I8016-LVE have?
Anti-ligature stainless steel casing rated IP66/IP69, NEMA 4X and IK10.
What camera does it have?
A 5 MP sensor with a 1.95 mm lens, 150 degrees horizontal field of view and invisible 940 nm IR LEDs.
Does it support SIP?
Yes. SIP with SRTP, SIPS and TLS for peer-to-peer or PBX integration, with Opus, G.711 and G.726 codecs.
How is it powered?
By PoE 802.3af/802.3at Type 1 Class 3, typical 4.7 W, maximum 12.7 W.
What is the operating temperature range?
-40 to 60 degC at 10 to 100% RH condensing humidity.
