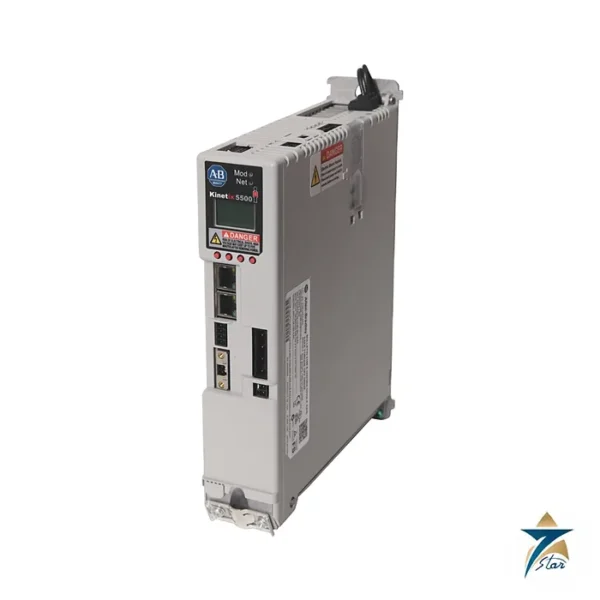

Allen-Bradley 2198-H070-ERS2 Kinetix 5500 14.6 kW Servo Drive
Description
Kinetix 5500 2198-H070-ERS2: 23.0 A rms, integrated STO
2198-H070-ERS2 is the Allen-Bradley Kinetix 5500 catalog number with 23.0 A rms of continuous output current and a one-second peak of 57.5 A rms. Power ratings printed by Rockwell are 14.6 kW at 480V three-phase and 7.0 kW at 230V three-phase. This is the integrated safe torque-off variant, built for Integrated Motion over EtherNet/IP.
It is the top of the Kinetix 5500 range at 14.6 kW (480V) and the only frame 3 drive, which also gives it the 60 A inrush figure. Rockwell gives the input as 195 to 264V three-phase 240V or 324 to 528V three-phase 480V at 47 to 63 Hz and limits each drive to one power cycle per minute.
Technical specifications
| Parameter | Specification |
|---|---|
| Catalog number | 2198-H070-ERS2 |
| Family | Allen-Bradley Kinetix 5500, EtherNet/IP |
| Safe torque-off | Integrated |
| AC input | 195-264V rms 3-phase (240V nom); 324-528V rms 3-phase (480V nom) |
| Main AC input current (240V) | 23.7 A three-phase |
| Output power | 14.6 kW at 480V; 7.0 kW at 230V three-phase |
| Output current | 23.0 A rms / 32.5 A 0-pk |
| Peak current (1 s) | 57.5 A rms / 81.3 A 0-pk |
| Frame width / weight | 85.2 mm (3.35 in.) / 4.1 kg (9.0 lb) |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Control power (24V DC) | 1.3 A, non-brake motors |
| Bandwidth | Velocity loop 300 Hz max; current loop 1000 Hz |
| Max inrush (0-pk) | 60 A |
Integration with Logix controllers
The Kinetix 5500 is an Integrated Motion on EtherNet/IP drive for applications from 0.2 to 14.6 kW and 1.4 to 32.5 A zero-to-peak. The installation instructions name ControlLogix 5570 and 5580, GuardLogix 5570, CompactLogix 5370 and Compact GuardLogix 5370 controllers, configured in Studio 5000 Logix Designer.
Programming, tuning and diagnostics happen in the same project as the rest of the machine logic, and the drive reports peak-current duration of 1.0 second for its overload window.
Numbers worth checking before you quote
The one-second peak of 57.5 A rms is roughly 2.50 times the 23.0 A continuous value (derived); axes with long accelerations should be checked against the duty-cycle charts in the datasheet. Allow 1.3 A of 24V DC control power per drive, 3.3 A when a 2 A motor brake is fitted, and an inrush of 3.0 A lasting less than 30 ms.
Upstream devices see up to 60 A of inrush (zero-to-peak) and a 71.1 A peak AC input at 240V three-phase, as printed in KNX-TD003.
Ordering and documents
Use the complete catalog number 2198-H070-ERS2; the suffix tells you the STO type, so confirm it matches the safety design. Motors, motor cables, the 24V supply, filters and shunt or capacitor modules are ordered separately. The linked document is 2198-IN001, and the ratings are taken from Rockwell publication KNX-TD003N dated June 2026.
We are an independent supplier in Muscat; please verify all values with the current Rockwell literature before you order.
When asking about 2198-H070-ERS2, please include the motor catalog numbers, the cable lengths, the supply voltage, whether the machine uses the hardwired or the integrated safety function, and the network architecture. Servo systems are assembled from several catalog numbers, and a complete list avoids delays and mismatched parts (Kinetix 5500 servo drive, 14.6 kW at 480V, 23.0 A rms, integrated STO, EtherNet/IP).
Browse more items in Servo Drives on our site, or send us the part number for a quotation.
