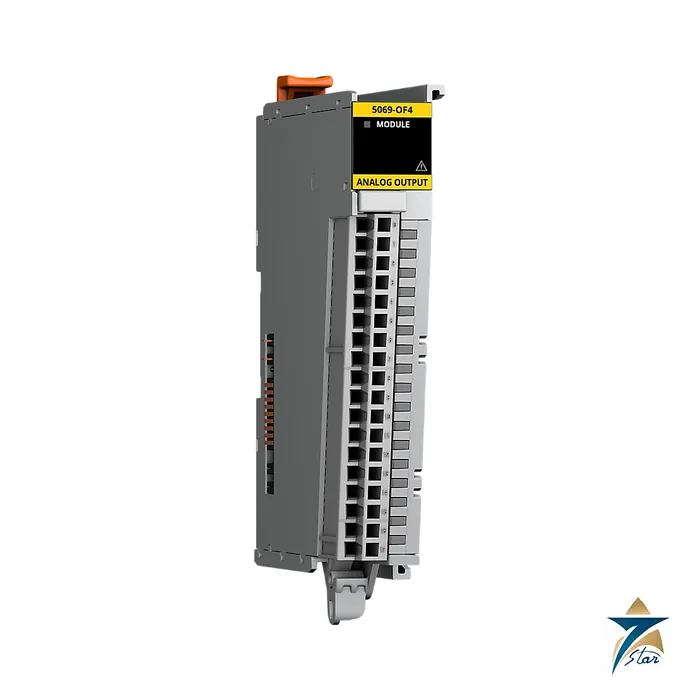

Allen-Bradley 5069-OF4 Compact 5000 Analog Output Module

Four 16-bit voltage or current outputs for Compact 5000 racks

The Allen-Bradley 5069-OF4 is a four-channel analog output module that can be set to voltage (plus or minus 10 V, 0 to 10 V, 0 to 5 V) or current (0 to 20 mA, 4 to 20 mA) for each channel. Resolution is 16 bits, and data is passed as IEEE 32-bit floating point.

It is used for control valve positioners, drive speed references and other analog actuators in CompactLogix 5380 systems. The sister module 5069-OF8 provides eight channels in the same width.

Technical specifications

Diagnostics and wiring

Open-circuit detection applies to current outputs and short-circuit detection to voltage outputs. Shielded cable is required on output ports (conductor category 2), . User calibration is optional on top of the factory calibration. The module reports status through one green/red module indicator and four yellow/red channel indicators, and it passes module power on to the next module in the row, with a pass-through limit of 9.55 A at 18 to 32 V DC.

Selection notes

Four channels suit a valve or drive group in a machine, while eight channels in the 5069-OF8 reduce cost per point. If isolated channels with HART are required, the data lists the 5069-OF4IH instead, which is a separate catalog number. Confirm series, suffix and terminal block before ordering. Typical Gulf uses are valve positioners on gas and water skids, variable-speed drive references, and analog indicators where a CompactLogix 5380 controller is already specified.

Each channel is 16-bit and the module scan time for all four channels is 1.0 ms, with a step response of 18 us in voltage mode and 1 ms in current mode. Capacitive load is limited to 1 uF in voltage mode and inductive load to 1 mH in current mode, so check long cable runs.

Planning the analog output channels

Good analog design starts with a list of every actuator that needs a continuous signal and the type of signal it accepts. Valve positioners usually expect current signals, while many drive speed references and indicators accept either voltage or current. Because the 5069-OF4 lets each channel be configured independently, one module can serve a mixed group, but it is still worth grouping signals logically so that a channel fault or module replacement affects only one part of the process. Since the module has no channel-to-channel isolation, devices with separate supplies or earth references should be reviewed before they are wired to the same module, and the isolated 5069-OF4IH considered where the application calls for it.

• Record the signal type and range each receiving device expects.
• Check capacitive and inductive load limits against cable length and the connected device.
• Decide where open-circuit and short-circuit diagnostics should raise an alarm in the control system.
• Confirm the SA power budget for the rack, including this module’s SA current.

Wiring, configuration and commissioning

Use shielded cable for every output, as the technical data requires, and terminate the shield consistently according to the plant earthing practice. Keep analog cables away from drive output and power cables. In the controller project, set each channel’s range and the scaling to engineering units, and review with the process engineer what each actuator should do if a signal is lost, so the plant response is known in advance. During commissioning, drive each channel to several points across its range and measure the actual signal at the field device, not only at the terminal block, to confirm wiring and scaling. Factory calibration is normally adequate; user calibration can be added where the site quality system asks for it.

Checking the control loop

After wiring is verified, test the complete loop with the valve or drive responding: command the output, watch the actuator move, and compare its position or speed feedback with the command. Small discrepancies at this stage are much easier to correct than after start-up.

Gulf installation conditions

Compact 5000 racks in Oman and the GCC are often installed in skid panels and outdoor enclosures exposed to strong sun, dust and humid coastal air. The operating temperature and non-condensing humidity limits apply inside the panel, so enclosure cooling must be designed for summer conditions. Where corrosive or humid atmospheres are expected, the conformal coated 5069-OF4K listed in the technical data is worth considering. Keep enclosures closed, clean dust from the DIN rail area during shutdowns, and check terminal tightness periodically, since loose analog connections can cause drifting signals that are hard to trace.

RFQ checklist

• Catalog number, standard or K suffix, and quantity.
• Matching 5069-RTB terminal blocks.
• Whether 5069-OF8 or 5069-OF4IH modules are also required for other channels.

Documents and quotation

The linked Rockwell Automation technical data covers the full Compact 5000 I/O range and EtherNet/IP adapters. Browse PLC & I/O Cards for related modules. To request a quotation send the catalog number and quantity to Seven Star LLC, an independent supplier in Muscat.
