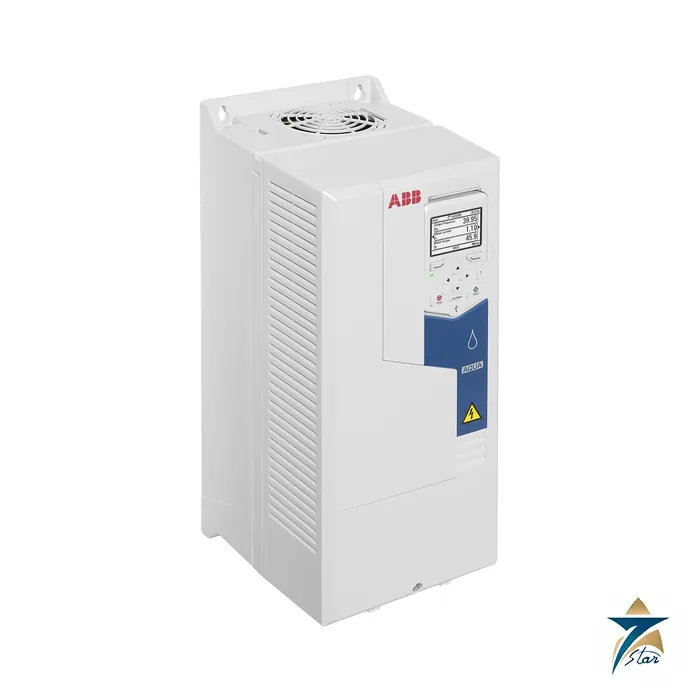

ABB ACQ580-01-12A7-4 Water Drive 5.5 kW 12.6 A

Name: ABB ACQ580-01-12A7-4 Water Drive 5.5 kW | Seven Star LLC
Brand: ABB
SKU: ACQ580-01-12A7-4

Description

ACQ580-01-12A7-4: 12.6 A for water and wastewater pumping

With 12.6 A nominal output current and 5.5 kW typical motor power, the ACQ580-01-12A7-4 is one rating of ABB’s ACQ580-01 water drive. It uses frame R1. At 5.5 kW it is the largest R1 rating, a common choice for small submersible and transfer pumps. Pump-specific control is built in, so the drive can run one pump or coordinate several without an external pump controller.

ABB has equipped the ACQ580 with pump-specific control: pump cleaning to clear impeller blockages, sleep boost to cut start-stop cycles, level control for filling or emptying tanks and sensorless flow and head calculation. Browse more sizes in AC drives or read the family overview on the ABB ACQ580 water and wastewater drive page.

Technical specifications

Parameter	Specification
Order type	ACQ580-01-12A7-4
Family and mounting	ACQ580 water series, 01 = wall-mounted
Mains voltage class	Three-phase 400 V class, code 4
Frame	R1
No-overload output at 400 V	5.5 kW, 12.6 A
Light duty (110% for 1 min)	5.5 kW, 12 A
Heavy duty (150% for 1 min)	4 kW, 9.4 A
Peak current at start	15.3 A (2 s at start)
Fuse recommendation	IEC 25 A 170M1561; UL 15 A JJS-15
Losses and cooling air	213 W; 43 m3/h; max. 59 dBA
Protection class	IP21 (UL Type 1), or IP55 (UL Type 12) via +B056
IP21 height, width, depth	373 x 125 x 223 mm, 4.6 kg
IP55 size and mass	403 x 128 x 233 mm, 4.8 kg

Light and heavy duty on 12.6 A

Compare the motor nameplate with 12 A first, since pumps are usually light-duty loads. If the application demands repeated high torque, switch to 9.4 A, giving 4 kW and an overload of about 14.1 A for one minute (derived from 150%). The nominal 12.6 A figure is for continuous loads with no overload, and 15.3 A is available for 2 seconds at start.

Allow for 213 W of losses and 43 m3/h of cooling air. Upstream, ABB lists 25 A fuses (170M1561) for IEC and 15 A JJS-15 for UL installations, and warns that full-speed fan noise can reach 59 dBA.

Dimensions for frame R1: IP21 373 x 125 x 223 mm at 4.6 kg; IP55 403 x 128 x 233 mm at 4.8 kg (heights include the gland box). With a main switch or C1 filter fitted, ABB lists the IP55 body at 403 x 128 x 255 mm and 5.4 kg.

Motor pairing: the catalogue’s SynRM selection guide matches this drive with 5.5 kW M3AL132SMA4 at 3000 rpm (12.1 A nominal, motor efficiency 92.8%, package efficiency 89.6%); 5.5 kW M3AL132SMA4 at 1500 rpm (11.7 A nominal, motor efficiency 93.7%, package efficiency 90.4%). Efficiency numbers describe that combination only and are calculated by ABB.

Options that change the order

The designation breaks into series ACQ580, construction 01, size 12A7 and voltage code 4. Without plus codes the drive is IP21 with the ACH-AP-H panel. ABB’s code list includes +P944 for removing the conduit box (R5-R9), +J429 for the ACH-AP-W Bluetooth panel, +J425 for the ACS-AP-I panel and +J424 for a blank cover instead of a panel.

The basic drive speaks Modbus RTU. Examples of fieldbus options with their MRP codes are Modbus/TCP FMBT-21 (+K491, 3AXD50000049964), PROFINET IO FPNO-21 (+K492, 3AXD50000192779) and DeviceNet FDNA-01 (+K451, ABB code 68469341); they install in the first option slot.

Across the family the catalogue specifies 5 to 95% humidity without condensation, 1% current derating per 100 m above 1000 m up to 4000 m, chemical-gas class C4 for the IP55 drive, control of induction, permanent magnet and synchronous reluctance motors and IE2 efficiency class to IEC 61800-9-2.

Source document and RFQ

The reference for every figure above is ABB catalogue 3AUA0000194172 (revision I, 27.9.2024), available from the document link. To request the ACQ580-01-12A7-4, give Seven Star LLC the motor data, voltage, enclosure and network; availability and lead time come with the quotation.

Before ordering, check the complete code with options, the motor current, site conditions and whether newer ABB documents change a rating.
