ABB ACQ580-01-026A-4 Water Drive 11 kW 25 A

Name: ABB ACQ580-01-026A-4 Water Drive 11 kW | Seven Star LLC
Brand: ABB
SKU: ACQ580-01-026A-4

Description

A 11 kW ACQ580-01 for 400 V pump motors

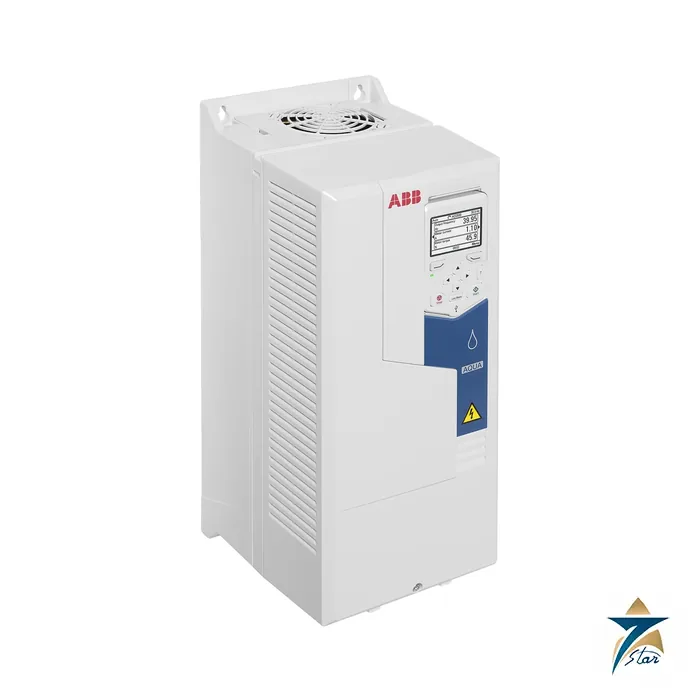

With 25 A nominal output current and 11 kW typical motor power, the ACQ580-01-026A-4 is one rating of ABB’s ACQ580-01 water drive. It uses frame R2. At 11 kW it completes frame R2 and covers many wastewater lift pumps. Pump-specific control is built in, so the drive can run one pump or coordinate several without an external pump controller.

Typical functions in the ACQ580 pump control program are multi-pump control, cavitation control, pump cleaning to clear impeller blockages and sleep boost to cut start-stop cycles. Other ratings sit in AC drives, with the series description on the ABB ACQ580 page.

Technical specifications

Parameter	Specification
Type designation	ACQ580-01-026A-4
Series / construction	ACQ580 / 01 = wall-mounted drive for water
Supply voltage	3-phase, 380 to 480 V (code 4)
Frame size	R2
Nominal rating (no overload)	11 kW, 25 A
Light-duty use	11 kW, 23.8 A
Heavy-duty use	7.5 kW, 17 A
Maximum output current	30.6 A (2 s at start)
Recommended input fuses	IEC 40 A 170M1563; UL 30 A JJS-30
Heat dissipation / air flow	383 W; 101 m3/h; max. 64 dBA
Enclosure	IP21 / UL Type 1; IP55 / UL Type 12 with +B056
IP21 dimensions (H x W x D)	473 x 125 x 229 mm, 6.6 kg
IP55 dimensions and weight	503 x 128 x 239 mm, 6.8 kg

Overload data for the ACQ580-01-026A-4

Three ratings are published. Nominal use is 25 A for 11 kW. Light duty is 23.8 A for 11 kW with 110% overload for one minute in ten (about 26.2 A, derived). Heavy duty is 17 A for 7.5 kW with 150% for the same minute (about 25.5 A, derived). The maximum output current is 30.6 A, available for 2 seconds at start. Ratings apply up to +40 degrees C in IP21 or IP55.

For protection ABB recommends 40 A IEC fuses of type 170M1563 (aR or uR) or, for UL, 30 A fuses of type JJS-30. Typical heat loss is 383 W and the cooling air flow 101 m3/h, with a maximum noise level of 64 dBA at full fan speed. Cabinet designers should plan to remove that heat.

The frame R2 IP21 housing is 125 mm wide and 229 mm deep, 473 mm high with the gland box, and weighs 6.6 kg. The IP55 version is 503 x 128 x 239 mm at 6.8 kg. With a main switch or C1 filter fitted, ABB lists the IP55 body at 503 x 128 x 257 mm and 7.5 kg.

The IE5 SynRM guide in the catalogue pairs this type with 11 kW M3AL132SMC4 at 3000 rpm (24.5 A nominal, motor efficiency 94%, package efficiency 90.9%); 11 kW M3AL132SMC4 at 1500 rpm (23.8 A nominal, motor efficiency 94.2%, package efficiency 90.9%); 11 kW M3BL160MLA4 at 1500 rpm (24.2 A nominal, motor efficiency 94%, package efficiency 90.8%). These are calculated package efficiencies, useful for comparison rather than a commitment for a different motor.

Decoding the ordering code

An order starts with ACQ580-01-026A-4: 01 means wall-mounted, 026A is the rating field, 4 the voltage class. Add plus codes only where needed, such as +L537 for the ATEX-certified CPTC-02 (needs +Q971), +P932 for a 60-month extended warranty, +B056 for IP55 / UL Type 12 and +F278 for an integrated main switch (R1-R5).

Communication: Modbus RTU is built in. For plant networks, ABB’s table gives EtherNet/IP FEIP-21 (+K490, 3AXD50000192786), Modbus/TCP FMBT-21 (+K491, 3AXD50000049964) and PROFINET IO FPNO-21 (+K492, 3AXD50000192779). The fieldbus module sits in slot one and I/O extensions in slot two.

Data worth checking against the site: a 24 V DC auxiliary output of 250 mA, -15 to +50 degrees C operation with derating from +40, 5 to 95% humidity without condensation, 1% current derating per 100 m above 1000 m up to 4000 m and chemical-gas class C4 for the IP55 drive.

Documentation and quotation

Seven Star LLC can quote the ACQ580-01-026A-4 from Muscat. Attach the motor nameplate and supply details to your RFQ. The linked ABB ACQ580 catalogue (3AUA0000194172, revision I, 27.9.2024) is the source of the ratings, fuses, dimensions and codes here.

Please confirm the ordering code, enclosure, fieldbus option and the derating for temperature and altitude before you order.
