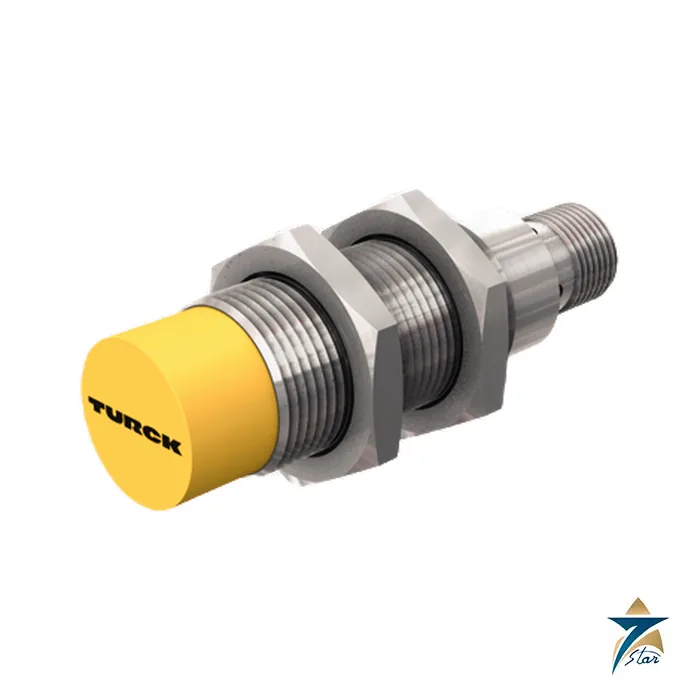

Turck TN-M18-IOL-H1141 HF RFID Read/Write Head IO-Link M18
Description
Why choose the TN-M18-IOL-H1141
TN-M18-IOL-H1141 is an M18 x 1 threaded-barrel HF RFID read/write head with an IO-Link interface, 13.56 MHz ISO 15693 operation, a maximum read/write distance of 36 mm and an M12 x 1 male connector.
Feature list printed by the manufacturer: Process value in 32 bit IO-Link telegram; Threaded barrel, M18 x 1; M12 × 1 male connector, 4-pin; Chrome-plated brass.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | TN-M18-IOL-H1141 |
| Ident number | 100000974 |
| Operating voltage U | B |
| DC rated operating current I | e |
| Data transfer | Inductive coupling |
| Technology | HF RFID |
| Operating frequency | 13.56 MHz |
| Radio communication and protocol standards | ISO 15693 |
| Read/Write distance max. | 36 mm |
| Wire break/reverse polarity protection | yes |
| Output function | 4-wire, Read/Write, IO-Link |
| Interface | IO-Link |
| Fieldbus Protocol | IO-Link |
| Mounting conditions | Non-flush |
| Ambient temperature | -25…+70 °C |
| Design | Threaded barrel, M18 x 1 |
| Housing diameter | 18 mm |
| Housing material | Metal, CuZn, Chrome-plated |
| Active area material | Plastic, PBT, yellow |
| Vibration resistance | 55 Hz (1 mm) |
| Shock resistance | 30 g (11 ms) |
| Protection class | IP67 |
| Electrical connection | Connector, M12 × 1 |
| MTTF | acc. to SN 29500 (Ed. 99) 20 °C |
| Power-on indication | LED, Green |
| Included in delivery | Accessories |
| Packaging unit | 1 |
| IO-Link specification | V 1.1 |
| IO-Link port type | Class A |
| Programming | IO-Link, PACTware, parameterization tag |
| Communication mode | COM 2 (38.4 kBaud) |
| Process data width | 32 bit |
| Minimum cycle time | 14.4 ms |
| Function pin 4 | IO-Link |
| Transmission rate | 26.5 kbps |
| Diameter active area B | Ø 18 |
Using it in the field
IO-Link means the head plugs into a standard master port and sends the tag data as 32-bit process data, so RFID can be added without a dedicated interface module. Parameterisation is possible via IO-Link, PACTware or a parameterisation tag. The compact M18 housing fits the small-parts tooling and carrier tracking that the larger Q80 head cannot reach, but the shorter read range means the tag must pass close to the active face. The datasheet gives a minimum cycle time of 14.4 ms and a transmission rate of 26.5 kbps, which together set how quickly tag data can be exchanged while a carrier passes the head, so allow conservative transport speeds. Protection class is IP67 and the ambient range is -25 to +70 C, with non-flush mounting listed, meaning the active face needs a metal-free zone around it.
Installation hint: mount the head so tags pass through the read zone at the speed and distance you tested, keep the face clear of surrounding metal, and separate the head from other HF equipment to avoid interference. Fix the cable and connector so vibration does not stress them.
Ordering code and what to confirm
TN is the Turck HF RFID read/write head family; the housing token (Q80, M18, M30) matches the design row (Threaded barrel, M18 x 1), IOL marks IO-Link versions and EX marks the version with hazardous-area marking. Ident number 100000974 identifies this exact head.
Points to confirm with us before ordering: any hazardous-area approval conditions, the interface (IO-Link or 4-wire), the tag type and read/write distance for your application, the supply voltage, and mounting space and metal environment. Everything in the table comes from the datasheet as published, so the maker document is the final reference.
Documents and quotation
Datasheet: PDF. It is the manufacturer’s own document for TN-M18-IOL-H1141, kept unaltered. To request pricing and delivery, give us the full code TN-M18-IOL-H1141, the quantity and your project reference. Seven Star LLC supplies as an independent supplier in Muscat. Related items sit in Industrial Communications.
