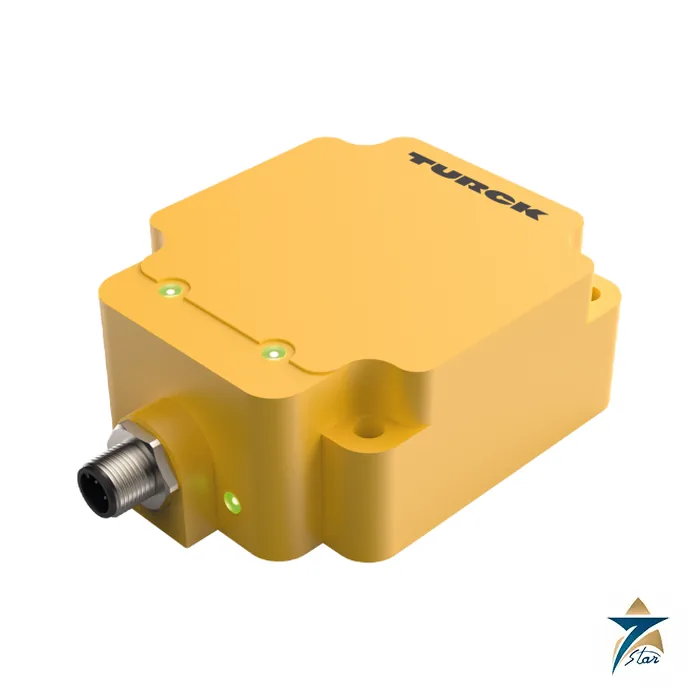

Turck TN-Q80-H1147-EX HF RFID Read/Write Head Q80 ATEX Zone 2/22
Description
TN-Q80-H1147-EX at a glance
TN-Q80-H1147-EX is a rectangular Q80 HF RFID read/write head for explosion hazardous areas, operating at 13.56 MHz to ISO 15693, with a datasheet read/write distance of up to 118 mm and a device marking for category 3 gas and dust zones.
Headline features from the datasheet: Plastic, PBT-GF30-VO; Rectangular, height 40 mm; Active face on top.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | TN-Q80-H1147-EX |
| Ident number | 7030302 |
| Mounting conditions | Non-flush, flush mountable |
| Ambient temperature | -25…+70 °C |
| Device marking | É II 3G Ex nA II T4 II 3D Ex tD A22 IP67 |
| Approval acc. to | BVS 09 ATEX E 122 X |
| Operating voltage | 10…30 VDC |
| DC rated operational current | ≤ 80 mA |
| Data transfer | inductive coupling |
| Operating frequency | 13.56 MHz |
| Radio communication and protocol standards | ISO 15693 |
| Read/Write distance max. | 118 mm |
| Output function | 4-wire, Read/Write |
| Suitable for bus mode on TBEN-* | no |
| Design | Rectangular, Q80 |
| Housing material | Plastic, PBT-GF30-V0, Yellow |
| Active area material | Plastic |
| Electrical connection | Connector |
| Vibration resistance | 55 Hz (1 mm) |
| Shock resistance | 30 g (11 ms) |
| Protection class | IP67 |
| MTTF | 248 years acc. to SN 29500 (Ed. 99) 40 °C |
| Power-on indication | LED green |
| Included in delivery | SC-M12/3GD |
| Packaging unit | 1 |
Applications and selection notes
This head reads and writes passive HF tags on pallets, containers and tooling inside hazardous areas, using BVS 09 ATEX E 122 X as the approval reference. Marking is listed as II 3G Ex nA II T4 and II 3D Ex tD A22 IP67, which means zone 2 and zone 22 use, with the conditions of the certificate and Turck instructions applying. The 4-wire interface runs at 10 to 30 VDC and it is not suited to the TBEN bus mode, as the datasheet states. Hazardous-area RFID is typically used at loading, filling and maintenance points where containers or tools must be identified without a manual scan. The datasheet lists SC-M12/3GD under included in delivery, so plan the matching connection cable or cordset as a separate item. Read distance depends on tag size and mounting surroundings, so test the real tag in the installed position before the layout is frozen.
For commissioning, test with the actual tag type, record the read and write distances in both directions, and verify the data in the controller. Mounting on metal, tag orientation and transport speed change the practical distance considerably compared with the maximum in the datasheet.
Selection check before ordering
TN is the Turck HF RFID read/write head family; the housing token (Q80, M18, M30) matches the design row (Rectangular, Q80), IOL marks IO-Link versions and EX marks the version with hazardous-area marking. Ident number 7030302 identifies this exact head.
A short checklist before you order: any hazardous-area approval conditions, the supply voltage, mounting space and metal environment, the interface (IO-Link or 4-wire), and the tag type and read/write distance for your application. Specifications here are restated from the official datasheet and should be matched against the current maker revision.
Documents and quotation
Download the Turck datasheet for TN-Q80-H1147-EX and compare it with your drawing or loop data. Pricing and lead time are not shown on the page; Seven Star LLC, an independent supplier based in Muscat, quotes them on request. Quote the full type code TN-Q80-H1147-EX so the correct variant is offered. More related items are listed under Industrial Communications.
