Brand: Winsonic
Winsonic NE10005-008423 | EN50155 M12 PoE++ Unmanaged Switch
Description
Overview
The Winsonic NE10005-008423 is a rugged 10-port Gigabit PoE++ Ethernet switch from Winsonic’s EN50155 switch family, built for rolling stock, wayside cabinets and other installations exposed to shock, vibration, dust and moisture. All copper ports use M12 X-coded female connectors, which lock mechanically and remain sealed in high-vibration environments where RJ45 connectors can work loose.
Winsonic’s product page lists the NE10005-008423 as an unmanaged switch (IP65 10x1GE copper unmanaged PoE++ industrial switch). Other switches in the Winsonic EN50155 family, such as the Winsonic NE10003-208423, carry different part numbers. Customers who need managed functions such as VLAN, QoS, SNMP or ring redundancy should confirm the correct part number with us before ordering.
Key Features
- 10 x 10/100/1000Base-T copper ports with M12 X-coded female connectors
- 8 downlink ports with PoE/PoE+/PoE++ to IEEE 802.3af/at/bt
- Up to 15 W / 30 W / 90 W per port for 802.3af / at / bt devices
- Surge protection on network and power ports
- IP65-rated housing
- Designed for EN 50155 rolling-stock applications
Technical Specifications
| Parameter | Value |
|---|---|
| Part number | NE10005-008423 |
| Switch type | Unmanaged PoE++ industrial switch (per Winsonic product page) |
| Ports | 10 x 10/100/1000Base-T |
| Connectors | M12 X-coded female |
| PoE ports | 8 downlink ports, IEEE 802.3af/at/bt |
| PoE power per port | Up to 15 W (af) / 30 W (at) / 90 W (bt) |
| Surge protection, network ports | 6 kV common mode / 2 kV differential mode |
| Surge protection, power ports | 4 kV common mode / 2 kV differential mode |
| Ingress protection | IP65 |
| Railway standard | EN 50155 (switch family) |
Applications
- On-board Ethernet networks for rolling stock: CCTV, passenger information and Wi-Fi access points
- Wayside, tunnel and depot cabinets
- Ports, cranes and outdoor surveillance with PoE++ PTZ cameras
- Rugged edge networking at oil & gas, utility and industrial sites where vibration and dust are present
Why Seven Star LLC
Seven Star LLC represents Winsonic in the region and supplies its industrial switches across Oman and the GCC. Before quoting, we check the required PoE budget, M12 wiring and whether managed functions are needed, and confirm the matching Winsonic part number.
Winsonic NE10005-008423 FAQ
What is the Winsonic NE10005-008423?
A rugged 10-port Gigabit PoE++ unmanaged Ethernet switch from the Winsonic EN50155 family, for rolling stock, wayside cabinets and other high-vibration installations.
How many PoE ports and how much power?
8 downlink ports with PoE/PoE+/PoE++ per IEEE 802.3af/at/bt, up to 15 W, 30 W or 90 W per port.
What connectors and protection does it use?
10 x 10/100/1000Base-T ports with M12 X-coded female connectors, IP65 housing, and surge protection on network and power ports.
Is the NE10005-008423 a managed switch?
No. Winsonic lists it as an unmanaged switch. If you need VLAN, QoS, SNMP or ring redundancy, confirm the correct part number with us before ordering.
Is it EN 50155 rated?
It belongs to the Winsonic EN 50155 switch family designed for rolling-stock applications.
Request a Quote for Winsonic NE10005-008423 | EN50155 M12 PoE++ Switch
Send your request through our inquiry form with the part number, quantity, list of connected PoE devices and their power class, supply voltage available on site, and whether you need managed features. Seven Star LLC will confirm the exact SKU and return a quotation with availability.
Related Products
- SCALANCE XC-100
- Winsonic NE10003-208423 – EN50155 IP68 M12 PoE++ Switch
- Winsonic NE22006-101111 4G Industrial Router
- Hirschmann RS30 Industrial Managed Ethernet Switch
- Cisco Catalyst C9500-40X-E Switch (40x10G SFP+)
- Huawei MA5616 AC Chassis with CCUB Main Control Board and GP1A Uplink
Also available: Winsonic WSFP-C8-S53-20Di-F Gigabit Ethernet SFP Transceiver · Winsonic NE24002-101313 Industrial 4G Edge Computing Gateway · Winsonic RM2705-QF30L0 27″ Rack Mount 4K Monitor · Winsonic PZB32014-QF30L0-CB0M0C 32″ Zero Bezel Panel PC
How the Winsonic NE10005-008423 works
The switch receives Ethernet frames on its M12 ports and forwards them to the right port. It needs no configuration, so it works as soon as it is powered and cabled. Eight of the ports also supply PoE power to connected devices.
Where the Winsonic NE10005-008423 is used
- Rolling stock networks
- Wayside cabinets
- Tunnel and depot cabinets
- Crane and port cameras
- Outdoor surveillance
Selection checklist for the Winsonic NE10005-008423
- Unmanaged or managed switch
- Number of ports
- Connector type
- PoE budget per port
- Total PoE power
- Supply voltage
- Ingress protection
- Vibration exposure
Installation, commissioning and maintenance notes for the Winsonic NE10005-008423
Mount the switch on a firm surface in the cabinet or vehicle. Use M12 X-coded cables on all copper ports. Connect the power supply. Check the link lights and the PoE devices after power-up. Inspect the M12 connectors at regular intervals.
Requesting a quotation for the Winsonic NE10005-008423
Please send the port count, the PoE load and the supply voltage. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
Winsonic NE10005-008423 switch type
It is an unmanaged industrial switch.
Winsonic NE10005-008423 port count
It has 10 copper ports.
Winsonic NE10005-008423 port speed
The ports run at 10/100/1000 Mbps.
Winsonic NE10005-008423 connectors
The ports use M12 X-coded female connectors.
Winsonic NE10005-008423 connector lock
M12 connectors lock mechanically and stay sealed in high vibration.
Winsonic NE10005-008423 PoE ports
Eight ports are PoE downlink ports.
Winsonic NE10005-008423 PoE power
PoE power runs up to 15 W, 30 W or 90 W per port.
Winsonic NE10005-008423 PoE++ cameras
The PoE++ ports can power PTZ cameras.
Winsonic NE10005-008423 network surge
Network ports have surge protection of 6 kV common mode.
Winsonic NE10005-008423 power surge
Power ports have surge protection of 4 kV common mode.
Winsonic NE10005-008423 housing
The housing is rated IP65.
Winsonic NE10005-008423 family
It belongs to the Winsonic rail switch family.
Winsonic NE10005-008423 other part numbers
Other family switches, such as the NE10003-208423, carry different part numbers.
Winsonic NE10005-008423 managed functions
Confirm the part number first if you need VLAN, QoS, SNMP or ring redundancy.
Winsonic NE10005-008423 CCTV use
It links CCTV cameras on board vehicles.
Winsonic NE10005-008423 passenger information
It links passenger information systems.
Winsonic NE10005-008423 Wi-Fi use
It links Wi-Fi access points.
Winsonic NE10005-008423 edge networking
It suits oil and gas, utility and industrial sites with dust and vibration.
Switch records for the Winsonic NE10005-008423
Record the port map, the PoE devices and the installation date.
Choosing the right Winsonic NE10005-008423 power plan
Choose the supply from the total PoE power of the connected devices.
Other Models in the Winsonic NE1000x EN50155 M12 Switches Range
Seven Star LLC supplies models from the Winsonic NE1000x EN50155 M12 Switches range in Oman and the GCC. Compare the related models below and request a quote for the one that matches your application.
| Model | Category | |
|---|---|---|

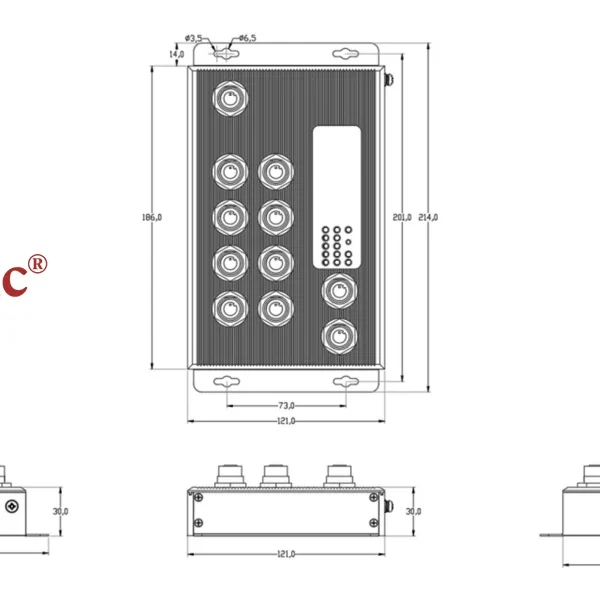

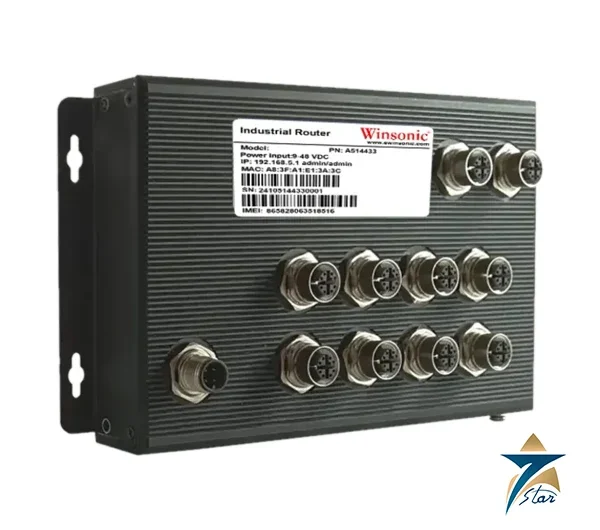

| Winsonic NE10001-20842B – IP68 EN50155 10G L2 Managed M12 PoE++ Switch | Industrial Communications | View details |
| Winsonic NE10002-208423 – IP68 EN50155 L2 Managed M12 PoE++ Switch | Industrial Communications | View details |

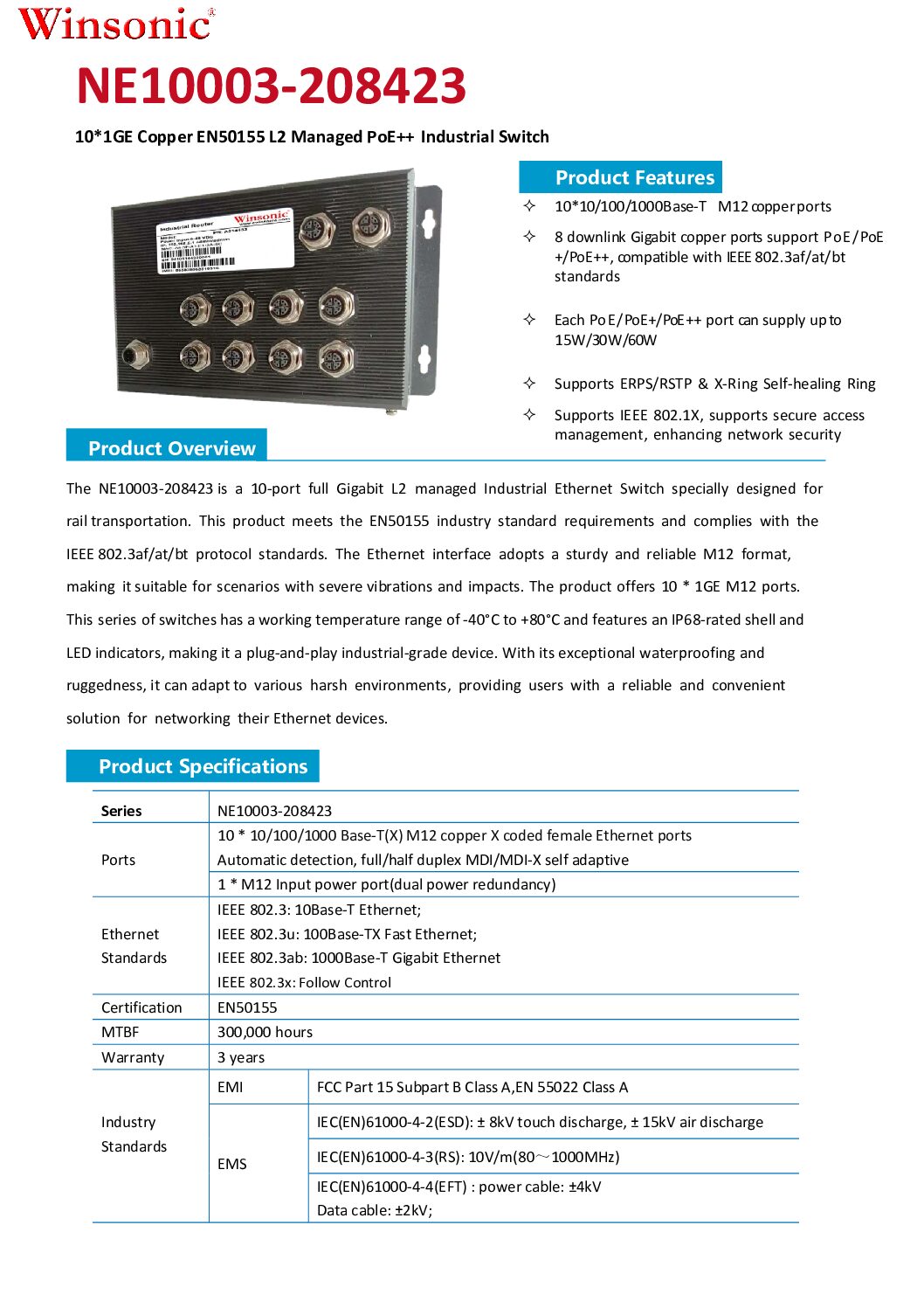

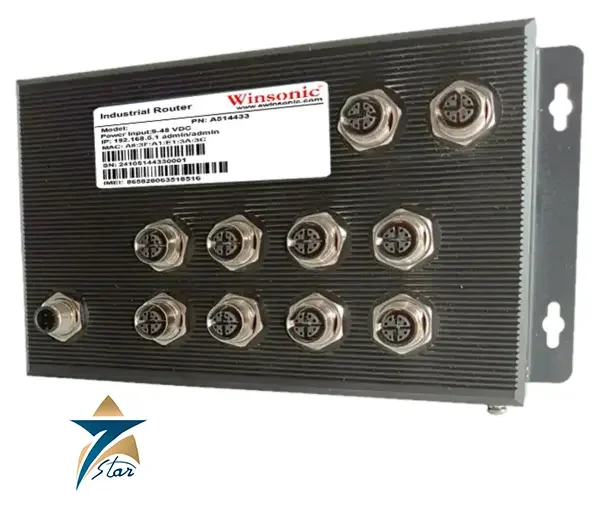

| Winsonic NE10003-208423 – EN50155 IP68 M12 PoE++ Switch | Industrial Communications | View details |
| Winsonic NE10004-00842B – EN50155 IP65 Unmanaged 10G M12 PoE++ Switch | Industrial Communications | View details |
| Winsonic NE10005-008423 | EN50155 M12 PoE++ Unmanaged Switch | Industrial Communications | You are viewing this model |
| Winsonic NE10006-004111 | EN50155 IP68 5-Port M12 PoE+ Switch | Industrial Communications | View details |
Datasheets & Documents

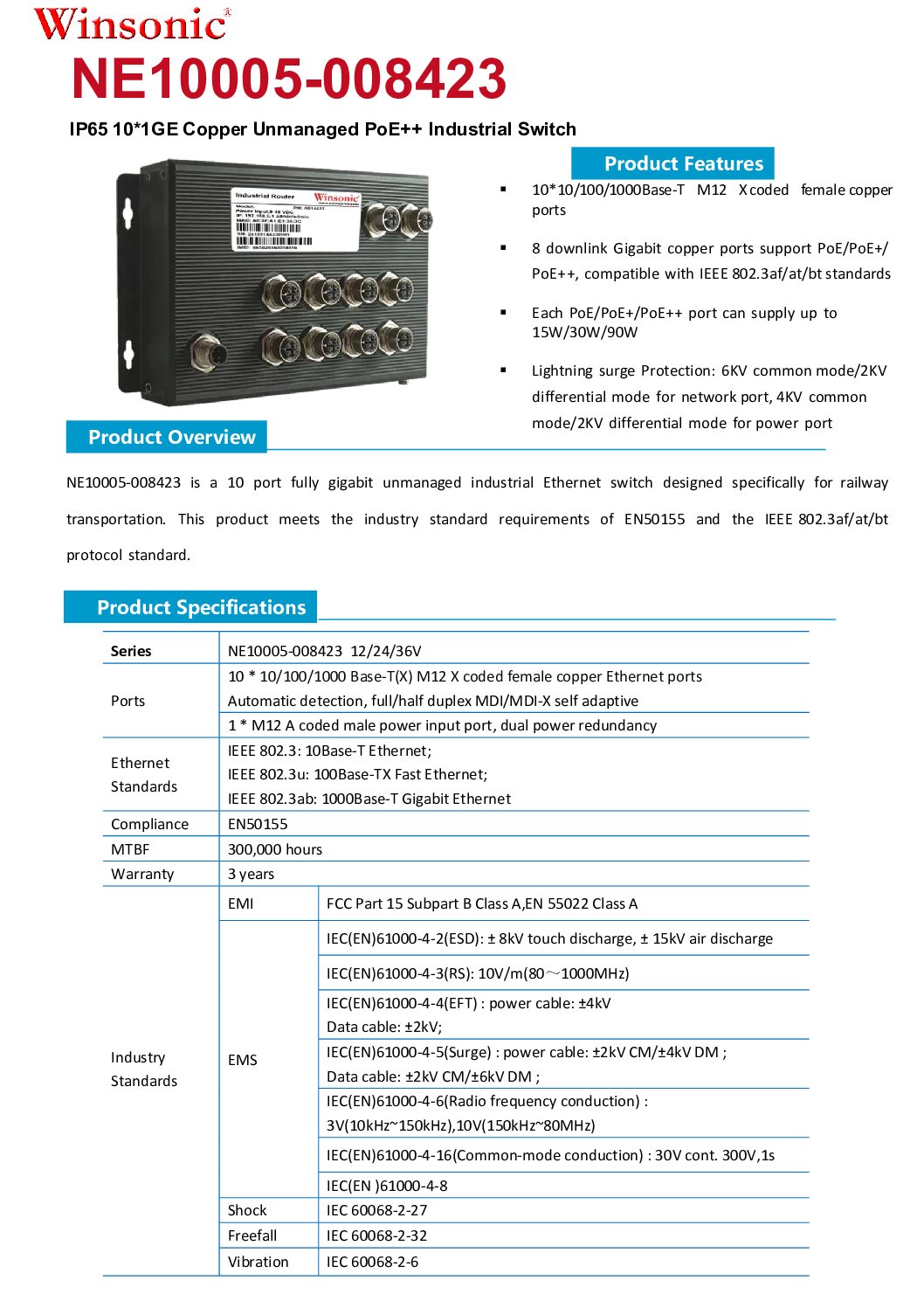

- Datasheet Winsonic NE10005-008423 Datasheet Download
Reviews (0)
About brand
Rail-grade Ethernet switches with M12 connectors, industrial cellular routers and panel PCs are the Winsonic products buyers ask us for most. Winsonic is known as a maker of industrial LCD monitors and touch displays, and the products listed here add networking and computing hardware for places where office equipment does not survive: trains and buses, roadside cabinets, pump stations and factory floors.
Seven Star LLC is the Winsonic agency for Oman and the GCC and lists Winsonic EN 50155 switches, 4G and 5G routers and gateways, SFP transceivers, panel PCs and rack mount monitors.
Winsonic product families
The M12 switches on this page are specified to EN 50155, the standard for electronic equipment on rail vehicles. Listed models include the L2 managed NE10002 and the NE10003 in IP68 housings, the unmanaged NE10004 with 10G ports and IP65 sealing, the unmanaged NE10005 and the 5-port IP68 NE10006, with PoE+ or PoE++ ports depending on the model. On the cellular side the listing covers NE24 series industrial cellular routers and edge gateways, the NE20001 vehicle-grade 5G transit gateway and the NE31001 outdoor LTE-A router. WSFP Gigabit SFP transceivers provide the fiber uplinks. Computing and display products include the PZB zero bezel panel PC and the RM rack mount monitor, next to the flush mount and zero bezel LCD monitors Winsonic builds for industrial use.
Where Winsonic equipment is used
Typical uses are on-board networks for trains, metro cars and buses, wayside cabinets, traffic management, remote pump stations and water plants, energy metering at unmanned sites, and machine monitoring and operator stations in factories.
Ordering Winsonic switches and routers: what we need
Send the complete part number, including the digits after the hyphen, because they separate variants of the same base model. Where you are still selecting, give us:
- port count, port speed and connector type (M12 coding or RJ45)
- PoE power needed per port and the supply voltage available
- managed or unmanaged operation, and the IP rating required
- for routers: mobile operator, SIM count, serial or Ethernet interfaces
- for panel PCs: screen size, touch type, processor and mounting
Browse Winsonic products by category: Industrial Communications, Industrial Computer, Human Machine Interface (HMI) Displays.
Related products
Frequently Asked Questions
Q1. Is NE10005-008423 suitable for rolling stock?
It belongs to the Winsonic EN 50155 switch family for rolling stock and has M12 connectors and an IP65 housing. Confirm EN 50155 compliance of this part number at quotation.
Q2. How much power can the PoE++ ports supply?
This model supports IEEE 802.3bt (PoE++) on downlink ports; per-port maximum and total power budget depend on exact SKU. Share your load list—we’ll validate it.
Q3. What redundancy features are available?
This part is an unmanaged switch and does not list ring protocols such as ERPS, RSTP or X-Ring. For ring redundancy, confirm a managed part number with us before ordering.
Q4. What management functions are provided?
None. This part is an unmanaged switch without a management interface. For VLAN, QoS or SNMP, confirm a managed part number with us before ordering.
Q5. Operating temperature and power input?
The operating temperature range and supply voltage are not stated on the Winsonic product page. Send the site conditions and we confirm them from the datasheet at quotation.
